HydroCut (5900543) - Ferris HydroCut Series 32" Walk-Behind Mower, 15hp Kawasaki 32" Mower Deck - Housing, Spindles, Blades & Pulleys Parts Diagram

HydroCut Series 32" Walk-Behind Mower, 15hp Kawasaki

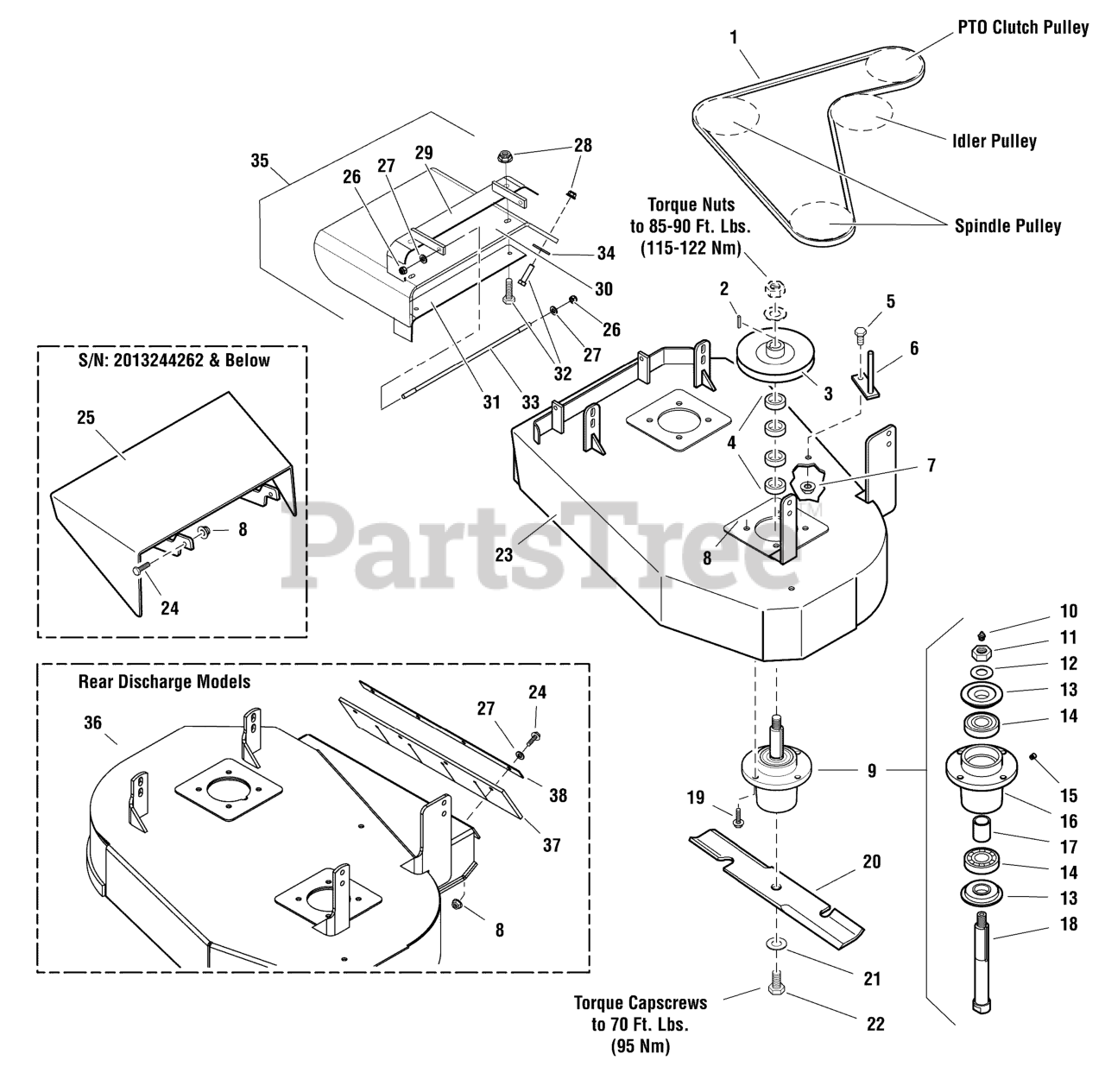

32" Mower Deck - Housing, Spindles, Blades & Pulleys Parts Diagram

  • Title

1

Ferris 5022918

BELT
(Superseded to 5022918SM)

$48.99

$

Usually ships in 2-12 days

0

2

Ferris 5050407X8

KEY, 1/4 SQ X 1
(Superseded to 5050407X8SM)

$3.99

$

In Stock, only 1 left!

0

3

Ferris 5047638

SPINDLE PULLEY
(Superseded to 5047638SM)

$57.99

$

Usually ships in 2-12 days

0

4

Ferris 5041476

SPACER, 1.02 X 1.56 X .50
(Superseded to 5041476SM)

$5.49

$

In Stock, only 4 left!

0

5

Ferris 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, Qty 6

0

6

Ferris 5047777B

BELT GUIDE

$23.99

$

Usually ships in 2-12 days

0

7

Ferris 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0

8

Ferris 5025392

NUT, 5/16-18 Hex Nylock Flange
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

9

Ferris 5061096

SPINDLE ASSM, ALUMINUM, LONG SHAFT
(Superseded to 5061096SM)

Note: (Includes Ref No. 10 - 18)

$243.99

$

Usually ships in 2-12 days

0

10

Ferris 5023329

GREASE FITTING
(Superseded to 5023329SM)

$5.49

$

In Stock, only 4 left!

0

11

Ferris 5025405

NUT, 3/4-16 Hex
(Superseded to 5025405SM)

$3.99

$

In Stock, Qty 20+

0

12

Ferris 5025406

WASHER, 3/4 BELLEVILLE
(Superseded to 5025406FS)

$3.99

$

Usually ships in 2-12 days

0

13

Ferris 5049793

TRASH SHIELD
(Superseded to 5049793SM)

$16.99

$

In Stock, only 4 left!

0

14

Ferris 5023330

BEARING
(Superseded to 5023330SM)

$23.99

$

In Stock, Qty 20+

0

15

Ferris 5023296

RELIEF VALVE
(Superseded to 5023296SM)

$7.49

$

In Stock, only 1 left!

0

16

Ferris 5061097

SPINDLE HOUSING

$

$

Currently unavailable

17

Ferris 5061099

SPACER, 1.00 X 1.25 X 1.75
(Superseded to 5061099SM)

$11.99

$

In Stock, only 4 left!

0

18

Ferris 5061100

SPINDLE SHAFT
(Superseded to 5061100SM)

$75.99

$

In Stock, Qty 7

0

19

Ferris 5023156

BOLT, Flange Head, 5/16-18 x 1-1/4
(Superseded to 5023156SM)

$3.99

$

In Stock, only 1 left!

0

20

Ferris 5020843X2

MOWER BLADE, 16-1/4"

Note: (SET OF TWO)

$53.99

$

Usually ships in 2-12 days

0

21

Ferris 5025159

WASHER, 5/8" USS

$

$

Currently unavailable

22

Ferris 5025320X14

BOLT, 5/8-11 X 1-3/4 GD8
(Superseded to 5025320X14FS)

$3.49

$

Usually ships in 2-12 days

0

23

Ferris 5600235

DECK SHELL W/DECALS, 32 HYDROCUT

Note: (Includes safety decals)

$1096.99

$

Usually ships in 2-12 days

0

24

Ferris 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

25

Ferris 5047724B

WELD, DISCHARGE CHUTE

Note: (S/N: 2013244262 & Below)

$119.99

$

Usually ships in 2-12 days

0

26

Ferris 5025045

NUT, 5/16-24 HEX NYLON LOCK
(Superseded to 5025045SM)

$3.49

$

In Stock, Qty 11

0

27

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

28

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

29

Ferris 5404257B

BRACKET, CHUTE SUPPORT - RED

Note: (S/N: 2013244263 & Above)

$43.99

$

Usually ships in 2-12 days

0

30

Ferris 5404335

CHUTE, RUBBER

Note: (S/N: 2013244263 & Above)

$165.99

$

Usually ships in 2-12 days

0

31

Ferris 5404258A

BRACKET, CHUTE SUPPORT - BLK

Note: (S/N: 2013244263 & Above)

$12.99

$

Usually ships in 2-12 days

0

32

Ferris 5025013X12

BOLT, 3/8-16 X 1-1/2" GD5 CZ
(Superseded to 5025013X12SM)

$3.99

$

Usually ships in 2-12 days

0

33

Ferris 5045914

ROD, CHUTE PIVOT

Note: (S/N: 2013244263 & Above)

$

$

Currently unavailable

34

Ferris 5100548

WASHER, .390 X 1.50 X .109, YZ
(Superseded to 5100548SM)

Note: (S/N: 2013244263 & Above)

$4.49

$

Usually ships in 2-12 days

0

35

ORDER INDIVIDUAL PIECES TO SERVICE DISCHARGE CHUTE COMPONENTS

Note: (Includes 28 - 32 & 34)

$

$

Not available

36

Ferris 5405152B

WELD, MOWER DECK, 32RD - RED

Note: (Rear Discharge Models)

$

$

Currently unavailable

37

Ferris 5405149

FLAP, RUBBER, 32RD

Note: (Rear Discharge Models)

$53.99

$

Usually ships in 2-12 days

0

38

Ferris 5405260B

PLATE, RETAINING, 32RD - RED

Note: (Rear Discharge Models)

$9.49

$

Usually ships in 2-12 days

0
