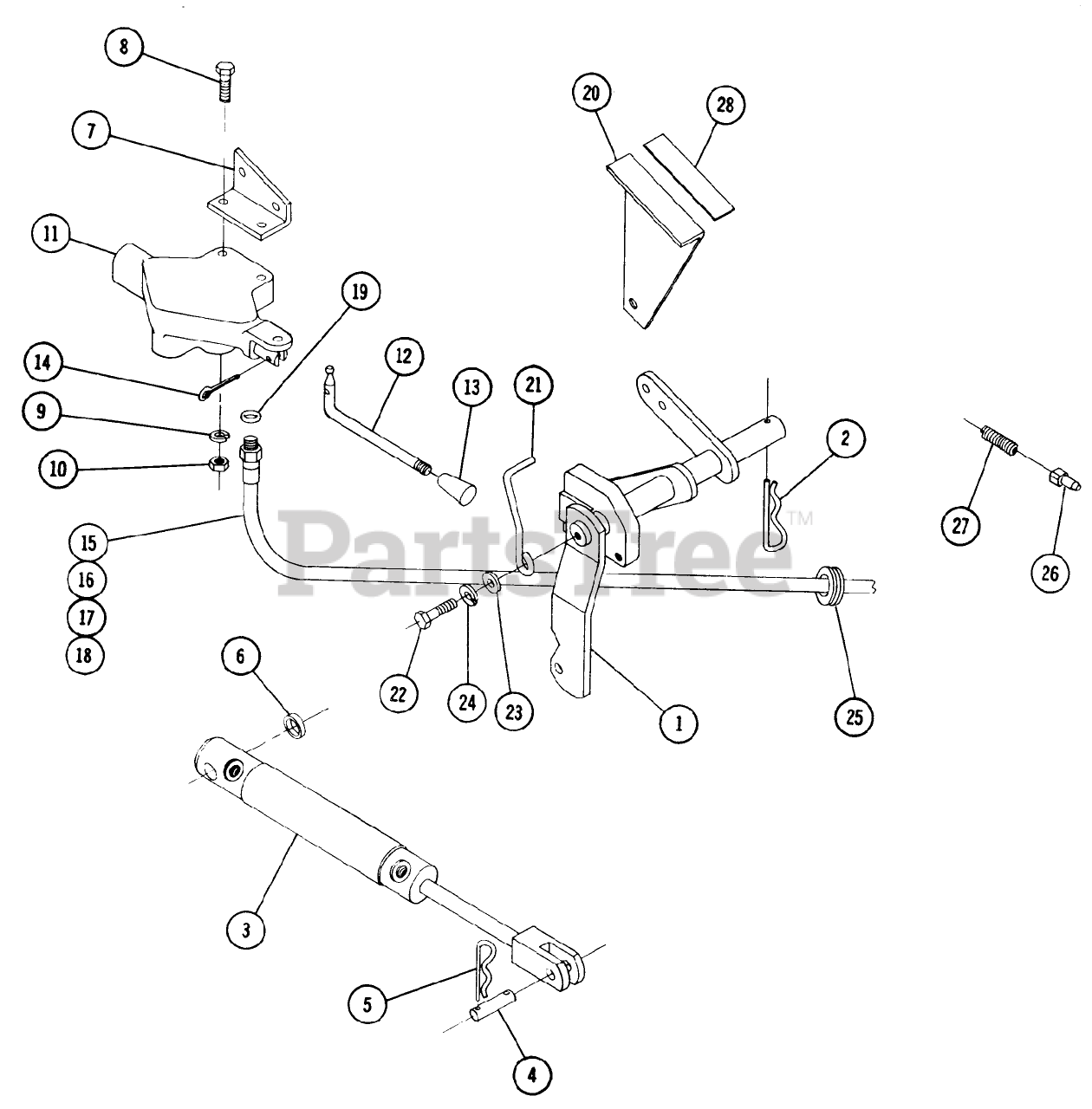

HY-6 - Toro Hydraulic Lift (1966) PARTS LIST HY-6 Parts Diagram

Hydraulic Lift

PARTS LIST HY-6 Parts Diagram

  • Title

1

Toro 6615

Lift Arm

$

$

Not available

2

Toro 933506

Hairpin
(Superseded to 9335064)

$2.49

$

In Stock, Qty 11

0

3

Toro 6618

Cylinder
(Superseded to 105254)

$

$

Not available

4

Toro 6619

PIN

$

$

Not available

5

Toro 933504

Hairpin
(Superseded to 9335044)

$1.49

$

In Stock, Qty 13

0

6

Toro 4064

Spacer
(Superseded to 703269)

$122.99

$

Usually ships in 3-6 days

0

7

Toro 6620

SUPPORT-VALVE

$

$

Not available

8

Toro 908006-4

Bolt 1/4 20 x 1 1/4

$

$

Currently unavailable

9

Toro 920081-4

Lockwasher

$

$

Currently unavailable

10

Toro 915111-6

Nut-Nylok

$

$

Currently unavailable

11

Toro 6621

Valve

$

$

Not available

12

Toro 6622

VALVE LEVER

$

$

Not available

13

Toro 6623

Knob

$

$

Not available

14

Toro 932008-5

Cotter Pin

$

$

Currently unavailable

15

Toro 6624

Ass-y. Hose-29"
(Superseded to 101420)

$

$

Not available

16

Toro 6625

Ass-y. Hose-20"
(Superseded to 101421)

$

$

Not available

17

Toro 6626

Ass-y. Hose-14-1/2"
(Superseded to 104983)

$

$

Not available

18

Toro 6627

Hose-111/2
(Superseded to 101423)

$

$

Not available

19

Toro 970126

"O" Ring
(Superseded to 973310)

$5.99

$

In Stock, only 1 left!

0

20

Toro 6628

Indicator Plate

$

$

Not available

21

Toro 6629

Arm

$

$

Currently unavailable

22

Toro 908017-4

Bolt 5/16-18 x

$

$

Currently unavailable

23

Toro 920008-4

Washer

$

$

Currently unavailable

24

Toro 920082-4

Lockwasher

$

$

Currently unavailable

25

Toro 5439

Grommet

$

$

Not available

26

Toro 6632

Cone

$

$

Not available

27

Toro 6631

Spring

$

$

Not available

28

Toro 6630

Decal

$

$

Currently unavailable
