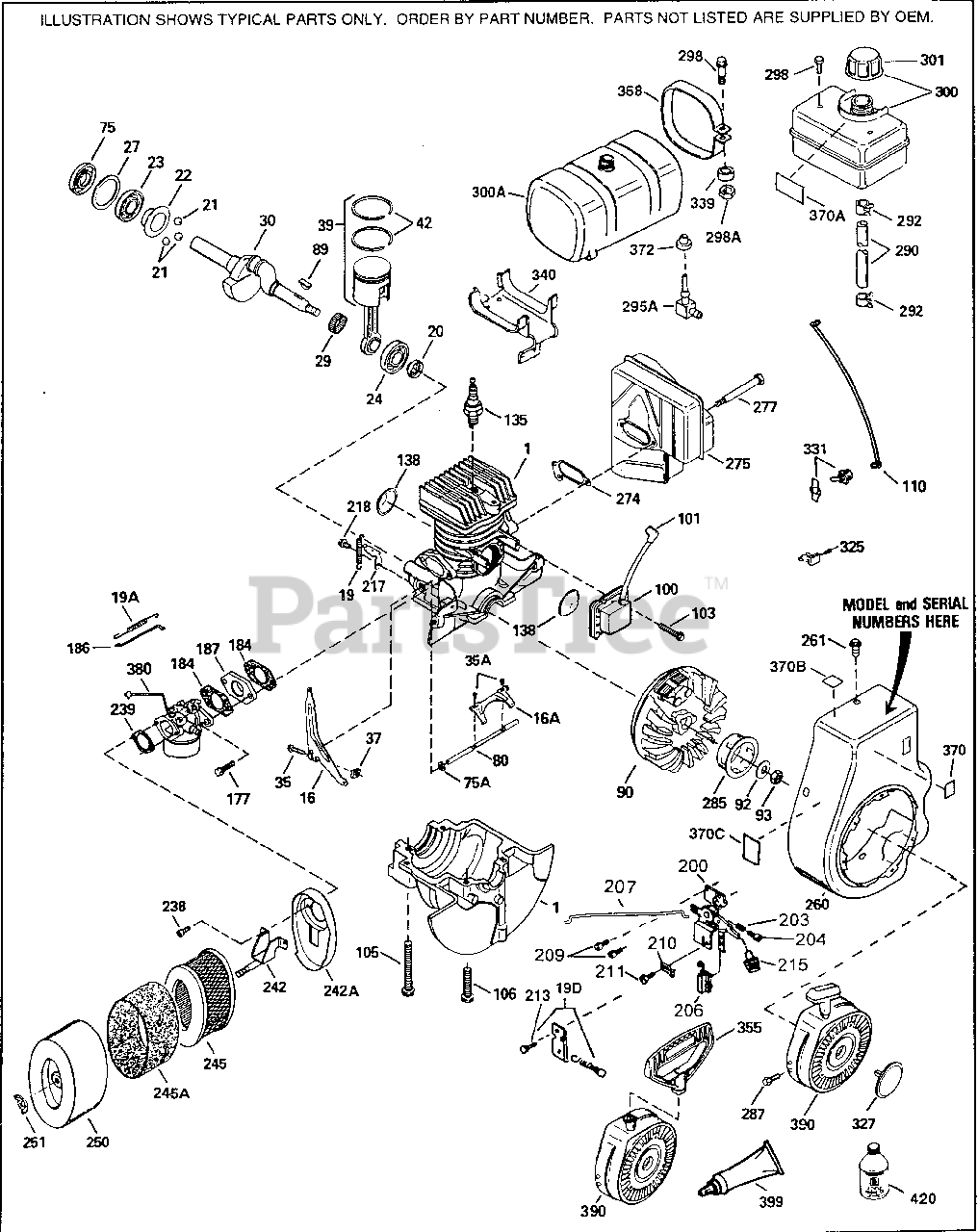

HXL840-8603A - Tecumseh Engine Engine Parts List Parts Diagram

Engine

Engine Parts List Parts Diagram

  • Title

1

Tecumseh 250300

"CYLINDER
(Superseded to 250300A)

$

$

Not available

16

Tecumseh 490317

Governor Lever

$

$

Not available

16A

Tecumseh 490304

Governor Follower Arm

$5.49

$

Usually ships in 3-12 days

0

19D

Tecumseh 33857

Extension Spring Ass'y. (Incl. 213)

$7.49

$

In Stock, only 1 left!

0

19A

Tecumseh 490318

Backlash Spring

$5.49

$

In Stock, Qty 9

0

19

Tecumseh 34663

Speed Control Spring

$1.99

$

In Stock, Qty 5

0

20

Tecumseh 510340

Oil Seal

$5.49

$

In Stock, only 1 left!

0

21

Tecumseh 570673

Ball Bearing

$1.99

$

Usually ships in 3-12 days

0

22

Tecumseh 510338

Slide Ring

$3.99

$

Usually ships in 3-12 days

0

23

Tecumseh 530158

Ball Bearing

$26.99

$

In Stock, only 1 left!

0

24

Tecumseh 530161

Ball Bearing

$22.99

$

In Stock, only 1 left!

0

27

Tecumseh 530159

Bearing Retainer

$1.99

$

Usually ships in 3-12 days

0

29

Tecumseh 530164

Bearing Strip (31 Needles)

$13.99

$

Usually ships in 3-12 days

0

30

Tecumseh 290661

Crankshaft

$

$

Currently unavailable

35

Tecumseh 29826

Screw, 10-32 x 3/4"

$1.99

$

In Stock, only 4 left!

0

35A

Tecumseh 650961

Screw, 4-40 x 1/4"
(Superseded to 650506)

$1.49

$

In Stock, Qty 16

0

37

Tecumseh 29216

Lock Nut, 10-32

$1.99

$

In Stock, only 3 left!

0

39

Tecumseh 310277B

Piston & Rod Ass'y. (Incl. 29 & 42)
(Superseded to 310291A)

$106.99

$

Usually ships in 3-12 days

0

42

Tecumseh 310278

Ring Set

$

$

Not available

75A

Tecumseh 510337

Oil Seal

$3.99

$

Usually ships in 3-12 days

0

75

Tecumseh 510339

Oil Seal

$7.49

$

Usually ships in 3-12 days

0

80

Tecumseh 490305

Governor Shaft

$11.99

$

Usually ships in 3-12 days

0

89

Tecumseh 611107

Flywheel Key

$3.49

$

Usually ships in 3-12 days

0

90

Tecumseh 611144

Flywheel
(Superseded to 611190)

$

$

Not available

92

Tecumseh 650815

Belleville Washer

$1.99

$

In Stock, Qty 10

0

93

Tecumseh 650816

Flywheel Nut

$4.49

$

In Stock, Qty 6

0

100

Tecumseh 34443A

Solid State Ignition
(Superseded to 34443D)

$44.99

$

Usually ships in 3-12 days

0

101

Tecumseh 610118

Spark Plug Cover

$6.49

$

In Stock, only 2 left!

0

103

Tecumseh 650814

Screw, Torx T-15, 10-24 x 1"
(Superseded to 651007)

$1.99

$

In Stock, only 4 left!

0

105

Tecumseh 650892

Screw, 5/16-18 x 2-3/16"

$1.99

$

In Stock, only 1 left!

0

106

Tecumseh 650891

Screw, 5/16-18 x 1-5/8"

$

$

Not available

110

Tecumseh 611072

Ground Wire

$4.99

$

Usually ships in 3-12 days

0

135

Tecumseh 611049

Resistor Spark Plug (RCJ8Y)

$4.99

$

In Stock, Qty 20+

0

138

Tecumseh 570683

Port Cover

$3.99

$

Usually ships in 3-12 days

0

177

Tecumseh 650959

Screw, 5/32 Allen, 1/4-20 x 1"

$1.99

$

In Stock, Qty 8

0

184

Tecumseh 510326A

Carburetor Gasket

$1.49

$

In Stock, only 3 left!

0

186

Tecumseh 490319

Governor Link

$1.99

$

In Stock, only 4 left!

0

187

Tecumseh 570438A

Spacer

$3.99

$

In Stock, only 1 left!

0

200

Tecumseh 570710

Control Bracket Incl. 19D, 203, 204,& 213

$

$

Not available

203

Tecumseh 31342

Compression Spring

$5.99

$

In Stock, only 1 left!

0

204

Tecumseh 650549

Screw, 5-40 x 7/16"
(Superseded to 651029)

$1.99

$

In Stock, only 2 left!

0

207

Tecumseh 490323

Throttle Link

$

$

Not available

209

Tecumseh 650821

Screw, 10-32 x 1/2"

$1.99

$

In Stock, only 3 left!

0

210

Tecumseh 27793

Conduit Clip

$1.99

$

In Stock, only 2 left!

0

211

Tecumseh 650837

Screw, 10-32 x 1/4"

$1.99

$

In Stock, only 1 left!

0

213

Tecumseh 28942

Screw, 10-32 x 3/8"

$1.49

$

In Stock, only 4 left!

0

238

Tecumseh 28820

Screw, 10-32 x 1/2"
(Superseded to 651081)

$4.49

$

In Stock, only 3 left!

0

239

Tecumseh 35815

Air Filter Gasket

$1.49

$

In Stock, Qty 20+

0

242A

Tecumseh 33266

Air Cleaner Bracket Base

$9.49

$

In Stock, only 1 left!

0

242

Tecumseh 33267

Air Cleaner Bracket

$7.49

$

In Stock, only 1 left!

0

245A

Tecumseh 35881

Poly Pre-Filter (also available in Pa ckaged Part #740027B)

$5.49

$

Usually ships in 3-12 days

0

245

Tecumseh 33268

Air Filter (Paper) also available in Packaged Part #740027B

$13.99

$

In Stock, Qty 7

0

250

Tecumseh 33269A

Air Cleaner Cover

$19.99

$

In Stock, only 1 left!

0

251

Tecumseh 650513

Wing Nut, 1/4-20
(Superseded to 650825)

$1.99

$

In Stock, only 1 left!

0

260

Tecumseh 350456

Blower Housing

$

$

Not available

261

Tecumseh 650894

Screw, 5/16-18 x 5/8"

$1.99

$

Usually ships in 3-12 days

0

274

Tecumseh 510343A

Exhaust Gasket

$3.99

$

In Stock, only 1 left!

0

275

Tecumseh 390319

Muffler

$56.99

$

In Stock, only 1 left!

0

277

Tecumseh 650893

Screw, 5/16-18 x 3-13/64"

$5.49

$

In Stock, only 2 left!

0

285

Tecumseh 34449

Starter Cup
(Superseded to 34449A)

$10.99

$

Usually ships in 3-12 days

0

287

Tecumseh 650926

Screw, 8-32 x 21/64"

$1.49

$

In Stock, only 3 left!

0

290

Tecumseh 29774

Fuel Line (8.62")

$34.99

$

In Stock, Qty 6

0

292

Tecumseh 26460

Fuel Line Clamp

$1.49

$

In Stock, Qty 20+

0

295A

Tecumseh 33395

Fuel Fitting

$13.99

$

Usually ships in 3-12 days

0

298

Tecumseh 650664

Screw, 1/4-20 x 1-19/32"

$1.99

$

In Stock, Qty 9

0

298A

Tecumseh 650456

Nut

$1.99

$

In Stock, only 1 left!

0

300

Tecumseh 34826B

Fuel Tank

$99.99

$

Usually ships in 3-12 days

0

301

Tecumseh 410259A

Fuel Cap
(Superseded to 410286)

$

$

Not available

325

Tecumseh 29443

Wire Clip

$1.99

$

In Stock, Qty 5

0

327

Tecumseh 35392

Starter Plug

$1.99

$

Usually ships in 3-12 days

0

339

Tecumseh 35038

Spacer

$1.99

$

Usually ships in 3-12 days

0

340

Tecumseh 34823

Fuel Tank Bracket

$

$

Not available

368

Tecumseh 33980

Fuel Tank Strap

$9.49

$

Usually ships in 3-12 days

0

370A

Tecumseh 35977

Caution Decal

$2.49

$

In Stock, Qty 6

0

370B

Tecumseh 550230A

Fuel Mix Decal

$

$

Currently unavailable

370

Tecumseh 550223

Name Decal

$

$

Not available

372

Tecumseh 33679

Bushing

$3.49

$

In Stock, only 2 left!

0

380

Tecumseh 632683

Carburetor (Incl. 184)

$88.99

$

Usually ships in 3-12 days

0

390

Tecumseh 590688

Rewind Starter
(Superseded to 590732A)

$62.99

$

In Stock, only 1 left!

0

399

Tecumseh 510334

Gasket Eliminator (Loctite 515)

$12.99

$

Usually ships in 3-12 days

0

420

Tecumseh 730227D

2-Cycle Oil with Fuel Stabilizer - 8 oz.

$3.99

$

In Stock, Qty 5

0
