HXL840-8602 - Tecumseh Engine Engine Parts List Parts Diagram

Engine

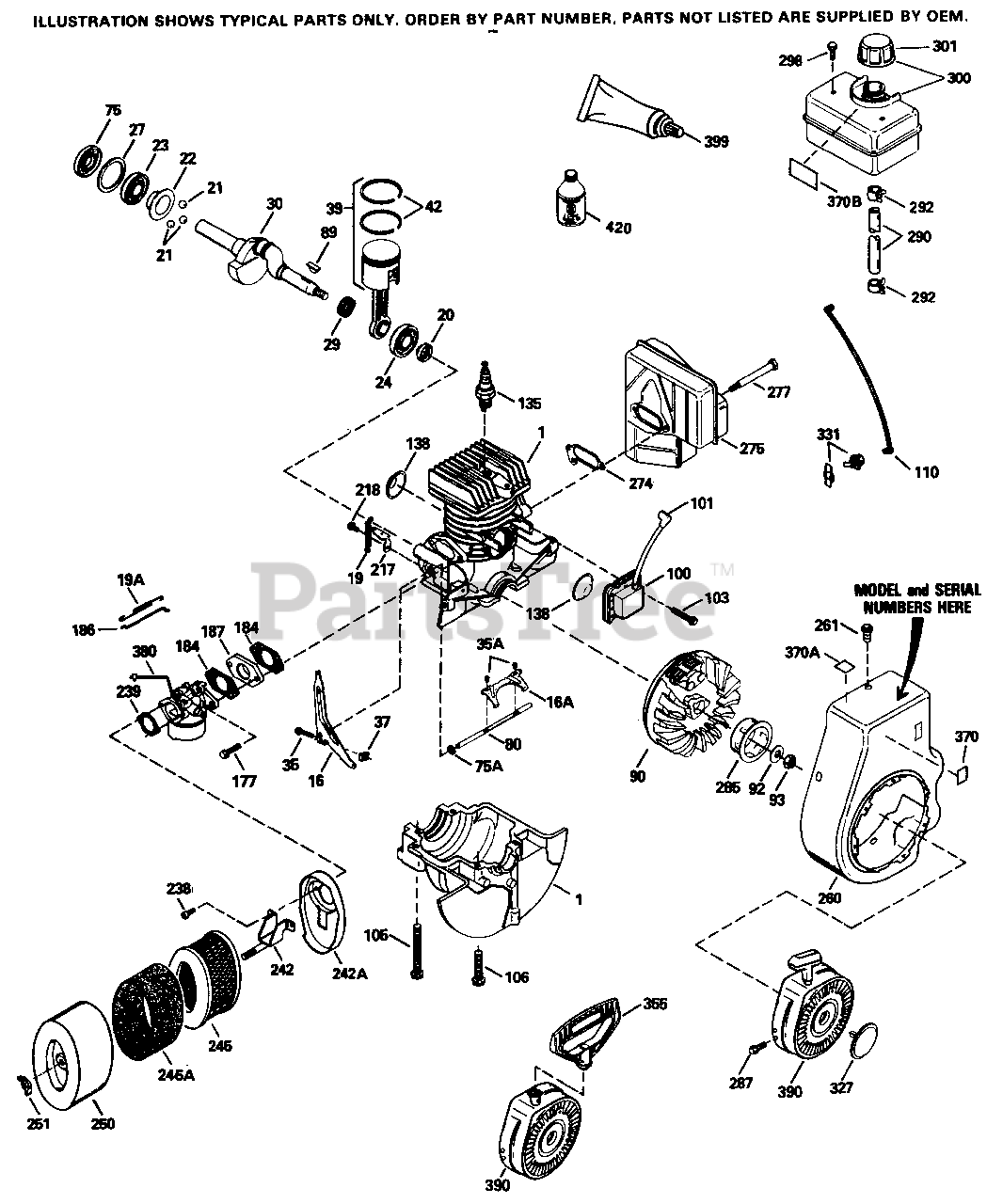

Engine Parts List Parts Diagram

  • Title

1

Tecumseh 250300

"CYLINDER 06,138)
(Superseded to 250300A)

$

$

Not available

16

Tecumseh 490317

Governor Lever

$

$

Not available

16A

Tecumseh 490304

Governor Follower Arm

$5.49

$

Usually ships in 3-12 days

0

19A

Tecumseh 490318

Backlash Spring

$5.49

$

In Stock, Qty 9

0

19

Tecumseh 490320

Governor Spring
(Superseded to 570271)

$

$

Not available

20

Tecumseh 510340

Oil Seal (Flywheel end)

$5.49

$

In Stock, only 1 left!

0

21

Tecumseh 570673

Ball

$1.99

$

In Stock, only 1 left!

0

22

Tecumseh 510338

Slide Ring

$3.99

$

Usually ships in 3-12 days

0

23

Tecumseh 530158

Ball Bearing (PTO end)

$26.99

$

In Stock, only 1 left!

0

24

Tecumseh 530161

Ball Bearing (Magneto end)

$22.99

$

In Stock, only 1 left!

0

27

Tecumseh 530159

Bearing Retainer

$1.99

$

Usually ships in 3-12 days

0

28

Tecumseh 510339

Oil Seal (PTO end)

$7.49

$

Usually ships in 3-12 days

0

29

Tecumseh 530164

Bearing Strip (31 needles)

$13.99

$

Usually ships in 3-12 days

0

30

Tecumseh 290633

Crankshaft

$

$

Currently unavailable

35

Tecumseh 29826

Screw, 10-32 x 3/4"

$1.99

$

In Stock, only 3 left!

0

37

Tecumseh 29216

Lock Nut, 10-32

$1.99

$

In Stock, only 2 left!

0

39

Tecumseh 310277B

Piston & Rod Assy. (Incl. 29 & 42)
(Superseded to 310291A)

$106.99

$

Usually ships in 3-12 days

0

42

Tecumseh 310278

Piston Ring Set

$

$

Not available

64

Tecumseh 650893

Muffler Screw, 5/16-18 x 3-13/64"

$5.49

$

In Stock, only 2 left!

0

75

Tecumseh 510337

Oil Seal

$3.99

$

Usually ships in 3-12 days

0

80

Tecumseh 490305

Governor Shaft

$11.99

$

Usually ships in 3-12 days

0

89

Tecumseh 611107

Flywheel Key

$3.49

$

Usually ships in 3-12 days

0

90

Tecumseh 611144

Flywheel
(Superseded to 611190)

$

$

Not available

92

Tecumseh 650815

Belleville Washer

$1.99

$

In Stock, Qty 10

0

93

Tecumseh 650816

Flywheel Nut

$4.49

$

In Stock, Qty 6

0

100

Tecumseh 34443A

Solid State Assy. (Incl. 101)
(Superseded to 34443D)

$44.99

$

In Stock, only 3 left!

0

101

Tecumseh 610118

Spark Plug Cover

$6.49

$

In Stock, only 2 left!

0

103

Tecumseh 650814

Screw, 10-24 x 1"
(Superseded to 651007)

$1.99

$

In Stock, only 4 left!

0

105

Tecumseh 650892

Screw, 5/16-18 x 2-3/16"

$1.99

$

In Stock, only 1 left!

0

106

Tecumseh 650891

Screw, 5/16-18 x 1-5/8"

$

$

Not available

110

Tecumseh 611135

Ground Wire

$3.49

$

Usually ships in 3-12 days

0

135

Tecumseh 611049

Spark Plug (RCJ8Y)

$4.99

$

In Stock, Qty 20+

0

138

Tecumseh 570683

Port Cover

$3.99

$

Usually ships in 3-12 days

0

163

Tecumseh 650961

Screw, 4-40 x 1/4"
(Superseded to 650506)

$1.49

$

In Stock, Qty 14

0

177

Tecumseh 650959

Screw, 1/4-20 x 1"

$1.99

$

In Stock, Qty 8

0

184

Tecumseh 510326A

Carburetor Gasket

$1.49

$

In Stock, only 3 left!

0

186

Tecumseh 490319

Governor Link

$1.99

$

In Stock, only 4 left!

0

187

Tecumseh 570438A

Carburetor Spacer

$3.99

$

In Stock, only 1 left!

0

217

Tecumseh 570667A

Speed Control Lever

$1.99

$

Usually ships in 3-12 days

0

218

Tecumseh 650847

Screw, 8-32 x 1/2"

$1.99

$

In Stock, only 2 left!

0

222

Tecumseh 28820

Screw, 10-32 x 1/2"
(Superseded to 651081)

$4.49

$

In Stock, only 3 left!

0

239

Tecumseh 35815

Filter Base Gasket

$1.49

$

In Stock, Qty 20+

0

241

Tecumseh 33266

Air Cleaner Bracket

$9.49

$

In Stock, only 1 left!

0

242

Tecumseh 33267

Air Cleaner Base Bracket

$7.49

$

In Stock, only 1 left!

0

245

Tecumseh 33268

Air Filter (Paper) also available in Packaged Part #740027B

$13.99

$

In Stock, Qty 5

0

246

Tecumseh 35881

Poly Pre-Filter (also available in Pa ckaged Part #740027B)

$5.49

$

In Stock, only 1 left!

0

250

Tecumseh 33269A

Air Cleaner Cover

$19.99

$

In Stock, only 1 left!

0

251

Tecumseh 650513

Wing Nut, 1/4-20
(Superseded to 650825)

$1.99

$

In Stock, only 1 left!

0

260

Tecumseh 350447

BLOWER HSG

$

$

Not available

261

Tecumseh 650894

Screw, 5/16-18 x 5/8"

$1.99

$

Usually ships in 3-12 days

0

269

Tecumseh 510343A

Muffler Gasket

$3.99

$

In Stock, only 1 left!

0

275

Tecumseh 390327

Muffler

$

$

Currently unavailable

285

Tecumseh 34449

Starter Hub
(Superseded to 34449A)

$10.99

$

Usually ships in 3-12 days

0

287

Tecumseh 650884

Screw, 8-32 x 1/2"
(Superseded to 650926)

$1.49

$

In Stock, only 3 left!

0

290

Tecumseh 30705

Fuel Line (16" long)

$16.99

$

In Stock, only 4 left!

0

292

Tecumseh 26460

Fuel Line Clamp

$1.49

$

In Stock, Qty 20+

0

298

Tecumseh 650665

Screw, 1/4-15 x 7/8"

$1.99

$

In Stock, Qty 5

0

300

Tecumseh 35584

Fuel Tank (Incl. 292 & 301) (2 Quart)

$45.99

$

In Stock, only 3 left!

0

301

Tecumseh 410259A

Fuel Cap Assy.
(Superseded to 410286)

$

$

Not available

327

Tecumseh 35392

Starter Plug

$1.99

$

In Stock, Qty 5

0

331

Tecumseh 610650B

Toggle Switch

$21.99

$

In Stock, only 1 left!

0

355

Tecumseh 590574

Starter Handle (Mitten Grip) (also av ailable in Packaged Part #740053B) ( Not included with replacement starter , must order separately)

$5.49

$

In Stock, only 1 left!

0

370A

Tecumseh 35977

Decal, Caution

$2.49

$

In Stock, Qty 6

0

370B

Tecumseh 550230A

Decal, Fuel mix

$

$

Currently unavailable

370

Tecumseh 550223

Decal, Name

$

$

Not available

380

Tecumseh 632626

Carburetor (Incl. 184) (Refer to Divi sion 5, Section A, page A1-40 or Fich e 27A, Grid F-5 for breakdown)
(Superseded to 632624)

$109.99

$

Usually ships in 3-12 days

0

390

Tecumseh 590673

Rewind Starter Refer to Division 5, S ection C, page 34 or Fiche 27A, Grid G-9 for breakdown
(Superseded to 590732A)

$62.99

$

In Stock, only 1 left!

0

399

Tecumseh 510334

Gasket Eliminator (Use as required)

$12.99

$

Usually ships in 3-12 days

0

422

Tecumseh 730227D

2-Cycle Oil with Fuel Stabilizer - 8 oz.

$3.99

$

In Stock, Qty 5

0
