HX 16 (UT-18022-1B) - Homelite Hedge Trimmer Ignition - Starter - Clutch - Air Filter Parts Diagram

Hedge Trimmer

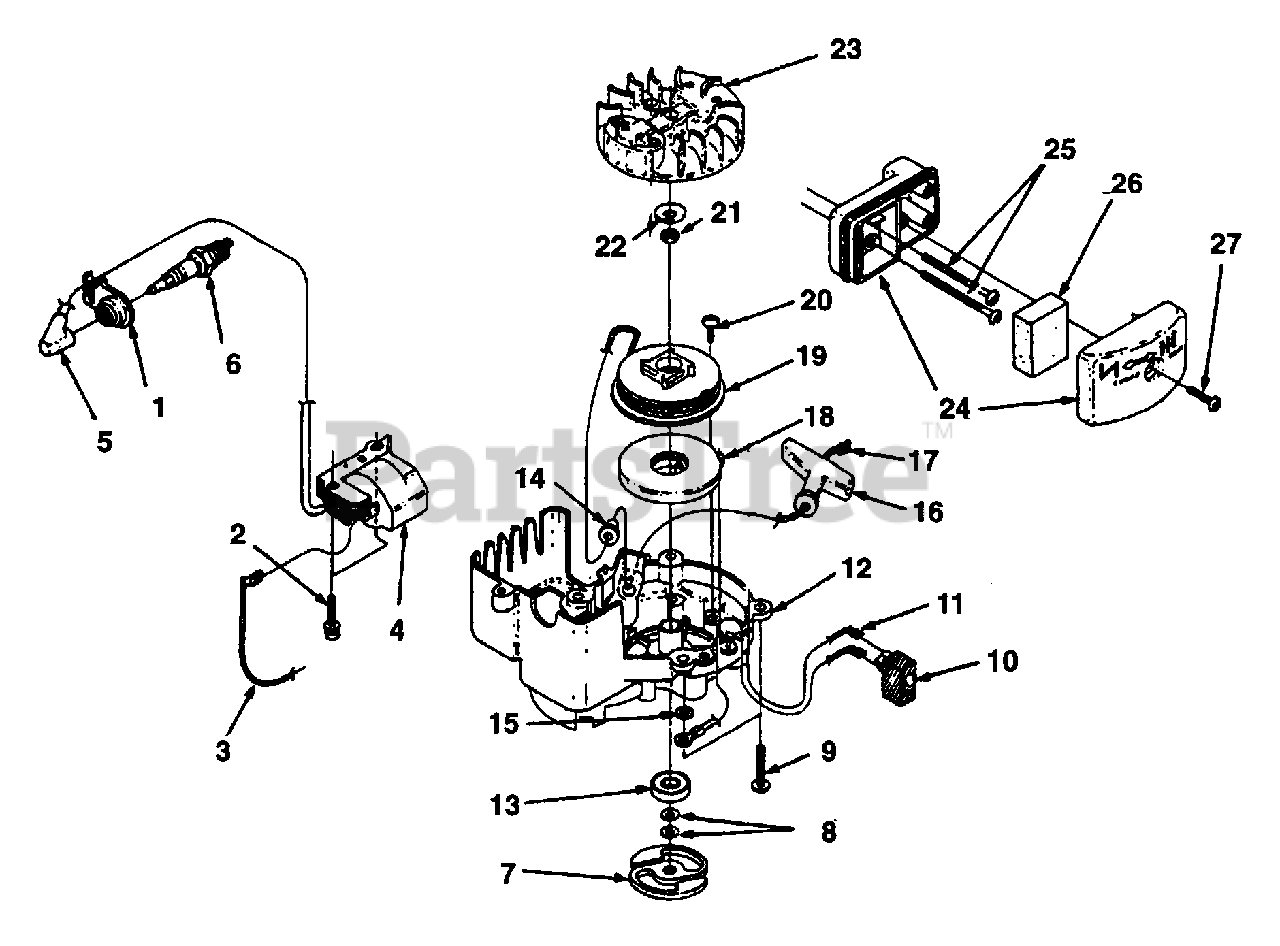

Ignition - Starter - Clutch - Air Filter Parts Diagram

  • Title

1

Homelite 01010A

SHIELD-Spark Plug

$

$

Not available

2

Homelite 82540

SCREW-Thread Form. (8-32 x 1")

Note: Torque Specs. 30-40 In/Lbs, 3.4-4.5 Nm

$2.49

$

Usually ships in 3-7 days

0

3

Homelite A00942

LEAD-Electrical

$

$

Not available

Homelite A04446

IGNITION KIT
(Superseded to 984873001)

$

$

Not available

4

Homelite 94711CS

MODULE-Ignition

$

$

Not available

5

Homelite A02597

SPARK PLUG BOOT KIT

$

$

Not available

6

Homelite 79252

SPARK PLUG (RDY-7Y)
(Superseded to UP03883)

Note: Torque Specs. 120-180 In/Lbs, 13.6-20.3 Nm

$3.49

$

In Stock, only 3 left!

0

7

Homelite 035881

CLUTCH "S"
(Superseded to UP06585)

$

$

Not available

8

Homelite 70788

WASHER-Belleville
(Superseded to UP06837)

$

$

Not available

9

Homelite 82538

SCREW-Taptite (10-24 x 3/4")

Note: Torque Specs. 40-50 In/Lbs, 4.5-5.6 Nm; Red 262 Locktite Required

$1.99

$

Usually ships in 3-7 days

0

10

Homelite 00941

SWITCH
(Superseded to 985703001)

$

$

Not available

11

Homelite 02497

SWITCH
(Superseded to 985703001)

Note: (HT171, HT19I, HT211)

$

$

Not available

11

Homelite A00943

LEAD-Ground

$

$

Not available

12

Homelite A08183A

HOUSING-Engine & Pulley

$

$

Not available

13

Homelite 98843

BEARING-Ball

$

$

Not available

14

Homelite 969811A

BUSHING-Starter

$

$

Not available

15

Homelite 84003

WASHER-Flat (#10)

$2.49

$

Usually ships in 3-7 days

0

16

Homelite 06598A

GRIP-Starter Rope
(Superseded to UP04276)

$

$

Not available

17

Homelite 9789902

ROPE-Starter (42")
(Superseded to 900849002)

$1.99

$

In Stock, only 1 left!

0

18

Homelite A97908

SPRING & CONTAINER
(Superseded to 300982011)

$

$

Not available

19

Homelite 00924

PULLEY-Starter
(Superseded to UP06625)

$

$

Not available

20

Homelite 82541

SCREW-Thread Form. (#10 x 1/2")

Note: Torque Specs. 20-30 In/Lbs, 2.3-3.4 Nm

$1.99

$

In Stock, only 3 left!

0

21

Homelite 81191

NUT-Hex (7/16-20)

Note: Torque Specs. 180-200 In/Lbs, 20.3-22.3 Nm

$

$

Not available

22

Homelite 01325

WASHER-Conical

$

$

Not available

23

Homelite A01015A

ROTOR
(Superseded to UP00607)

$

$

Not available

24

Homelite A00335A

AIR FILTER HOUSING

$

$

Not available

25

Homelite 82542

SCREW-Machine (10-24 x 2 1/4")

Note: Torque Specs. 30-40 In/Lbs, 3.4-4.5 Nm

$4.99

$

Usually ships in 3-7 days

0

26

Homelite 00934

FILTER-Air

$

$

Not available

27

Homelite 82368

SCREW-Thread Form. (#8 x .750)
(Superseded to PS00055)

Note: Torque Specs. 20-30 In/Lbs, 2.3-3.4 Nm

$

$

Not available
