HWXH - Bear Cat Trimmer, 160cc Honda (SN: H05619 & Above) Drive Parts Diagram

Trimmer, 160cc Honda

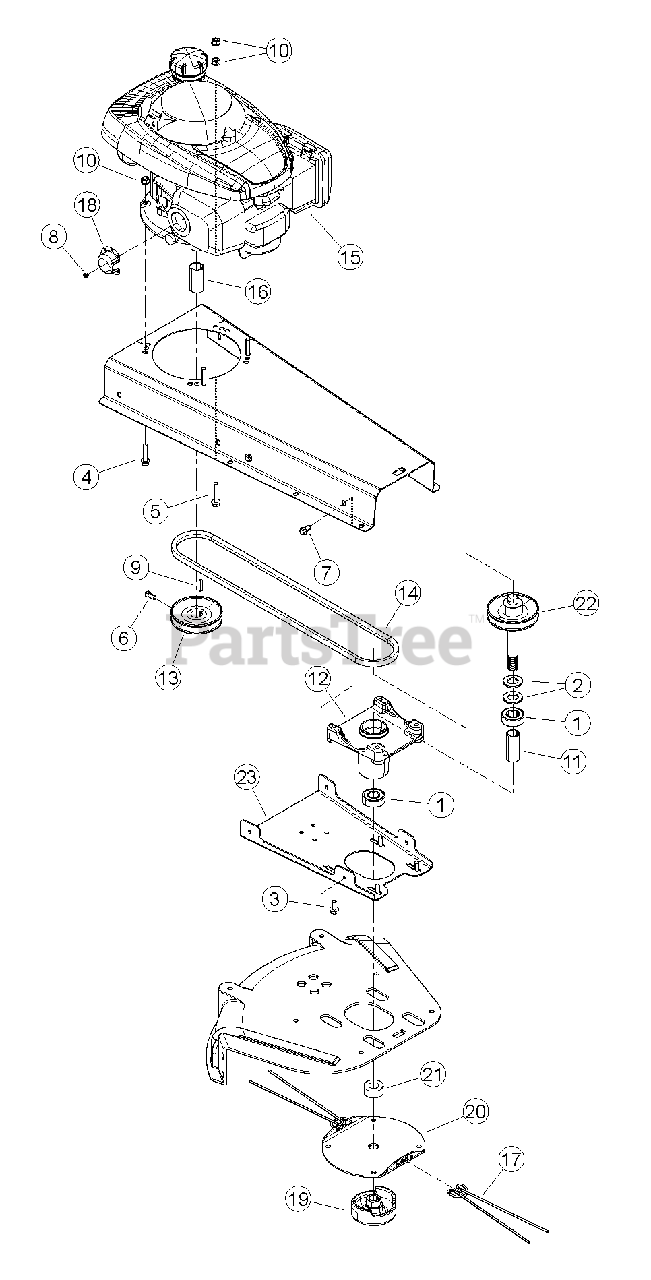

Drive Parts Diagram

  • Title
1

Bear Cat 12314

BEARING, 3/4 BALL

$22.99

$

In Stock, only 1 left!

0

2

15098

WASHER, 3/4" SAE FLAT ZP

$

$

Not available

3

Bear Cat 15117-00

BOLT, 5/16 X 3/4 FLANGE NC

$1.49

$

Usually ships in 3-7 days

0

4

15122-00

BOLT, 5/16 X 1-1/2 FLANGE NC

$

$

Not available

5

Bear Cat 15127-00

BOLT, 5/16 X 1-3/4 FLANGE NC

$3.99

$

Usually ships in 3-7 days

0

6

Bear Cat 15131

SCREW, 5/16-18 X 5/8 SQ HD SET

$

$

Not available

7

15176

SCREW, 11/32-12 X 7/8 FLANGE T-AB

$

$

Not available

8

Bear Cat 15316-00

SCREW, 8-32 X 1/4 HEX THREAD CUTTING

$

$

Not available

9

Bear Cat 15372

KEY, 3/16" X 1.00" LG SQUARE

$1.49

$

In Stock, only 1 left!

0

10

Bear Cat 15904-00

NUT, 5/16-18 NYLOCK FLANGE

$

$

Not available

11

Bear Cat 33670-00

SPACER, TRIMMER SPINDLE

$15.99

$

Usually ships in 3-7 days

0

12

Bear Cat 33671-00

CASTING, TRIMMER SPINDLE HUB

$105.99

$

Usually ships in 3-7 days

0

13

Bear Cat 33676-00

PULLEY, ENGINE 4.0 X .875 B GROOVE

$43.99

$

Usually ships in 3-7 days

0

14

Bear Cat 33677-00

BELT, AX48

$39.99

$

Usually ships in 3-7 days

0

15

ENGINE, HONDA 160CC VERTICAL (FOR SERVICE SEE ENGINE OWNER'S MANUAL OR NEAREST HONDA INDUSTRIAL ENGINE DEALER)

$

$

Not available

16

Bear Cat 33778-00

SPACER, HONDA 1-1/16 OD X 14 GA X 2.134

$25.99

$

Usually ships in 3-7 days

0

17

33801-00

STRING, 20" X .155 DIA. CROSS-FIRE

$

$

Not available

18

33823-00

DEFLECTOR, HONDA GCV 160

$

$

Not available

19

Bear Cat 71629-12

MOWBALL, CAST TRIMMER PAINTED

$

$

Not available

20

Bear Cat 72705-12

DISK, TRIMMER HEAD

$

$

Not available

21

Bear Cat 72781-12

SPACER, TRIMMER HEAD

$

$

Not available

22

Bear Cat 73373-00

WELDMENT, SPINDLE HW MODELS

$68.99

$

Usually ships in 3-7 days

0

23

Bear Cat 74654-12

PLATE, SPINDLE CASTING MOUNT

$

$

Not available

33806-00

ROPE, HONDA RECOIL

Note: (NOT SHOWN)

$

$

Not available
