HWXB - Bear Cat Trimmer, 163cc Briggs & Stratton (SN: H05709 & Above) Handle Bar Parts Diagram

Trimmer, 163 cc Briggs & Stratton

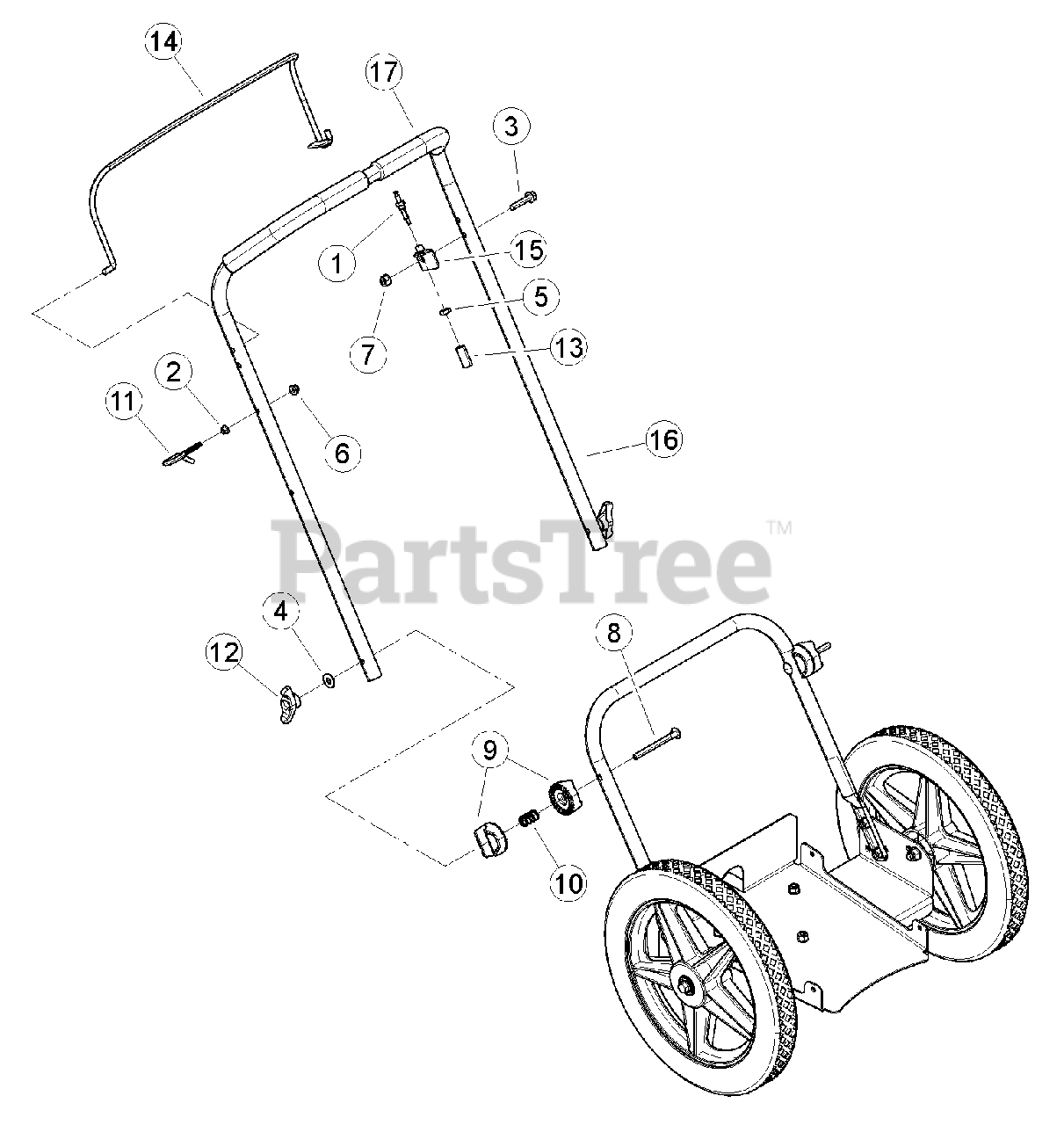

Handle Bar Parts Diagram

  • Title

1

Bear Cat 12014

SWITCH, ENGINE KILL
(Superseded to 78093-00)

$114.99

$

Usually ships in 3-7 days

0

2

15053

NUT, 1/4"-20 SERRATED FLANGE NC ZP

$

$

Not available

3

15122-00

BOLT, 5/16 X 1-1/2 FLANGE NC

$

$

Not available

4

Bear Cat 15250

WASHER, 5/16 FLAT

$

$

Not available

5

Bear Cat 15331-00

NUT, 3/8-24 JAM

$3.99

$

Usually ships in 3-7 days

0

6

Bear Cat 15900-00

NUT, 1/4-20 NYLOCK FLANGE

$0.99

$

Usually ships in 3-7 days

0

7

Bear Cat 15904-00

NUT, 5/16-18 NYLOCK FLANGE

$

$

Not available

8

Bear Cat 15915-00

BOLT, 5/16-18 X 3-1/2 LONG NECK GR5 CRG ZP

$15.99

$

Usually ships in 3-7 days

0

9

Bear Cat 31993-00

RETAINER, HANDLEBAR ADJUSTMENT

$2.99

$

In Stock, only 1 left!

0

10

Bear Cat 32004-00

SPRING, RETAINER COMPRESSION

$5.49

$

Usually ships in 3-7 days

0

11

Bear Cat 32045-00

GUIDE, RECOIL ROPE

$31.99

$

Usually ships in 3-7 days

0

12

Bear Cat 32475-00

KNOB, 5/16-18 FEEM TEE

$5.99

$

In Stock, only 1 left!

0

13

33826-00

TUBING, HEAT SHRINK 1/2" X 1-1/4" 2:1 RATIO

$

$

Not available

14

Bear Cat 73518-12

ASSEMBLY, BAIL HW TRIMMERS

$48.99

$

Usually ships in 3-7 days

0

15

Bear Cat 73775-12

BRACKET, TRIMMER KILL SWITCH

$26.99

$

Usually ships in 3-7 days

0

16

Bear Cat 73831-00

ASSEMBLY, UPPER HANDLE BAR WITH GRIPS

Note: (INCLUDES ITEM 17)

$147.99

$

Usually ships in 3-7 days

0

17

Bear Cat 32022-00

PAD, FOAM HANDLE BAR

$22.99

$

Usually ships in 3-7 days

0

17320

STRAP, 11 IN BLACK TIE

Note: (NOT SHOWN)

$

$

Not available

Bear Cat 33429-00

HARNESS, BRIGGS TRIMMER KILL SWITCH

Note: (NOT SHOWN)

$48.99

$

Usually ships in 3-7 days

0
