HWXB - Bear Cat Trimmer, 163cc Briggs & Stratton (SN: H05709 & Above) Body Parts Diagram

Trimmer, 163 cc Briggs & Stratton

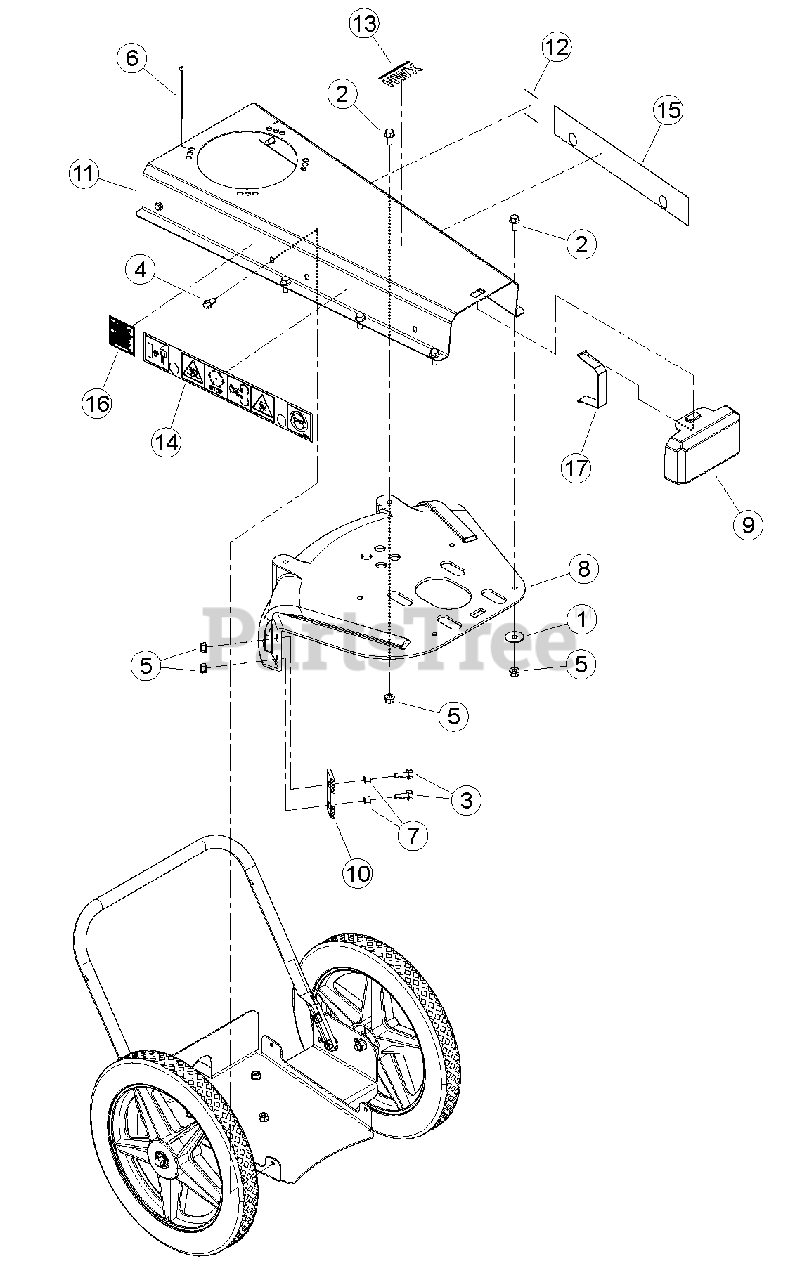

Body Parts Diagram

  • Title

1

Bear Cat 15040

WASHER, 5/16" FENDER ZP

$0.99

$

Usually ships in 3-7 days

0

2

Bear Cat 15117-00

BOLT, 5/16 X 3/4 FLANGE NC

$1.49

$

Usually ships in 3-7 days

0

3

Bear Cat 15119-00

BOLT, 5/16 X 7/8 FLANGE NC

$1.49

$

Usually ships in 3-7 days

0

4

15176

SCREW, 11/32-12 X 7/8 FLANGE T-AB

$

$

Not available

5

Bear Cat 15904-00

NUT, 5/16-18 NYLOCK FLANGE

$

$

Not available

6

16900

STRAP, 4 IN BLACK

$

$

Not available

7

Bear Cat 33672-00

SPACER, PLASTIC TRIMMER SHIELD

$7.99

$

Usually ships in 3-7 days

0

8

Bear Cat 33681-00

SHIELD, TRIMMER

$124.99

$

Usually ships in 3-7 days

0

9

Bear Cat 33682-00

COVER, PLASTIC TRIMMER FRONT

$53.99

$

Usually ships in 3-7 days

0

10

Bear Cat 70856

KNIFE, RECTANGULAR SHREDDING

$46.99

$

Usually ships in 3-7 days

0

11

Bear Cat 73779-00

ASSEMBLY, HWX BODY WITH DECALS

Note: (INCLUDES ITEMS 12-16)

$181.99

$

Usually ships in 3-7 days

0

12

Bear Cat 32392-00

DECAL, ECHO BEARCAT QR CODE

$2.99

$

Usually ships in 3-7 days

0

13

Bear Cat 33460-00

DECAL, HWX PUSH TRIMMER

$3.49

$

Usually ships in 3-7 days

0

14

Bear Cat 33853-00

DECAL, HW SAFETY INFORMATION

$12.99

$

Usually ships in 3-7 days

0

15

Bear Cat 33854-00

DECAL, HW MAINTENANCE INFORMATION

$7.49

$

Usually ships in 3-7 days

0

16

33883-00

DECAL, SPARK ARRESTOR

$

$

Not available

17

SPRING, CLIP HW TRIMMERS (WAS PN 77855-00, REPLACED AND SUPERSEDED. FOR SERVICE ORDER PN 33939-00)

$

$

Not available

17

Bear Cat 33939-00

SPRING, CLIP HW TRIMMERS

$13.99

$

Usually ships in 3-7 days

0
