HWT-6E (25A-120-190) - White Outdoor Walk-Behind Trimmer (1998) Trim Head Assembly Parts Diagram

Walk-Behind Trimmer

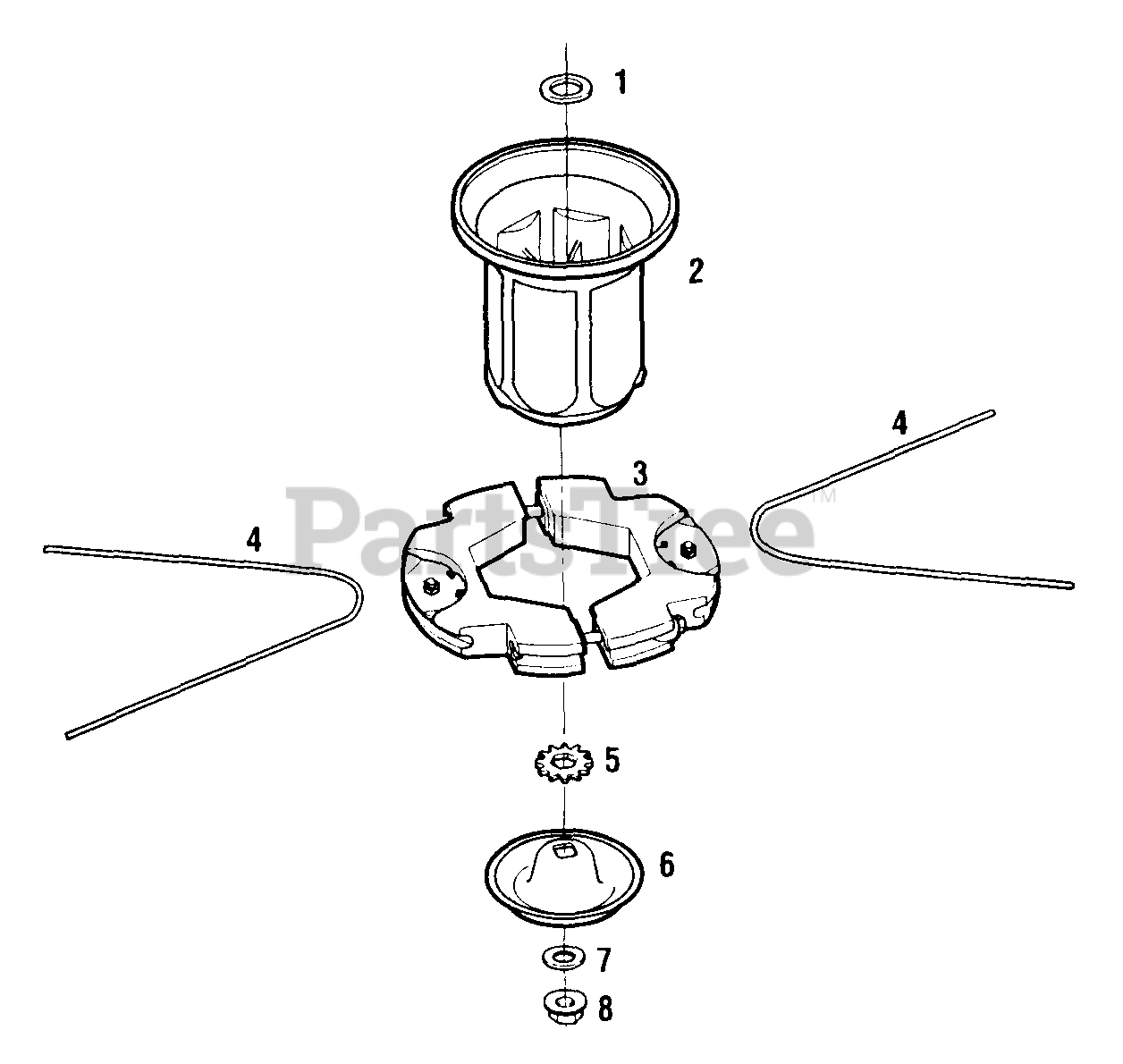

Trim Head Assembly Parts Diagram

  • Title
1

MTD 1910863

Shoulder Washer

Note: NLA

$

$

Not available

2

MTD 1910861

Spindle Head

Note: NLA

$

$

Currently unavailable

3

MTD 1918879

Trimmer Head

$

$

Not available

4

Trimmer String

$

$

Not available

5

MTD 1910862

Hex Spline Washer

$

$

Not available

6

MTD 1915220001

Wear Cup

$

$

Not available

7

MTD 1915239

Washer

$

$

Not available

8

MTD 712-3022

Hex Flange Nut, 1/2-13

$3.99

$

In Stock, Qty 9
