HWT-6E (25A-120-190) - White Outdoor Walk-Behind Trimmer (1998) Engine, Deck, Covers And Guards, Battery Parts Diagram

Walk-Behind Trimmer

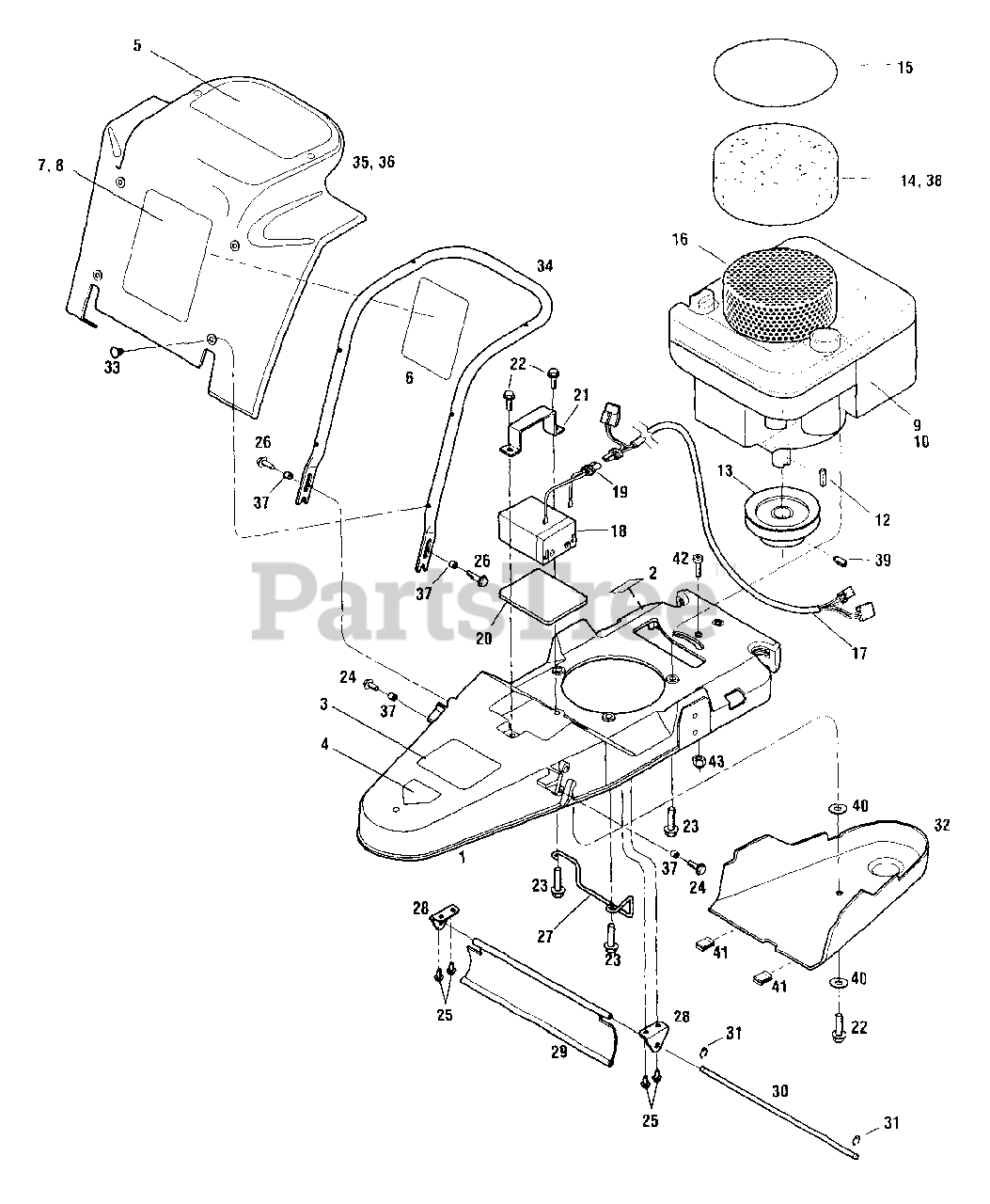

Engine, Deck, Covers And Guards, Battery Parts Diagram

  • Title

1

MTD 1915722

Deck with Decals

Note: NLA

$

$

Not available

2

MTD 1904511

Decal-Hot Surface

Note: NLA

$

$

Not available

3

MTD 1904403

Decal-Warning/Thrown Objects

Note: NLA

$

$

Not available

4

MTD 1739687

Decal-Danger Feet/Hands

$7.49

$

Usually ships in 3-6 days

0

5

MTD 1904404

Decal-Engine Cover

Note: NLA

$

$

Not available

6

MTD 1904405

Decal-Parallel Trim Control

Note: NLA

$

$

Not available

7

MTD 1915686

Decal-Logo 6HP

Note: NLA - For model HWT-6E

$

$

Not available

8

MTD 1915685

Decal-Logo 5HP

Note: NLA - For model HWT-5

$

$

Not available

9

Engine-5HP

Note: For model HWT-5. Refer to engine model/type number.

$

$

Not available

10

Engine-6HP Electric

Note: For model HWT-6E. Refer to engine model/type number.

$

$

Not available

12

MTD GW-9301099

Key, 3/16" x 1" SQ
(Superseded to GW-9301)

$3.99

$

In Stock, only 3 left!

0

13

MTD 1915240

Pulley, 4" OD

Note: NLA

$

$

Not available

14

MTD BS-693514

Engine Debris Guard/Foam

$

$

Not available

15

MTD 1915304

O-Ring/Engine Debris Guard

$

$

Not available

16

MTD 1915275

Engine Debris Guard/Steel

Note: NLA

$

$

Not available

17

MTD 1910835P

Wire Harness

Note: For model HWT-6E

$

$

Not available

18

MTD 1909647

Battery

Note: For model HWT-6E

$164.99

$

Usually ships in 3-6 days

0

19

MTD 1909697

Battery Connector

Note: For model HWT-6E

$23.99

$

Usually ships in 3-6 days

0

20

MTD 1915268

Battery Pad

Note: NLA - For model HWT-6E

$

$

Not available

21

MTD 1915204001

Battery Bracket

Note: For model HWT-6E

$

$

Not available

22

MTD 710-0602

Hex Head Flange Screw, 5/16 x 1

Note: Qty. of 3. For model HWT-6E only. Qty. of 1. For model HWT-5.

$4.49

$

In Stock, Qty 20+

0

23

MTD 710-1007

Hex Head Flange Screw, 3/8 x 1.50

$6.49

$

In Stock, only 1 left!

0

24

MTD 1754128

Hex Head Flange Screw, 1/4-20 x 3/4

$3.99

$

In Stock, only 2 left!

0

25

MTD 1909301

Hex Head Flange Screw, 1/4-20 x 5/8

$

$

Not available

26

MTD 1763187

Hex Head Flange Screw, 1/4-20 x 1

Note: NLA

$

$

Not available

27

MTD 1910865

Belt Guide

$

$

Not available

28

MTD 1915219001

Flap Bracket

Note: NLA

$

$

Not available

29

MTD 1915211

Deflector Shield

Note: NLA

$

$

Not available

30

MTD 1915212

Deflector Shield Rod

$

$

Not available

31

MTD 1185304

E-Ring, 5/16"

$

$

Not available

32

MTD 1915205

Belt Cover

$

$

Not available

33

MTD 1915290

Push-In Fastener

Note: NLA

$

$

Not available

34

MTD 1915238001

Engine Cover Support

Note: NLA

$

$

Currently unavailable

35

MTD 1915723

Engine Cover w/Decals

Note: NLA - For model HWT-5

$

$

Not available

36

MTD 1915724

Engine Cover w/Decals

Note: NLA - For model HWT-6E

$

$

Not available

37

MTD 1915320

Spacer

$

$

Not available

39

MTD GW-9677

Set Screw

$3.49

$

In Stock, only 2 left!

0

40

MTD GW-94018

Washer

$

$

Not available

41

MTD GW-9218

Clip

$

$

Not available

42

MTD GW-9719

Socket Head Capscrew, 1/4-20 x 1

$5.49

$

Usually ships in 3-6 days

0

43

MTD 712-0324

Toplock Nut, 1/4-20

$3.99

$

In Stock, Qty 16

0
