HWT-4 - MTD Walk-Behind Trimmer Spindle Plate Assembly Parts Diagram

Walk-Behind Trimmer

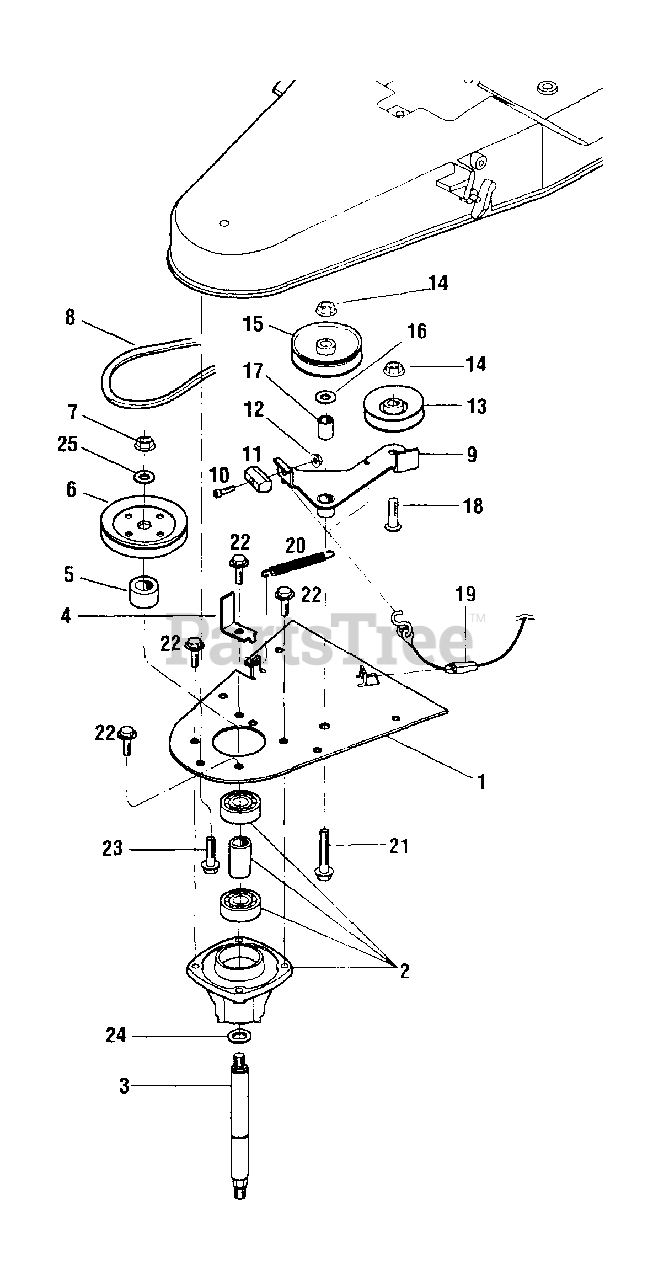

Spindle Plate Assembly Parts Diagram

  • Title

1

MTD 1910850001

Spindle Mounting Plate

$

$

Not available

2

MTD 1769048099

Spindle Assembly

$175.99

$

Usually ships in 3-6 days

0

3

MTD 1915477

Spindle Shaft Assembly

Note: (Incl. Ref. 25)

$

$

Not available

4

MTD 1910860001

Belt Guide

$

$

Not available

5

MTD 1910856

Spindle Spacer

$

$

Not available

6

MTD 1910842

Spindle Pulley

Note: NLA

$

$

Currently unavailable

7

MTD 712-3022

Hex Flange Nut, 1/2-13

$3.99

$

In Stock, Qty 8

0

8

MTD 1915555

V-Belt

$36.99

$

In Stock, only 4 left!

0

9

MTD 1904479

Idler Arm/Brake Shoe Assembly

Note: NLA

$

$

Not available

10

MTD 1910859

Socket Hd Capscrew, 10-24 x 3/4

$

$

Not available

11

MTD 1910847

Brake Shoe

$

$

Not available

12

MTD 1983039

Hex Lock Nut, 10-24

$

$

Not available

13

MTD 1727978

V-Groove Idler Pulley

$

$

Not available

14

MTD 1186393

Hex Flange Nut, 3/8-16

$3.49

$

In Stock, only 2 left!

0

15

MTD 1910855

Flat Idler Pulley

$

$

Not available

16

MTD 936-0344

Washer, .88 x .382 x .275
(Superseded to 736-0344)

$4.99

$

In Stock, Qty 20+

0

17

MTD 1910854

Idler Arm Spacer

$

$

Not available

18

MTD 1910857

Button Head Screw, 3/8-16 x 1-1/2

Note: NLA

$

$

Currently unavailable

19

MTD 1910852P

Control Cable

Note: (See "Handlebar Assembly" illustration and parts list Ref. 13)

$75.99

$

In Stock, only 1 left!

0

20

MTD 1910849

Idler Tension Spring

$

$

Not available

21

MTD 1910858

Hex Flange Screw, 3/8 x 16 x 2-1/4

$

$

Not available

22

MTD 710-1260A

Hex Flange Screw, 5/16-18 x 3/4

$3.99

$

In Stock, Qty 20+

0

23

MTD 710-0602

Hex Flange Screw, 5/16-18 x 1

$4.49

$

In Stock, Qty 20+

0

24

MTD GW-9953

Hardened Shim, 3/4 ID x 1.022 OD x .060 thick

$

$

Not available

25

MTD GW-9928

Belleville Washer, 5/8

$12.99

$

Usually ships in 3-6 days

0
