HWT-4 (25A-100-190) - White Outdoor Walk-Behind Trimmer (2000) Trim Head Assembly Parts Diagram

Walk-Behind Trimmer

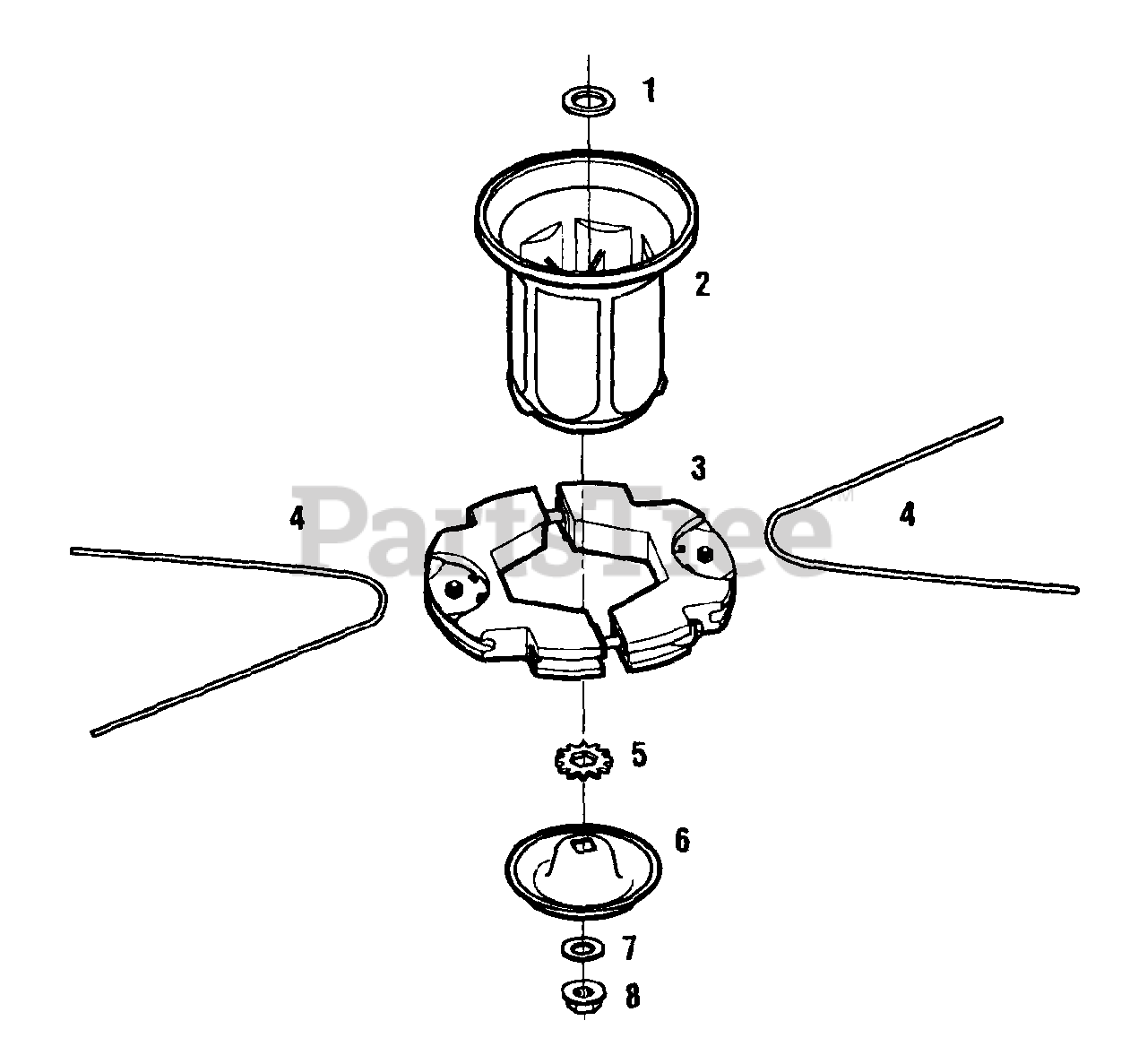

Trim Head Assembly Parts Diagram

  • Title

1

MTD 1910863

Shoulder Washer

$

$

Not available

2

MTD 1910861

Spindle Head

$

$

Currently unavailable

3

MTD 1915857

Trimmer Head
(Superseded to 1918879)

$

$

Not available

4

N/A

Trimmer String

Note: See "Accessories And Kits" illustration and parts list, Ref. 1 and 2.

$

$

Not available

5

MTD 1910862

Hex Spline Washer

$

$

Not available

6

MTD 1915220001

Wear Cup

$

$

Not available

7

MTD 1915239

Washer

$

$

Not available

8

MTD 1904308

Hex Flange Nut, 1/2-13
(Superseded to 712-3022)

$3.99

$

In Stock, Qty 20+
