HWT-4 (25A-100-190) - White Outdoor Walk-Behind Trimmer (2000) Handlebar Assembly Parts Diagram

Walk-Behind Trimmer

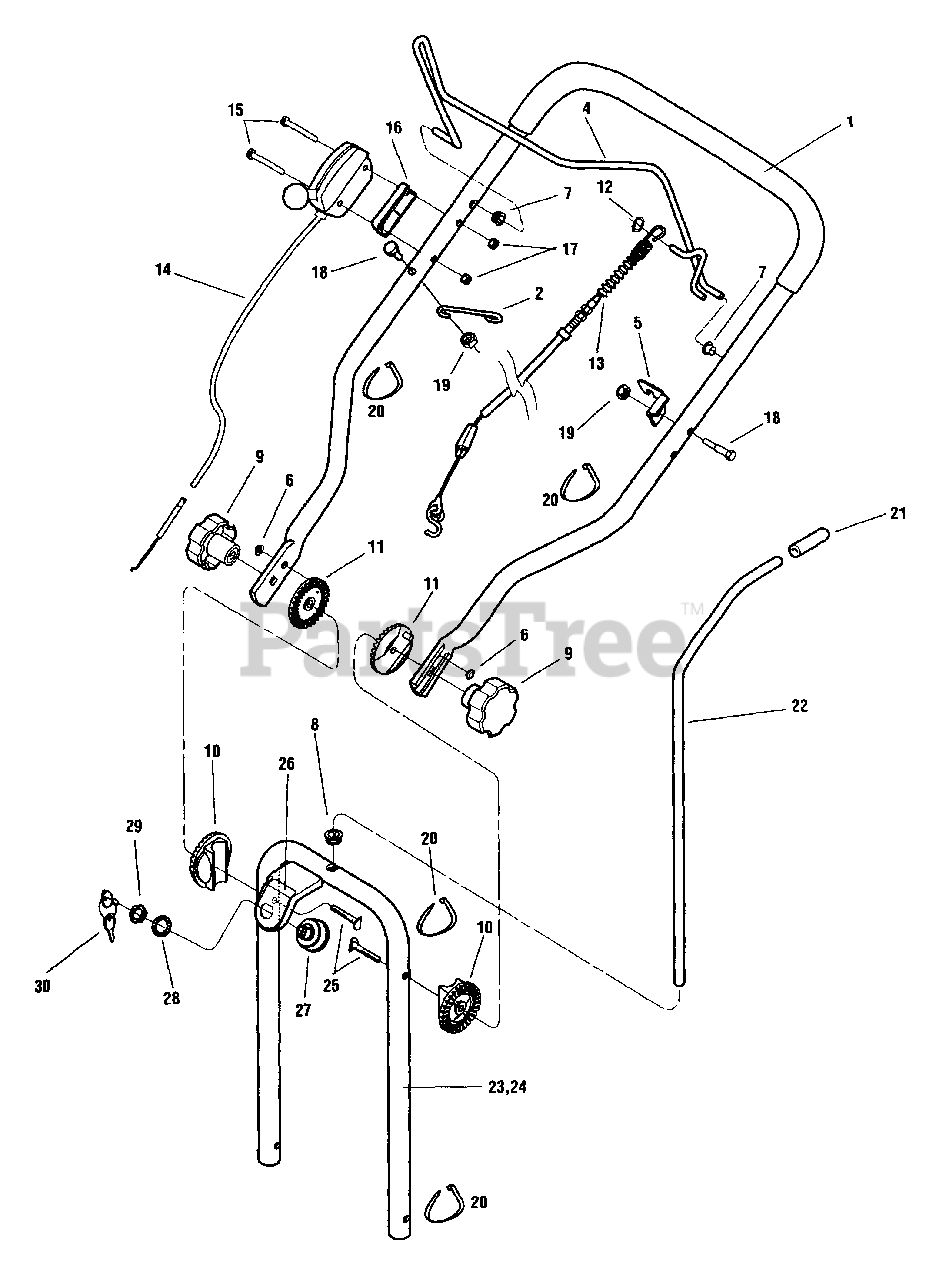

Handlebar Assembly Parts Diagram

  • Title
1

MTD 1904422

Upper Handlebar w/sleeve

$

$

Not available

2

MTD 1915309

Rope Guide

Note: NLA - Model HWT-5E

$

$

Not available

$

$

Not available

5

MTD 1749977001

Cable Bracket

$

$

Not available

6

MTD 1765879

Push-on Retainer

$7.99

$

In Stock, only 1 left!

0

7

MTD 1908677

Nyliner Bushing

$

$

Not available

8

MTD 1761046

Nyliner Bushing

$

$

Not available

9

MTD 1909250

Adjusting Knob

Note: NLA

$

$

Not available

10

MTD 1903403

Inside Hndlbr. Adj. Quadrant

$11.99

$

In Stock, only 1 left!

0

11

MTD 1903404099

Outside Hndlbr Adj. Quadrant

$

$

Not available

12

MTD 1908673

Retaining Ring, external .312" I.D.

$

$

Not available

13

MTD 1910852P

Control Cable

$75.99

$

In Stock, only 1 left!

0

14

MTD 1910833

Throttle Cable

$

$

Not available

15

MTD 1908793

Screw, 10-24 x 2

$

$

Not available

16

MTD 1909291

Spacer

Note: NLA

$

$

Not available

17

MTD 1983039

Lock Nut, 10-24

$

$

Not available

18

MTD 1983658

Hex Hd Screw, 1/4-20 x 1-1/8

Note: NLA

$

$

Not available

19

MTD 712-0324

Top Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 16

0

20

MTD 1763682

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, only 2 left!

0

21

MTD 1718534

Steering Rod Grip

Note: NLA

$

$

Not available

22

MTD 1915279001

Upper Steering Rod

Note: NLA

$

$

Currently unavailable

23

MTD 1910809001

Lower Handlebar

Note: Model HWT-4

$

$

Not available

24

MTD 1904508

Lower Handlebar

Note: NLA - Model HWT-5E

$

$

Not available

25

MTD 1731025

Curved Hd Bolt, 5/16-18 x 2
(Superseded to 710-1174)

$7.49

$

In Stock, Qty 20+

0

26

MTD 1904406

Decal-Keyswitch

Note: NLA Model HWT-5E

$

$

Not available

27

MTD 1900455P

Ignition Switch

Note: Model HWT-5E

$

$

Not available

28

MTD 736-0225

Lockwasher, 5/8

Note: Model HWT-5E

$4.49

$

In Stock, only 2 left!

0

29

MTD 712-0252

Hex Nut, 5/8-32

Note: Model HWT-5E

$5.99

$

Usually ships in 3-6 days

0

30

MTD 925-0201

Ignition Key

Note: Model HWT-5E

$9.49

$

In Stock, only 1 left!

0
