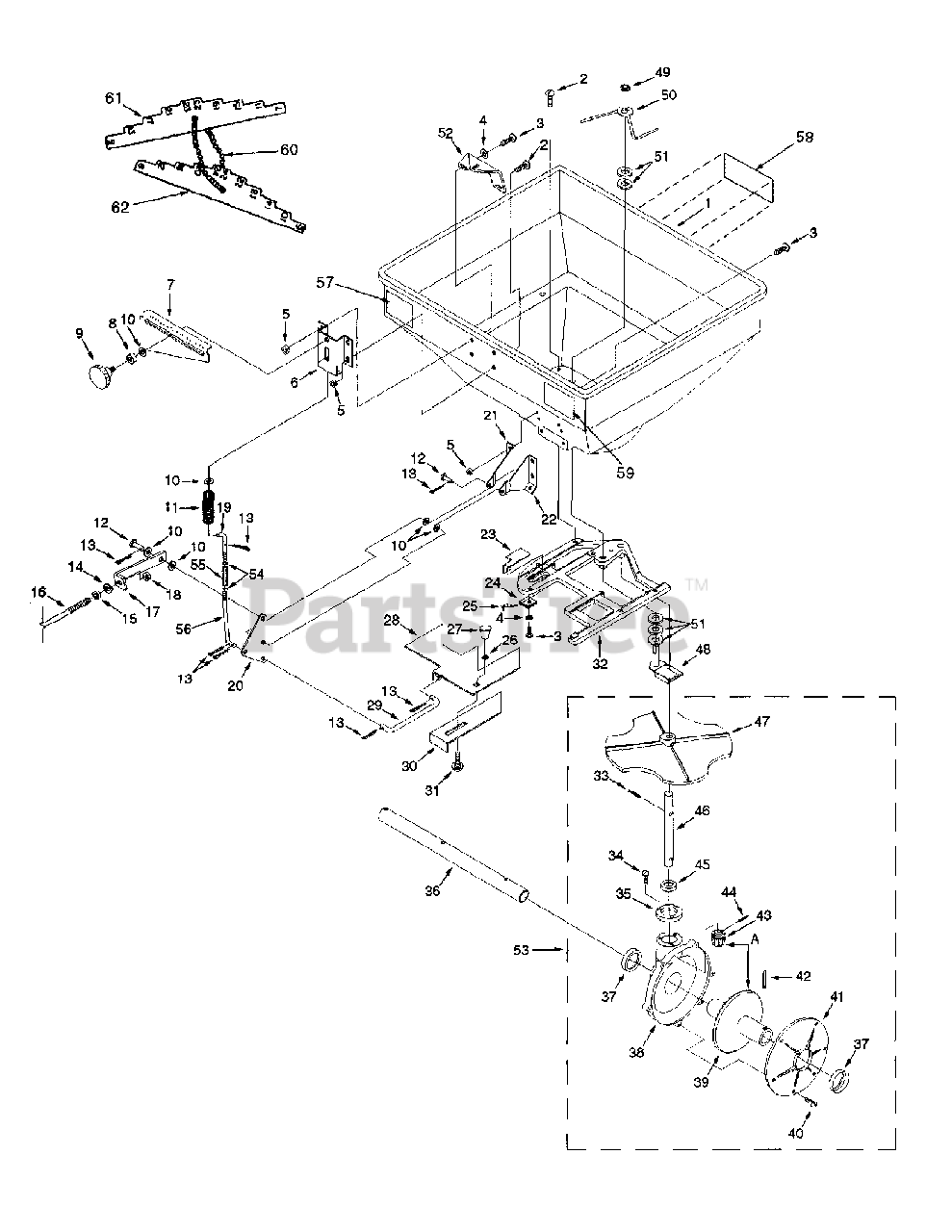

HWSS 100 - MTD Pro Spreader Gear Set & Controls Parts Diagram

Pro Spreader

Gear Set & Controls Parts Diagram

  • Title

1

MTD 01001003

Hopper

Note: NLA

$

$

Not available

2

MTD 00030423

Machine Screw, #10-24 x 1/2, SS

$

$

Not available

3

MTD 00070028

Machine Screw, #10-24 x 5/8, SS

$

$

Not available

4

MTD 00030426

Flat Washer, #10, SS

$

$

Not available

5

MTD 00070027

Hex Nut, #10-24 Nylock, SS

$

$

Not available

6

MTD 00030400

Bracket, Spring and Rod Guide, SS

$

$

Not available

7

MTD 00030406

Bracket, Calibrating Slide, SS

Note: NLA

$

$

Not available

8

MTD 00018615

Spacer, Nylon .500 x .257 x .500

$

$

Not available

9

MTD 00018614

Knob, Calibrating Slide

$

$

Not available

10

MTD 00060033

Flat Washer, 1/4 SS
(Superseded to 736-05152)

$7.99

$

Usually ships in 3-6 days

0

11

MTD 00030433

Calibrating Spring, SS

$

$

Not available

12

MTD 00060031

Clevis Pin, 1/4 x 1/2, SS
(Superseded to 715-05056)

$9.49

$

In Stock, only 2 left!

0

13

MTD 00060032

Cotter Pin, 3/32 x 1/2, SS

$

$

Not available

14

MTD 00060073

Lock Washer, 5/16, SS

$

$

Not available

15

MTD 00060071

Hex Nut, 5/16-18, SS
(Superseded to 712-05158)

$4.49

$

In Stock, Qty 14

0

16

MTD 00030408

Lever Rod, SS

$

$

Not available

17

MTD 00030398

Bracket, Lever Rod Adjusting, SS

$

$

Not available

18

MTD 912-0429

Hex Nut, 5/16-18 Nylock, SS
(Superseded to 712-0429)

$4.49

$

In Stock, Qty 20+

0

19

MTD 00030581

Calibrating Rod, SS

Note: NLA

$

$

Not available

20

MTD 00030397

Bellcrank Pivot, SS

$

$

Not available

21

MTD 00030396

Bellcrank Pivot Mount, LH, SS

Note: NLA

$

$

Not available

22

MTD 00030395

Bellcrank Pivot Mount, RH, SS

$

$

Not available

23

MTD 00030392

Remote Slide Plate, SS

$

$

Not available

24

MTD 00030424

Conduit Clip

$

$

Not available

25

MTD 00030444

Cable, Remote Control

$

$

Not available

26

MTD 00018628

Flat Washer, 1/4, Nylon

$3.99

$

Usually ships in 3-6 days

0

27

MTD 00030427

Knob, Third Hole Slide Plate

$

$

Not available

28

MTD 00030407

Main Slide Plate, SS

$

$

Not available

29

MTD 00030404

Linkage Rod, Slide Plate, SS

$

$

Not available

30

MTD 00030399

Slide Plate, Third Hole, SS

$

$

Not available

31

MTD 00030428

Carriage Bolt, #10-24 x 3/8, SS

$

$

Not available

32

MTD 01002126

Guide, Shut Off Plate

$

$

Not available

33

MTD 00060069

Roll Pin, 1/8 x 7/8, SS

$4.99

$

In Stock, Qty 8

0

34

MTD 00030415

Screw, #10 x 5/8 T-A Hex Slot Hd., SS
(Superseded to 710-06429)

$4.49

$

In Stock, only 2 left!

0

35

MTD 00030593

Cap, Gear Set
(Superseded to 731-11586)

$34.99

$

Usually ships in 3-6 days

0

36

MTD 00030391

Spreader Axle, SS

$

$

Not available

37

MTD 00030385

Seal, Housing and Cover

$13.99

$

In Stock, only 2 left!

0

38

MTD 00030591

Housing, Gear Set
(Superseded to 731-11584)

$54.99

$

Usually ships in 3-6 days

0

39

MTD 00030594

Gear
(Superseded to 731-11587)

$41.99

$

Usually ships in 3-6 days

0

40

MTD 01000129

Screw, #6 x 5/8 T-A Pan Hd. Phil., SS
(Superseded to 710-06432)

$3.99

$

In Stock, only 3 left!

0

41

MTD 00030592

Cover, Gear Set
(Superseded to 731-11585)

$42.99

$

Usually ships in 3-6 days

0

42

MTD 00060019

Roll Pin, 5/32 x 1-1/4, SS
(Superseded to 715-05054)

$4.99

$

In Stock, only 1 left!

0

43

MTD 00030595

Pinion Gear
(Superseded to 731-11588)

$22.99

$

In Stock, only 4 left!

0

44

MTD 00060022

Roll Pin, 1/8 x 5/8, SS

$4.49

$

In Stock, Qty 9

0

45

MTD 00030384

Seal, Gear Set Cap
(Superseded to 721-04820)

$16.99

$

Usually ships in 3-6 days

0

46

MTD 00030403

Impeller Shaft, SS

$

$

Not available

47

MTD 00030317

Impeller

$59.99

$

In Stock, only 2 left!

0

48

MTD 00030322

Agitator Cam, SS
(Superseded to 680-00430)

$45.99

$

Usually ships in 3-6 days

0

49

MTD 00060050

Spring Clip
(Superseded to 712-05144)

$8.99

$

In Stock, only 1 left!

0

50

MTD 00060049

Agitator Arm
(Superseded to 680-00408)

$29.99

$

In Stock, only 4 left!

0

51

MTD 00005530

Plastic Washer
(Superseded to 736-04070)

$

$

Not available

52

MTD 00030393

Calibrating Window

$

$

Not available

53

MTD 01002280

Kit, Impeller and Gear Set

$

$

Not available

54

MTD 00030626

Nut, 1/4"-28 SS

$

$

Not available

55

MTD 00030550

Calibrating Rod Adjuster

$

$

Not available

56

MTD 00030580

Lower Calibrating Rod, SS

Note: NLA

$

$

Not available

57

MTD 00090006

"USA" Decal

$

$

Not available

58

MTD 01002102

MTD HWSS 100 Decal

$

$

Not available

59

MTD 01006324

100 lb. Capacity Decal

$

$

Not available

60

MTD 00009941

Chain
(Superseded to 713-05035)

$4.49

$

Usually ships in 3-6 days

0

61

MTD 01002281

Calibration Gauge-Odd

Note: NLA

$

$

Currently unavailable

62

MTD 01002282

Calibration Gauge-Even

Note: NLA

$

$

Currently unavailable
