HWSS 100 - MTD Pro Spreader Deflector Kit Parts Diagram

Pro Spreader

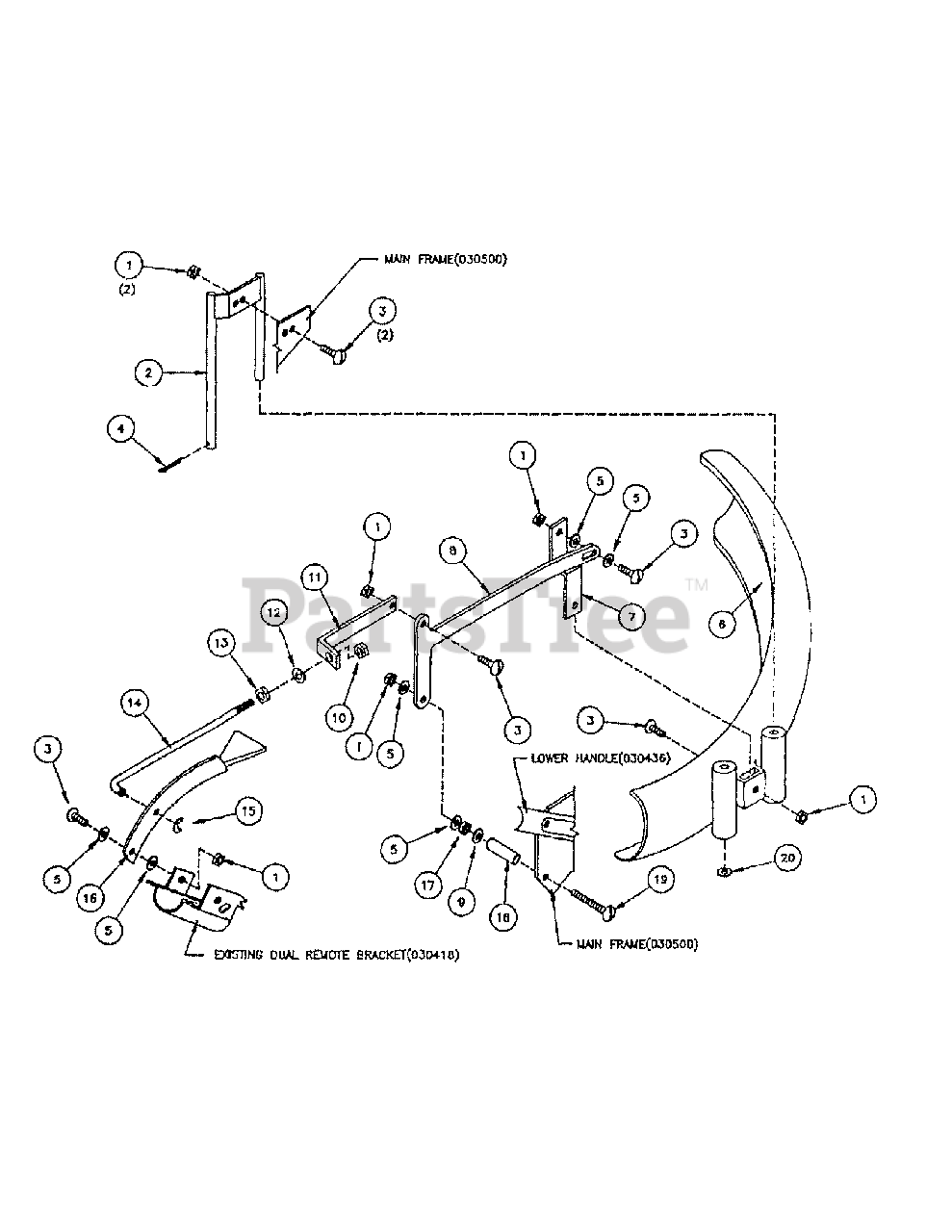

Deflector Kit Parts Diagram

  • Title

1

MTD 712-0324

Hex Nut, 1/4-20 Nylock SS

$3.99

$

In Stock, Qty 16

0

2

MTD 00030505

Deflector Mount Assembly

Note: NLA

$

$

Not available

3

MTD 00060057

Pan Hd. Mach. Scr. 1/4-20x7/8

$5.49

$

Usually ships in 3-6 days

0

4

MTD 00061052

Cotter Pin, 1/8 x 1" SS

$4.49

$

In Stock, only 1 left!

0

5

MTD 00018628

Flatwasher, 1/4 Nylon

$3.99

$

Usually ships in 3-6 days

0

6

MTD 00061066

Deflector Tube

$20.99

$

In Stock, only 1 left!

0

7

MTD 00035030

Offset Bracket

$28.99

$

Usually ships in 3-6 days

0

8

MTD 00030509

Deflector Lift Arm

$

$

Not available

9

MTD 00060033

Flatwasher, 1/4 SS
(Superseded to 736-05152)

$7.99

$

Usually ships in 3-6 days

0

10

MTD 912-0429

Hex Nut, 5/16-18 Nylock SS
(Superseded to 712-0429)

$4.49

$

In Stock, Qty 20+

0

11

MTD 00030502

Deflector Adjusting Bracket

Note: NLA

$

$

Not available

12

MTD 00060073

Lockwasher, 5/16 SS

$

$

Not available

13

MTD 00060071

Hex Nut, 5/16-18, SS
(Superseded to 712-05158)

$4.49

$

In Stock, only 4 left!

0

14

MTD 00030508

Deflector Control Rod

$

$

Not available

15

MTD 00010171

C-Clip Retainer
(Superseded to 726-05073)

$4.99

$

Usually ships in 3-6 days

0

16

MTD 00060034

Operating Lever and Rubber Handle
(Superseded to 680-00406)

$32.99

$

Usually ships in 3-6 days

0

17

MTD 00060059

Hex Nut, 1/4-20 SS

$3.49

$

Usually ships in 3-6 days

0

18

MTD 00030503

Deflector Arm Mounting Spacer

$35.99

$

Usually ships in 3-6 days

0

19

MTD 00060029

Machine Screw, 1/4-20 x 2 SS

$4.99

$

Usually ships in 3-6 days

0

20

MTD 00061053

Flatwasher, 3/8 SS

$3.99

$

Usually ships in 3-6 days

0
