HWS 1414 (UT-05047) - Homelite Concrete Saw Frame & Engine Parts Diagram

Concrete Saw

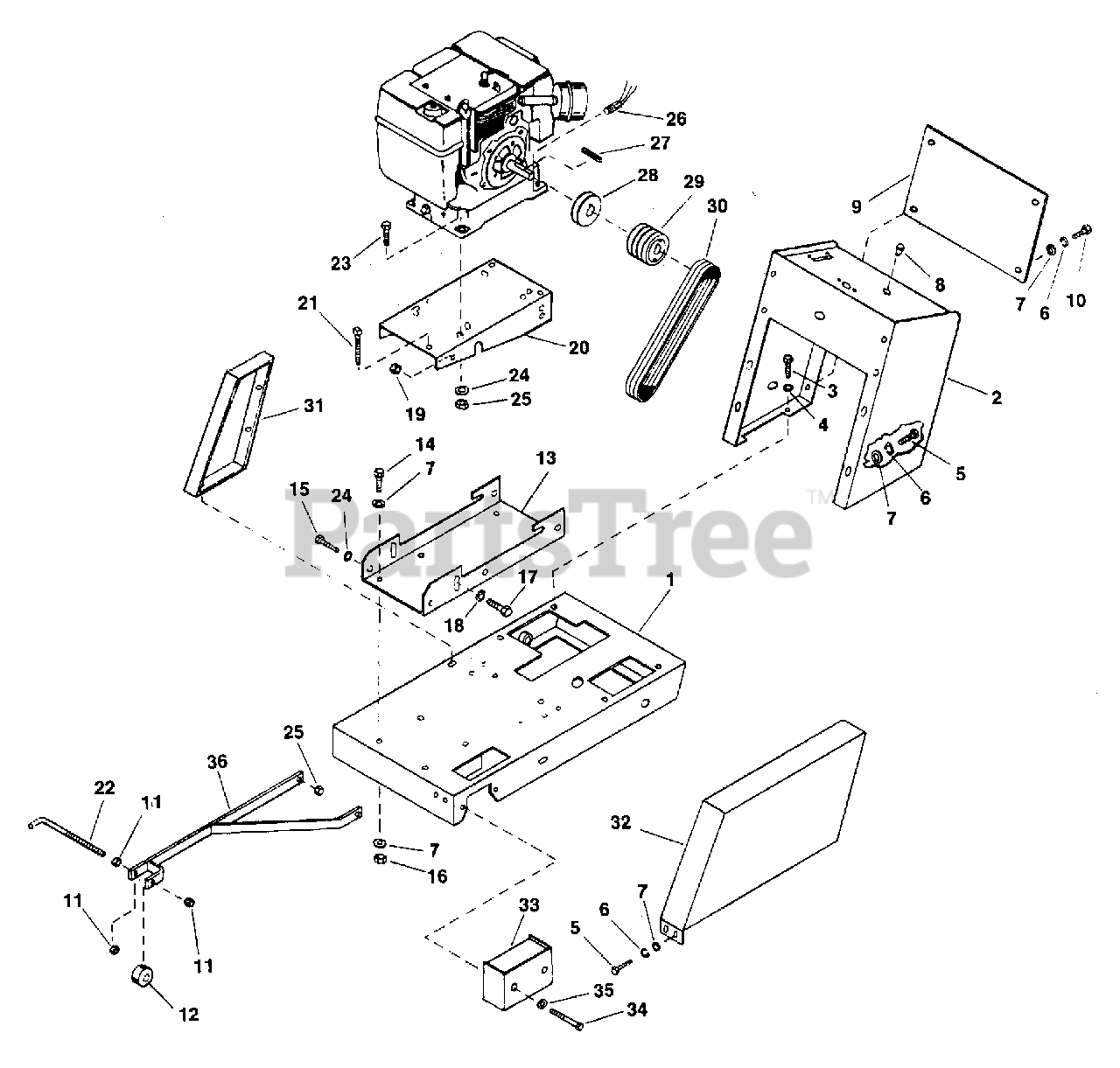

Frame & Engine Parts Diagram

  • Title

1

Homelite 4995369

BASE- Frame

$

$

Currently unavailable

2

Homelite 4995370

FRAME- Upright

$

$

Currently unavailable

3

Homelite 80083

CAPSCREW- Hex Hd., 5/16-18 x 3/4" Grd. 5

$

$

Not available

4

Homelite 84032

WASHER- Sae 5/16" Dia.

$

$

Not available

5

Homelite 80049

CAPSCREW- Hex Hd. 1/4-20 x 5/8" Grd. 5

$

$

Not available

6

Homelite 83009

WASHER- Lock, Split Type 1/4" Dia.

$8.49

$

Usually ships in 3-7 days

0

7

Homelite 84020

WASHER- Sae 1/4" Dia.

$

$

Not available

8

Homelite 4995374

BUTTON- Kill

$

$

Currently unavailable

9

Homelite 4995375

PLATE- Back Cover

$

$

Currently unavailable

10

Homelite 80049

CAPSCREW- Hex Hd. 1/4-20 x 5/8" Grd. 5

$

$

Not available

11

Homelite 810892

NUT- Hex 3/8-16

$13.99

$

Usually ships in 3-7 days

0

12

Homelite 4995323

WHEEL- 2 1/2" Dia.

$

$

Currently unavailable

13

Homelite 4995376

MOUNT- Engine Base

$

$

Currently unavailable

14

Homelite 82496

CAPSCREW- Hex Hd. 1/4-20 x 1" Grd. 5

$

$

Not available

15

Homelite JA400262

CAPSCREW- Hex Hd. 3/8-16 x 1" Grd. 5
(Superseded to 80095)

$

$

Not available

16

Homelite 81204

LOCKNUT- Fiber Type 1/4-20

$5.99

$

Usually ships in 3-7 days

0

17

Homelite 4995377

CAPSCREW- Hex Hd. 1/2-13 x 1 1/4" Grd. 5

$

$

Currently unavailable

18

Homelite 4995378

WASHER- Sae 1/2" Dia.

$

$

Currently unavailable

19

Homelite 81254

LOCKNUT- Fiber Type 1/2-13

$

$

Not available

20

Homelite 4995380

BASE- Engine

$

$

Currently unavailable

21

Homelite 4995381

SETSCREW- 1/2-13 x 4" lg.

$

$

Currently unavailable

22

Homelite 4995322

ROD- Pointer

$

$

Currently unavailable

23

Homelite 80087

CAPSCREW- Hex Hd. 3/8-16 x 1 1/2" for 8HP, 12HP, 14HP and 16HP

$

$

Not available

24

Homelite 84117

WASHER- Sae 3/8" Dia.

$

$

Not available

25

Homelite 81247

LOCKNUT- Fiber Type, 3/8-16

$

$

Not available

26

Homelite 4995394

OIL SENTRY PROTECTER

$

$

Currently unavailable

27

Homelite 4995334

KEY- 1/4 x 21/2"

$7.49

$

Usually ships in 3-7 days

0

28

Homelite 4995395

PULLEY-Accessory on Engine, 4L Groove 2.70" O.D.x1 1/8" Bore/w Setsc

$

$

Currently unavailable

29

Homelite 4995396

PULLEY-Engine

$

$

Currently unavailable

30

Homelite 4995398

BELT-375 3V, matched set of 3 for 12,14,16HP Gas & 5, 71/2 HP Electric

$

$

Currently unavailable

31

Homelite 4995399

GUARD- Small Side

$

$

Currently unavailable

32

Homelite 4995307

GUARD- Belt

$

$

Currently unavailable

33

Homelite 4995313

GUARD- Shaft Weldment

$

$

Currently unavailable

34

Homelite 4995315

CAPSCREW- Hex Hd. 5/16-18 x 31/4" Grd. 5

$

$

Currently unavailable

35

Homelite 83003

WASHER- Lock, Split Type 5/16" Dia.
(Superseded to UP03791)

$

$

Not available

36

Homelite 4995316

POINTER ASSEMBLY

$

$

Currently unavailable
