HWS 1414 (UT-05047) - Homelite Concrete Saw Exploded View Parts Diagram

Concrete Saw

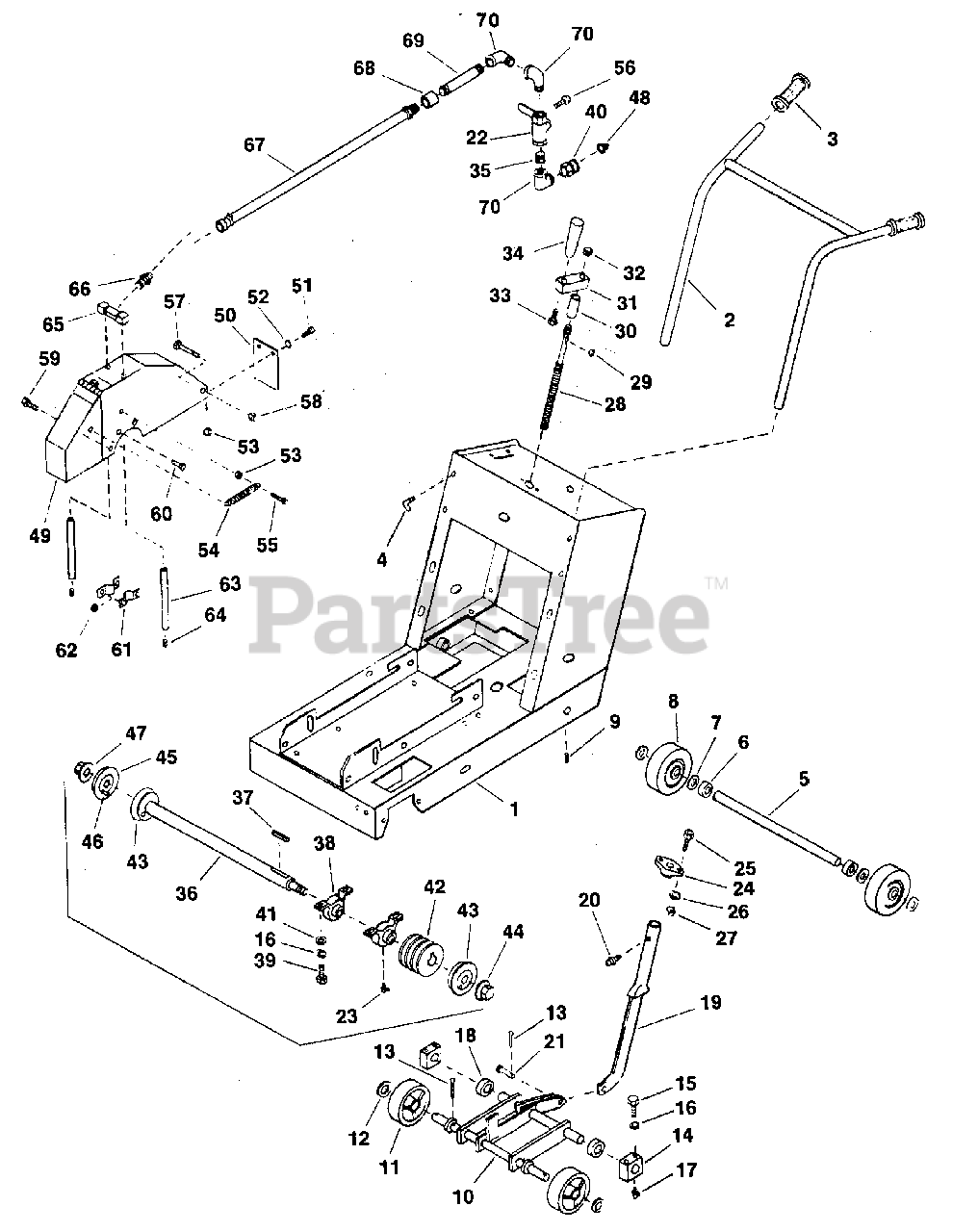

Exploded View Parts Diagram

  • Title

1

Homelite 4995301

FRAME ASSEMBLY

$

$

Currently unavailable

2

Homelite 4995302

HANDLE BAR

$

$

Currently unavailable

3

Homelite 4995303

GRIP- Handle

$16.99

$

Usually ships in 3-7 days

0

4

Homelite 4995304

L-BOLT- 3/8-16

$

$

Currently unavailable

5

Homelite 4995305

AXLE- Rear

$

$

Currently unavailable

6

Homelite 4995306

SET COLLAR- (with Setscrews) 5/8"

$15.99

$

Usually ships in 3-7 days

0

7

Homelite 841141

WASHER- Flat 5/8" Dia.

$

$

Not available

8

Homelite 4995308

WHEEL- 6" Dia.

$

$

Currently unavailable

9

Homelite 4995309

SETSCREW- 1/4-20 x 1/4"

$

$

Currently unavailable

10

Homelite 4995310

AXLE- Front Weldment

$431.99

$

Usually ships in 3-7 days

0

11

Homelite 4995311

WHEEL- 5" Dia.

$

$

Not available

12

Homelite 4995312

WASHER- Sae 3/4" Dia.

$3.99

$

Usually ships in 3-7 days

0

13

Homelite 86304

PIN- Cotter 1/8 x 1"

$

$

Not available

14

Homelite 4995314

BLOCK- Pivot with Bushing and Grease Fitting

$

$

Currently unavailable

15

Homelite JA400262

CAPSCREW- Hex Hd. 3/8-16 x 1" Grd. 5
(Superseded to 80095)

$

$

Not available

16

Homelite 83018

WASHER- Lock, Split Type 3/8" Dia.

$

$

Not available

17

Homelite 4995317

FITTING- Grease

$10.99

$

Usually ships in 3-7 days

0

18

Homelite 4995318

COLLAR- Set 1"

$

$

Currently unavailable

19

Homelite 4995319

SHAFT- Adjustment (includes Grease Fitting)

$

$

Currently unavailable

20

Homelite 4995317

FITTING- Grease

$10.99

$

Usually ships in 3-7 days

0

21

Homelite 4995320

PIN- Clevis

$

$

Currently unavailable

22

Homelite 4995364

VALVE- Water

$

$

Currently unavailable

23

Homelite 4995317

FITTING- Grease

$10.99

$

Usually ships in 3-7 days

0

24

Homelite 4995321

BLOCK- Bearing Flange

$

$

Currently unavailable

25

Homelite 82496

CAPSCREW- Hex Hd. 1/4-20 x 1" Grd. 5

$

$

Not available

26

Homelite 84020

WASHER- Sae 1/4" Dia.

$

$

Not available

27

Homelite 81204

LOCKNUT- Fiber Type 1/4-20

$5.99

$

Usually ships in 3-7 days

0

28

Homelite 4995325

SCREW- Adjustment

$

$

Not available

29

Homelite 4995326

KEY- Woodruff 1/8 x 5/8"

$

$

Currently unavailable

30

Homelite 4995327

SPACER- Tube

$

$

Currently unavailable

31

Homelite 4995328

HANDLE- Base

$

$

Currently unavailable

32

Homelite 4995329

NUT- Cap

$5.49

$

Usually ships in 3-7 days

0

33

Homelite 4995330

BOLT- Shoulder 3/8-16 x 1 1/4"

$19.99

$

Usually ships in 3-7 days

0

34

Homelite 4995331

HANDLE

$73.99

$

Usually ships in 3-7 days

0

35

Homelite 4995365

NIPPLE- Close 1/2" NPT

$

$

Currently unavailable

36

Homelite 4995333

SHAFT- Blade

$

$

Currently unavailable

37

Homelite 4995334

KEY- 1/4 x 2 1/2"

$7.49

$

Usually ships in 3-7 days

0

38

Homelite 4995335

BEARING- Pillow Block

$

$

Currently unavailable

39

Homelite JA400264

CAPSCREW- Hex Hd. 3/8-16 x 1 1/4" Grd. 5

$

$

Currently unavailable

40

Homelite 4995366

FITTING- 3/4" Garden Hose Swivel To 1/2" Female Pipe

$

$

Currently unavailable

41

Homelite 84117

WASHER- Sae 3/8" Dia.

$

$

Not available

42

Homelite 4995338

PULLEY

$

$

Currently unavailable

43

Homelite 4995339

FLANGE- Inner

$

$

Currently unavailable

44

Homelite 4995340

NUT- Flange, R.H,

$

$

Currently unavailable

45

Homelite 4995341

FLANGE- Outer with Pin

$

$

Not available

46

Homelite 4995342

PIN

$21.99

$

Usually ships in 3-7 days

0

47

Homelite 4995343

NUT- Flange, L.H.

$

$

Not available

48

Homelite 4995367

FILTER- Hose Washer

$7.49

$

Usually ships in 3-7 days

0

49

Homelite 4995345

GUARD- Blade

$

$

Currently unavailable

50

Homelite 4995346

FLAP- Splash

$

$

Not available

51

Homelite 88051

CAPSCREW- Hex Hd., #10-24 x 3/4" Grd. 5

$

$

Not available

52

Homelite 84003

WASHER- Flat #10

$2.49

$

Usually ships in 3-7 days

0

53

Homelite 81208

NUT- Hex #10-24 Unc.

$

$

Not available

54

Homelite 4995350

SPRING

$

$

Currently unavailable

55

Homelite 88051

CAPSCREW- Hex Hd. #10-24 x 3/4" Grd. 5

$

$

Not available

56

Homelite 82475

SCREW- Round Hd., Mach. #10-24 x 3/8"

$

$

Not available

57

Homelite 4995351

CAPSCREW- Hex Hd. 3/8-16 x 3 3/4" Ig.

$

$

Currently unavailable

58

Homelite 81247

LOCKNUT- Fiber Type, 3/8-16

$

$

Not available

59

Homelite 80083

CAPSCREW- Hex Hd., 5/16-18 x 3/4" Grd. 5

$

$

Not available

60

Homelite 80053

SCREW- Flat Hd. Mach. 1/4-20 x 3/4" lg.

$3.49

$

Usually ships in 3-7 days

0

61

Homelite 4995355

CLAMP- Water Tube

$

$

Currently unavailable

62

Homelite 81204

LOCKNUT- Fiber Type 1/4-20

$5.99

$

Usually ships in 3-7 days

0

63

Homelite 4995356

TUBE- Water

$

$

Currently unavailable

64

Homelite 4995357

PLUG- Pipe

$

$

Currently unavailable

65

Homelite 4995358

MANIFOLD

$

$

Currently unavailable

66

Homelite 4995359

ADAPTOR- Hose

$

$

Currently unavailable

67

Homelite 4995360

HOSE ASSEMBLY

$

$

Currently unavailable

68

Homelite 4995361

COUPLING- Pipe 1/2" NPT Galvanized

$

$

Currently unavailable

69

Homelite 4995362

NIPPLE- Pipe 1/2" NPT x 41/2" lg.

$

$

Currently unavailable

70

Homelite 4995363

ELBOW- Street 1/2" NPT Galvanized

$

$

Currently unavailable
