HWPS 26600RV (84649) - Snapper 26" Walk-Behind Mower, 6hp SPINDLE Parts Diagram

26" Walk-Behind Mower, 6hp

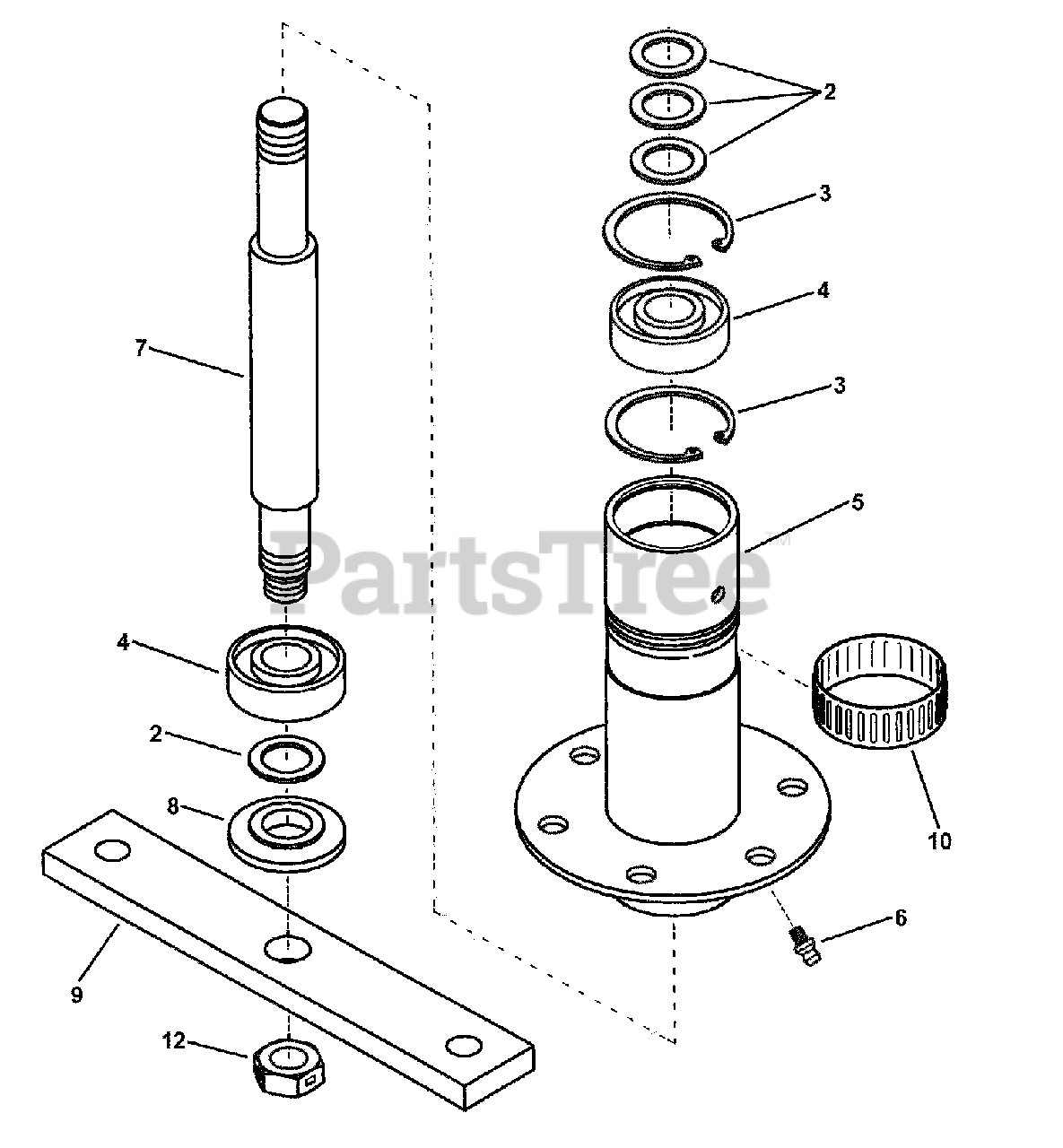

SPINDLE Parts Diagram

  • Title
1

Snapper 7058493

ASSEMBLY, Spindle Housing
(Superseded to 7058493YP)

Note: Includes items 2 thru 11

$396.99

$

Usually ships in 2-12 days

0

2

Snapper 7010935

WASHER, 49/64" Shim
(Superseded to 7010935SM)

$3.99

$

In Stock, Qty 20+

0

3

Snapper 7012491

RING, 1-3/4" External Retaining
(Superseded to 7012491SM)

$4.49

$

In Stock, Qty 20+

0

4

Snapper 7013313

BEARING, Spindle
(Superseded to 2108202SM)

$11.99

$

In Stock, Qty 20+

0

5

Snapper 7057860

HOUSING,Spindle
(Superseded to 7057860YP)

Note: Includes item 6

$91.99

$

Usually ships in 2-12 days

0

6

Snapper 7010817

FITTING, Lube (Press fit for .187 hole-no ball)
(Superseded to 7010817SM)

$4.49

$

In Stock, Qty 20+

0

7

Snapper 7046845

SPINDLE (8.96" long)
(Superseded to 7046845YP)

$46.99

$

Usually ships in 2-12 days

0

8

Snapper 7014407

WASHER, Spindle
(Superseded to 7014407SM)

$7.49

$

In Stock, Qty 18

0

9

Snapper 7031184

HOLDER, Blade
(Superseded to 7031184BMYP)

$70.99

$

In Stock, only 1 left!

0

10

Snapper 7012670

RING, Tolerance
(Superseded to 7012670YP)

$8.49

$

In Stock, Qty 6

0

12

Snapper 7090356

NUT, 5/8-18 Hex Center Lock
(Superseded to 7090356YP)

$5.49

$

In Stock, Qty 20+

0
