HWPS 26600RV (84649) - Snapper 26" Walk-Behind Mower, 6hp CUTTING DECK, DEFLECTOR Parts Diagram

26" Walk-Behind Mower, 6hp

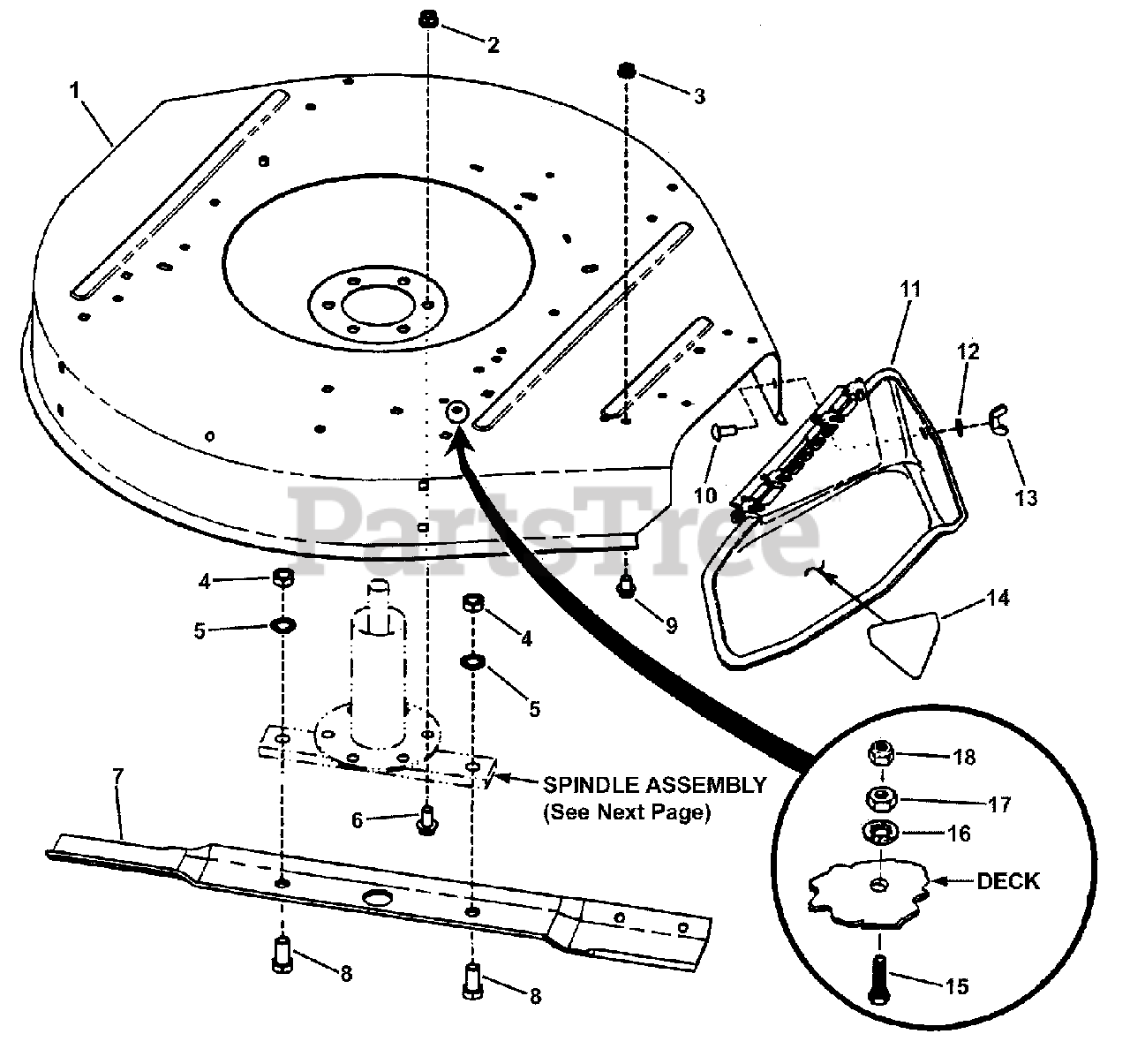

CUTTING DECK, DEFLECTOR Parts Diagram

  • Title

1

Snapper 7046846

DECK, 26"
(Superseded to 7046846YP)

$203.99

$

Usually ships in 2-12 days

0

2

Snapper 7091619

NUT, 3/8-16 Hex Flange Lock
(Superseded to 703333)

Note: Was 90613

$4.99

$

In Stock, Qty 20+

0

3

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock, GR5
(Superseded to 703409)

Note: Was 91070

$5.49

$

In Stock, Qty 20+

0

4

Snapper 7091939

NUT, 1/2-20 Hex-Jam
(Superseded to 7091939YP)

$3.49

$

In Stock, Qty 20+

0

5

Snapper 7090509

WASHER, 1/2" Internal Tooth Lock
(Superseded to 7090509YP)

$4.49

$

In Stock, Qty 10

0

6

Snapper 7091588

BOLT, 3/8-16 x 3/4" Hex Flange Lock
(Superseded to 703955)

Note: Was 90612

$4.49

$

In Stock, Qty 6

0

7

Snapper 7018068

BLADE, 26"
(Superseded to 7018068BMYP)

$34.99

$

In Stock, only 1 left!

0

8

Snapper 7090491

SCREW, 1/2-20 x 1" Hex Cap
(Superseded to 7090491YP)

$4.99

$

Usually ships in 2-12 days

0

9

Snapper 7090721

BOLT, 5/16-18 x 1/2" Hex Flange Lock GR5
(Superseded to 7090721YP)

$3.49

$

In Stock, only 4 left!

0

10

Snapper 7091508

BOLT, 5/16-18 x 3/4" Short Neck Carriage, GR5
(Superseded to 703185)

$3.49

$

In Stock, Qty 16

0

11

Snapper 7052553

DEFLECTOR, 26" Discharge
(Superseded to 7052553YP)

$243.99

$

In Stock, only 1 left!

0

12

Snapper 7090188

WASHER, 5/16" Flat
(Superseded to 703350)

Note: Was 91296

$4.49

$

In Stock, only 3 left!

0

13

Snapper 7091537

WING-NUT, 5/16-18
(Superseded to 7091537YP)

Note: Was 90492

$4.49

$

In Stock, only 3 left!

0

14

Snapper 7013010

DECAL, Danger, Cut Finger
(Superseded to 7013010SM)

$9.49

$

In Stock, Qty 11

0

15

Snapper 7027230

SCREW, 1/4-20 x 1" Hex Head Cap GR5
(Superseded to 703820)

$3.99

$

In Stock, only 4 left!

0

16

Snapper 7090053

WASHER, 1/4" Internal Tooth Lock
(Superseded to 703462)

Note: Was 91314

$4.49

$

In Stock, Qty 7

0

17

Snapper 7091576

NUT, 1/4-20 Hex
(Superseded to 703127)

Note: Was 90063

$3.49

$

In Stock, Qty 20+

0

18

Snapper 7091603

NUT, 1/4-20 Hex Nyloc
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0
