HWPS 26600RV (84649) - Snapper 26" Walk-Behind Mower, 6hp BLADE BRAKE, BELTS Parts Diagram

26" Walk-Behind Mower, 6hp

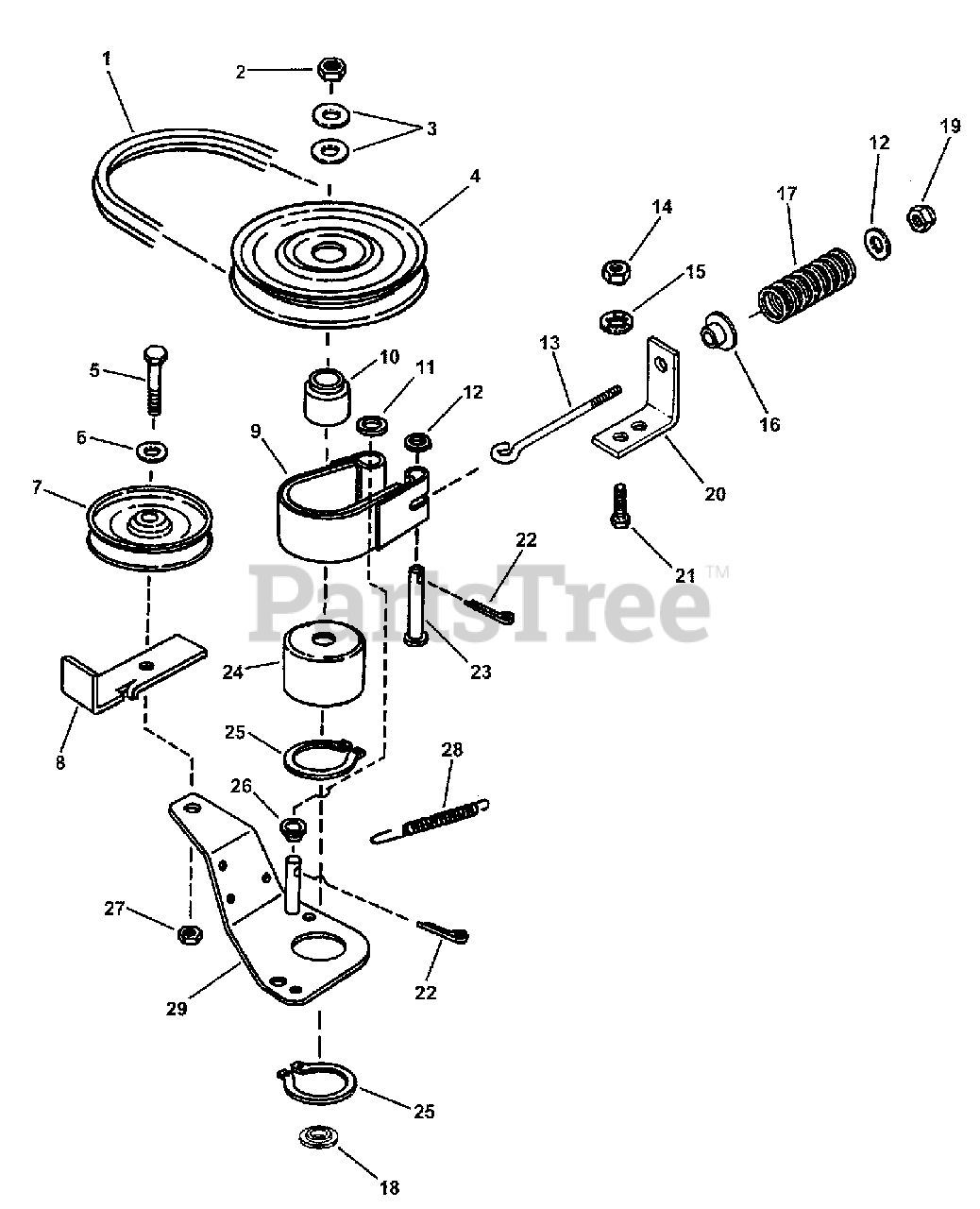

BLADE BRAKE, BELTS Parts Diagram

  • Title

1

Snapper 7046825

BELT, Engine Drive
(Superseded to 7046825YP)

Note: Section AA, 47.28" effective length

$31.99

$

In Stock, only 1 left!

0

2

Snapper 7074467

NUT, 3/4-16 Hex Jam GR 8
(Superseded to 7074467SM)

$4.49

$

In Stock, Qty 10

0

3

Snapper 7032027

WASHER, 49/64 x 1-1/2" Flat
(Superseded to 7032027SM)

$4.49

$

In Stock, Qty 7

0

4

Snapper 7018781

PULLEY, Deck Spindle
(Superseded to 7018781BMYP)

$43.99

$

In Stock, Qty 9

0

5

Snapper 7091517

SCREW, 3/8-24 x 1-3/4" Hex Head Cap GR5
(Superseded to 703866)

$4.49

$

In Stock, only 1 left!

0

6

Snapper 7090122

WASHER, 3/8" Flat
(Superseded to 703878)

Note: Was 91514

$3.99

$

In Stock, Qty 20+

0

7

Snapper 7029624

PULLEY, Idler
(Superseded to 7029624YP)

$35.99

$

In Stock, Qty 7

0

8

Snapper 7032111

RESTRICTOR, Belt
(Superseded to 7032111YP)

$6.99

$

In Stock, Qty 11

0

9

Snapper 7034852

BAND, Brake
(Superseded to 7600133YP)

Note: Was 63211

$41.99

$

In Stock, Qty 7

0

10

Snapper 7015290

HUB, Pulley
(Superseded to 7015290YP)

$6.49

$

In Stock, Qty 10

0

11

Snapper 7090122

WASHER, 3/8" Flat
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

12

Snapper 7091294

WASHER, 1/4" Flat
(Superseded to 703332)

Note: Was 90055

$4.49

$

In Stock, Qty 20+

0

13

Snapper 7046677

EYEBOLT, 1/4-20 x 4"
(Superseded to 7046677YP)

$6.99

$

Usually ships in 2-12 days

0

14

Snapper 7091297

NUT, 5/16-24 Hex
(Superseded to 703331)

Note: Was 90223

$3.99

$

In Stock, Qty 20+

0

15

Snapper 7090391

WASHER, 5/16" Internal Tooth Lock
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

16

Snapper 7014343

BUSHING, Flange
(Superseded to 7014343YP)

$3.99

$

In Stock, Qty 20+

0

17

Snapper 7046782

SPRING
(Superseded to 7046782YP)

$12.99

$

In Stock, only 1 left!

0

18

Snapper 7014407

WASHER, Spindle
(Superseded to 7014407SM)

$7.49

$

In Stock, Qty 18

0

19

Snapper 7091705

NUT, 1/4-20 Hex Top Lock
(Superseded to 704319)

Note: Was 90761

$3.49

$

Usually ships in 2-12 days

0

20

Snapper 7032243

ANCHOR
(Superseded to 7032243YP)

$8.99

$

Usually ships in 2-12 days

0

21

Snapper 7090233

SCREW, 5/16-24 x 3/4" Hex Head Cap GR5
(Superseded to 703336)

$4.49

$

In Stock, Qty 5

0

22

Snapper 7091597

PIN, 3/32 x 3/4" Cotter
(Superseded to 703312)

Note: Was 90037

$3.99

$

In Stock, Qty 20+

0

23

Snapper 7014304

PIN, 1/4 x 1-5/8" Clevis
(Superseded to 7014304YP)

$4.49

$

Usually ships in 2-12 days

0

24

Snapper 7035378

DRUM, Brake
(Superseded to 7035378YP)

$11.99

$

In Stock, only 2 left!

0

25

Snapper 7010740

RING, 2" External Retaining
(Superseded to 7010740YP)

$5.49

$

In Stock, only 3 left!

0

26

Snapper 7014314

SPACER
(Superseded to 7014314YP)

$4.99

$

In Stock, only 1 left!

0

27

Snapper 7091518

NUT, 3/8-24 Hex Nyloc
(Superseded to 703901)

$3.49

$

In Stock, Qty 5

0

28

Snapper 7024341

SPRING, Brake
(Superseded to 7024341YP)

$

$

Not available

29

Snapper 7047787

ARM, Idler
(Superseded to 706001)

$27.99

$

Usually ships in 2-12 days

0
