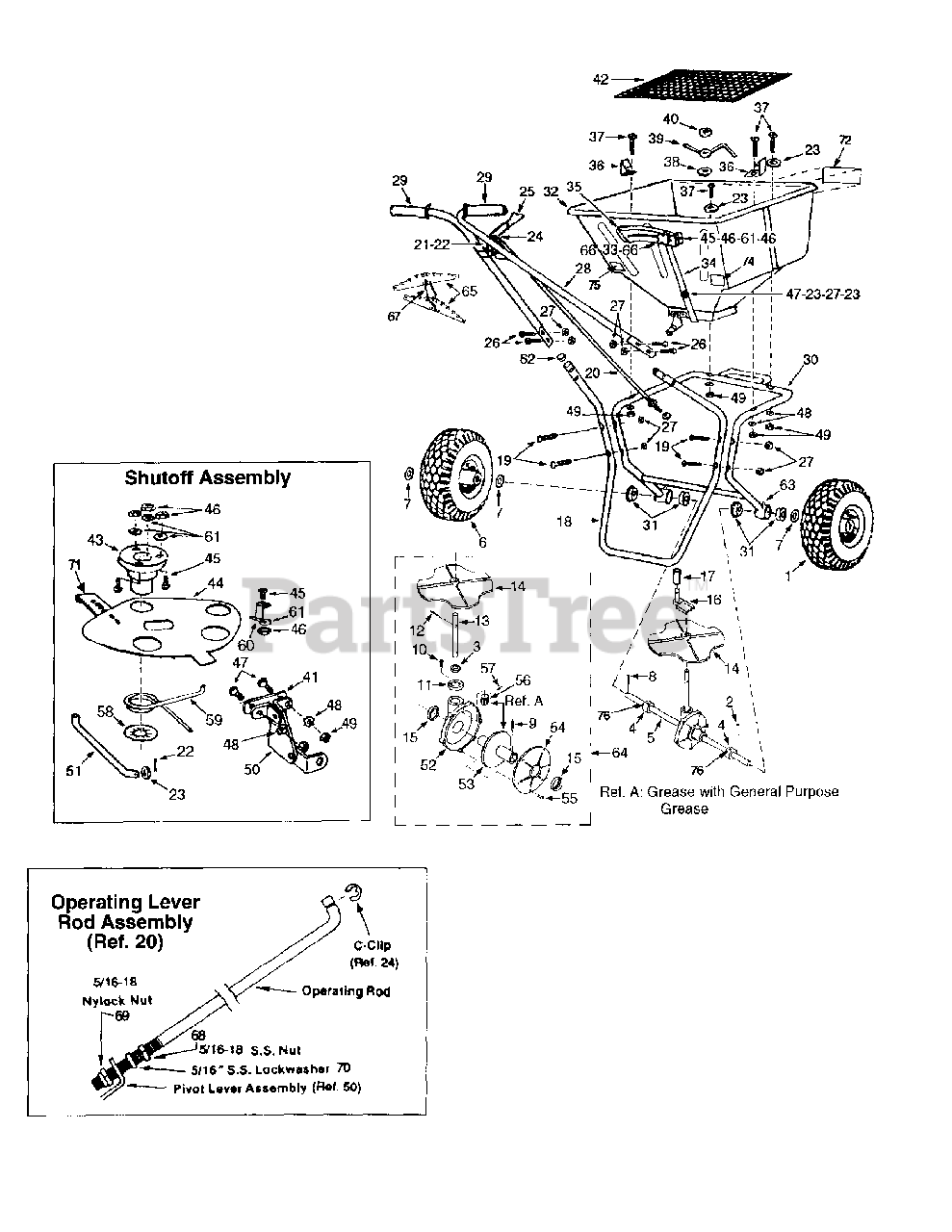

HWE 80 - MTD Pro Spreader Rotary Spreaders Parts Diagram

Pro Spreader

Rotary Spreaders Parts Diagram

  • Title

1

MTD 00018901

Drive Wheel, Composite

$

$

Not available

2

MTD 00060012

Cotter Pin, 3/16 x 1-3/4, SS
(Superseded to 714-05018)

$8.49

$

In Stock, only 1 left!

0

3

MTD 00030384

Seal, Gear Set Cap
(Superseded to 721-04820)

$16.99

$

Usually ships in 3-6 days

0

4

MTD 00060014

Shaft Collar, SS

$22.99

$

Usually ships in 3-6 days

0

5

MTD 00030383

Spreader Axle, SS

$40.99

$

In Stock, only 3 left!

0

6

MTD 00019790

Idler Wheel, Composite

Note: NLA

$

$

Not available

7

MTD 00060017

Spacer Washer, SS
(Superseded to 736-05151)

$4.49

$

In Stock, only 2 left!

0

9

MTD 00060019

Roll Pin, 5/32 x 1-/14, SS
(Superseded to 715-05054)

$4.99

$

In Stock, only 1 left!

0

10

MTD 00030415

Screw, #10 x 5/8 T-A Hex Slot Hd., SS
(Superseded to 710-06429)

$4.49

$

In Stock, only 2 left!

0

11

MTD 00030593

Cap, Gear Set
(Superseded to 731-11586)

$34.99

$

Usually ships in 3-6 days

0

12

MTD 00060069

Roll Pin, 1/8 x 7/8, SS

$4.99

$

In Stock, Qty 8

0

13

MTD 00030382

Impeller Shaft, SS
(Superseded to 711-06555)

$42.99

$

Usually ships in 3-6 days

0

14

MTD 00030317

Impeller

$59.99

$

In Stock, only 2 left!

0

15

MTD 00030385

Seal, Housing and Cover

$13.99

$

In Stock, only 2 left!

0

16

MTD 00030322

Agitator Arm and Shaft Assembly
(Superseded to 680-00430)

$45.99

$

Usually ships in 3-6 days

0

17

MTD 00060027

Bearing, Agitator Shaft
(Superseded to 741-05180)

$7.49

$

Usually ships in 3-6 days

0

18

MTD 00060028

Leg, Epoxy Finish

$

$

Not available

18

MTD 00009188

Leg, Stainless Steel

Note: NLA

$

$

Currently unavailable

19

MTD 00060029

Mach.Screw,1/4-20 x 2 Pan Phil. Hd., SS

$4.99

$

Usually ships in 3-6 days

0

20

MTD 00010087

Operating Lever Rod

$

$

Not available

21

MTD 00060031

Clevis Pin, 1/4 x 1/2, SS
(Superseded to 715-05056)

$9.49

$

In Stock, only 2 left!

0

22

MTD 00060032

Cotter Pin, 3/32 x 1/2, SS

$

$

Not available

23

MTD 00060033

Flat Washer 1/4" SAE, SS
(Superseded to 736-05152)

$7.99

$

Usually ships in 3-6 days

0

24

MTD 00010171

C-Clip
(Superseded to 726-05073)

$4.99

$

Usually ships in 3-6 days

0

25

MTD 00060034

Operating Lever and Rubber Handle
(Superseded to 680-00406)

$32.99

$

Usually ships in 3-6 days

0

26

MTD 00060035

Cap Screw 1/4-20 x 1-1/4 Hex Hd., SS

$

$

Not available

27

MTD 712-0324

Hex Nut 1/4-20 Nylock, SS

$3.99

$

In Stock, Qty 16

0

28

MTD 01003343

Handle, Epoxy Finish

Note: NLA

$

$

Not available

28

MTD 00020270

Handle, Stainless Steel

$

$

Not available

29

MTD 00060038

Flanged Grip, Black, 3/4 x 4

$

$

Not available

30

MTD 00013206

Uni-Frame, Epoxy Finish

$

$

Not available

30

MTD 00020556

Uni-Frame, Stainless Steel

Note: NLA

$

$

Currently unavailable

31

MTD 00018963

Axle Bushing, Composite
(Superseded to 741-05179)

$8.49

$

Usually ships in 3-6 days

0

32

MTD 01001004

Hopper

$

$

Not available

33

MTD 00060043

Rate Control Knob

$13.99

$

Usually ships in 3-6 days

0

34

MTD 00060044

Rate Control Arm
(Superseded to 680-00407)

$45.99

$

Usually ships in 3-6 days

0

35

MTD 00060045

Rate Control Plate

Note: NLA

$

$

Not available

36

MTD 00060046

Screen Clip, SS
(Superseded to 703-10298)

$10.99

$

In Stock, only 2 left!

0

37

MTD 00060047

Mach. Screw, 1/4-20 x 1-1/2 Rd. Phil. Hd., SS

$4.99

$

Usually ships in 3-6 days

0

38

MTD 00005530

Flat Washer, 3/8 Nylon
(Superseded to 736-04070)

$

$

Not available

39

MTD 00060049

Agitator Arm
(Superseded to 680-00408)

$29.99

$

In Stock, only 4 left!

0

40

MTD 00060050

Spring Clip
(Superseded to 712-05144)

$8.99

$

In Stock, only 1 left!

0

41

MTD 01004539

Plate, Two-Hole, Weldment
(Superseded to 680-00405)

$35.99

$

Usually ships in 3-6 days

0

42

MTD 00060052

Screen

$

$

Not available

43

MTD 00060053

Shaft Support, Impeller

$12.99

$

Usually ships in 3-6 days

0

44

MTD 00020491

Shutoff Plate

$36.99

$

Usually ships in 3-6 days

0

45

MTD 00031686

Mach. Screw, #8-32 x 112 Pan Phil. Hd., SS

$6.99

$

Usually ships in 3-6 days

0

46

MTD 00060056

Hex Nut, #8-32, SS

$6.99

$

In Stock, only 1 left!

0

47

MTD 00060057

Mach. Screw, 1/4-20 x 718 Pan Phil. Hd.,SS

$5.49

$

Usually ships in 3-6 days

0

48

MTD 00060058

Lock Washer, 1/4, SS

$

$

Not available

49

MTD 00060059

Hex Nut, 1/4-20, SS

$3.49

$

Usually ships in 3-6 days

0

50

MTD 00060060

Pivot Lever Assembly
(Superseded to 680-00409)

$34.99

$

Usually ships in 3-6 days

0

51

MTD 00060061

Pivot Lever Rod
(Superseded to 747-06600)

$27.99

$

Usually ships in 3-6 days

0

52

MTD 00030591

Housing, Gear Set
(Superseded to 731-11584)

$54.99

$

Usually ships in 3-6 days

0

53

MTD 00030594

Gear
(Superseded to 731-11587)

$41.99

$

Usually ships in 3-6 days

0

54

MTD 00030592

Cover, Gear Set
(Superseded to 731-11585)

$42.99

$

Usually ships in 3-6 days

0

55

MTD 01000129

Screw, #6 x 5/8, SS
(Superseded to 710-06432)

$3.99

$

In Stock, only 3 left!

0

56

MTD 00030595

Pinion Gear
(Superseded to 731-11588)

$22.99

$

In Stock, only 4 left!

0

57

MTD 00060022

Roll Pin, 1/8 x 5/8, SS

$4.49

$

In Stock, Qty 9

0

58

MTD 01004186

Spring Clip 3/4, SS
(Superseded to 726-05074)

$11.99

$

In Stock, only 1 left!

0

59

MTD 00060065

Rate Control Spring

$

$

Not available

60

MTD 00060066

Shutoff Plate Clip
(Superseded to 726-05075)

$6.49

$

Usually ships in 3-6 days

0

61

MTD 00060083

Lock Washer #8 Star, SS

$3.99

$

Usually ships in 3-6 days

0

62

MTD 00060080

Plug, Plastic (Epoxy Frame)

$

$

Not available

62

MTD 00020913

Plug, Plastic (Stainless Frame)
(Superseded to 731-11580)

$4.49

$

Usually ships in 3-6 days

0

63

MTD 737-04345

Grease Fitting, 1/4-28 Straight

$4.99

$

In Stock, Qty 6

0

64

MTD 01002280

Kit, Impeller and Gear Set

$

$

Not available

65

MTD 01002281

Calibration Gauges (Odd)

Note: NLA

$

$

Currently unavailable

65

MTD 01002282

Calibration Gauge (Even)

Note: NLA

$

$

Currently unavailable

66

MTD 01000128

Nylon Washer
(Superseded to 736-05154)

$4.49

$

Usually ships in 3-6 days

0

67

MTD 00009941

Chain
(Superseded to 713-05035)

$4.49

$

Usually ships in 3-6 days

0

68

MTD 00060071

Hex Nut
(Superseded to 712-05158)

$4.49

$

In Stock, only 4 left!

0

69

MTD 912-0429

Nylock Nut
(Superseded to 712-0429)

$4.49

$

In Stock, Qty 20+

0

70

MTD 00060073

Locking Washer

$

$

Not available

71

MTD 00020492

Slide Plate
(Superseded to 703-10296)

$8.49

$

Usually ships in 3-6 days

0

72

MTD 01001006

MTD Decal

Note: NLA

$

$

Currently unavailable

73

MTD 01002122

Parts List and Instructions

Note: NLA

$

$

Currently unavailable

74

MTD 01002100

80 lb. Capacity Decal

$

$

Not available

75

MTD 00090006

USA Decal

$

$

Not available

76

MTD 00010985

Set Screw

$

$

Not available

77

MTD 00016354

Box

Note: NLA

$

$

Currently unavailable

MTD 01002274

Jet Action Deflector Ass'y.

Note: (not shown)

$

$

Not available

MTD 01001375

Hopper Cover

Note: NLA

$

$

Currently unavailable
