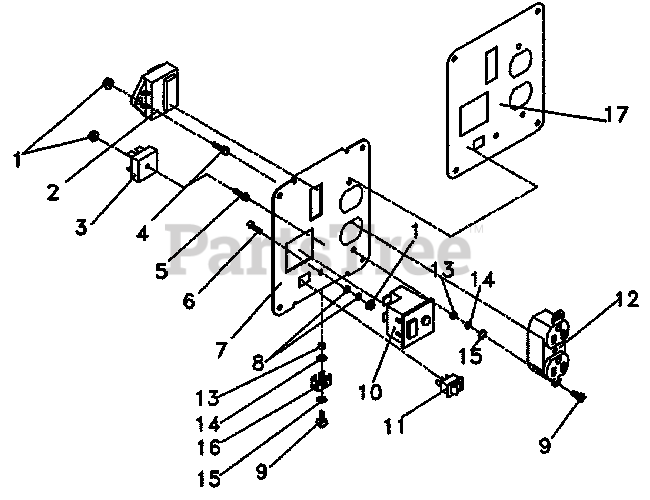

HW1600 (0060650) - Honeywell Portable Generator (SN: 6284450C - 6369952C) (2011) No Assembly Title Parts Diagram

Portable Generator

No Assembly Title Parts Diagram

  • Title

1

Generac 0H63620142

NUT, HEX/ FLANGED, M5

$0.99

$

Usually ships in 2-12 days

0

2

Generac 0H43470210

IGNITION W/LED INDICATOR

$

$

Not available

3

Generac 0H43470211

RECTIFIER 1010A

$

$

Not available

4

Generac 0H63620170

BOLT, IGNITION APPARATUS

Note: THIS IS PART OF THE CONTROL PANEL PLATE. CAN NOT BE ORDERED. MUST ORDER 0H63620172.

$

$

Currently unavailable

5

Generac 0H63620171

BOLT, HEX, WITH FLANGE

$

$

Currently unavailable

6

Generac 0H43470142

BOLT, HEX, WITH FLANGE

$0.99

$

Usually ships in 2-12 days

0

7

Generac 0H63620172

CONTROL PLATE ASSEMBLY

$

$

Currently unavailable

8

Generac 0H43470161

WASHER, FLAT

$0.99

$

In Stock, only 3 left!

0

9

Generac 0H43470214

SCREW, RECESSED PAN HEAD

$0.99

$

Usually ships in 2-12 days

0

10

Generac 0H63620173

12VDC PLUG ASSY.

$21.99

$

Usually ships in 2-12 days

0

11

Generac 0H43470215

SWITCH, FLEXPOWER

$3.49

$

Usually ships in 2-12 days

0

12

Generac 0H63620174

120V OUTLET ASSY.

$13.99

$

Usually ships in 2-12 days

0

13

Generac 0H63620175

NUT, I- TYPE HEX

$0.99

$

Usually ships in 2-12 days

0

14

Generac 0H63620176

WASHER, SPRING, STANDARD

$

$

Currently unavailable

15

Generac 0H43470207

WASHER, FLAT

$0.99

$

Usually ships in 2-12 days

0

16

Generac 0H63620177

PEG, GROUND CONNECTION

Note: THIS IS NOT AVAILABLE SEPERATE. COMES WELDED TO CONTROL PANEL 0H63620172.

$

$

Currently unavailable

17

Generac 0J3274

DECAL, CONTROL PLATE

$

$

Currently unavailable
