HW-660 (12A-539D190) - White Outdoor 22" Walk-Behind Mower (1997) Handle, Wheel Ass'y, And Deck Ass'y Parts Diagram

22" Walk-Behind Mower

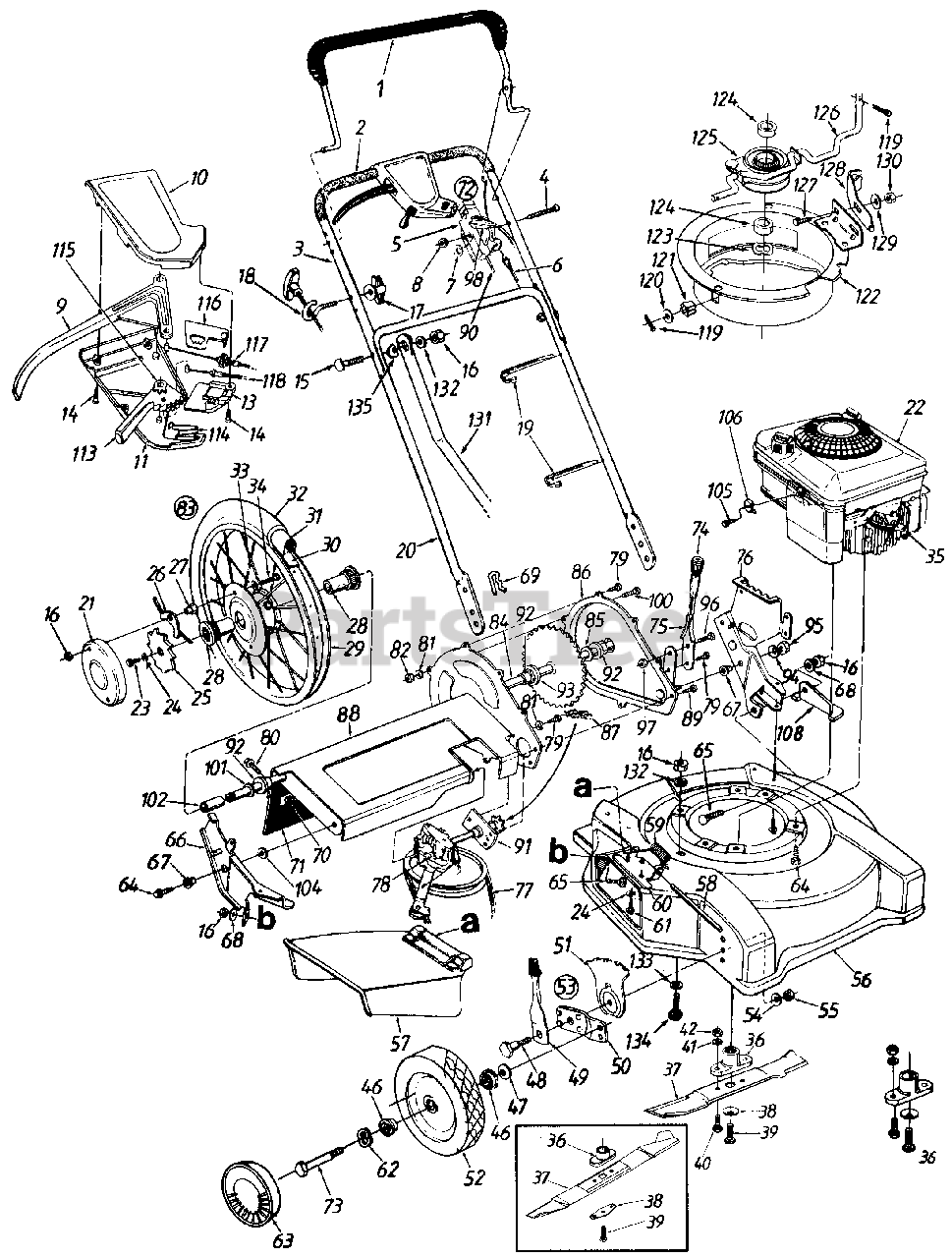

Handle, Wheel Ass'y, And Deck Ass'y Parts Diagram

  • Title

1

White Outdoor 647-0004

Control Handle Ass'y.
(Superseded to 747-0824B-0637)

$65.99

$

In Stock, only 1 left!

0

2

White Outdoor 720-0294

Foam Grip
(Superseded to 720-0294A)

$7.49

$

In Stock, Qty 5

0

3

White Outdoor 749-0539B

Upper Handle
(Superseded to 749-0539C-0637)

Variations

White Outdoor 749-0539B-0637

UPPER HANDLE BLACK - POWDER BLACK (0637)

$53.99

$

Usually ships in 3-6 days

0

$53.99

$

Usually ships in 3-6 days

0

4

White Outdoor 710-0605

Oval C-Sunk Scr.

$4.49

$

In Stock, only 3 left!

0

5

White Outdoor 646-0875

Throttle Body
(Superseded to 946-0875)

$9.49

$

In Stock, only 4 left!

0

6

White Outdoor 746-0550

Control Cable - 39" Lg.
(Superseded to 946-0550)

$21.99

$

In Stock, only 3 left!

0

7

White Outdoor 736-0501

Spring Wash. .66" I.D.
(Superseded to 936-0501)

$6.99

$

Usually ships in 3-6 days

0

8

White Outdoor 712-0324

Hex L-Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 17

0

9

White Outdoor 731-0620

Control Lever
(Superseded to 731-0620A)

$15.99

$

In Stock, only 1 left!

0

10

White Outdoor 731-0904

Control Cover Half - Upper
(Superseded to 753-0717)

$

$

Not available

11

White Outdoor 731-0905

Control Cover Half - Lower
(Superseded to 753-0717)

$

$

Not available

?12

White Outdoor 746-0710A

Self-Propelled Cable - 48" Lg.
(Superseded to 946-0710A)

$40.99

$

In Stock, only 4 left!

0

13

White Outdoor 731-0906

Cable Mounting Cap
(Superseded to 753-0717)

$

$

Not available

14

White Outdoor 710-0841

Fl-"C" Sunk Scr. #10 x .75"

$4.49

$

Usually ships in 3-6 days

0

15

White Outdoor 710-0671

Curved Hd. Bolt 5/16-18 x 1.38"

$

$

Not available

16

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

17

White Outdoor 720-0279

Handle Knob 1/4-20 Thd.

$4.49

$

Usually ships in 3-6 days

0

18

White Outdoor 710-1205

Rope Guide

$3.99

$

In Stock, only 1 left!

0

19

White Outdoor 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, only 2 left!

0

20

White Outdoor 749-0734B

Lower Handle
(Superseded to 749-0734B-0637)

Variations

White Outdoor 749-0734B-0637

LOWER HANDLE - POWDER BLACK (0637)

$

$

Not available

$

$

21

White Outdoor 14967

Wheel Cover

$

$

Not available

22

Engine

$

$

Not available

White Outdoor 751B281451

Engine Shroud

Note: (Not shown)

$

$

Not available

23

White Outdoor 710-0812

Hex Bolt 1/4-20 x .75" Lg. (Gr. 5)

$

$

Not available

24

White Outdoor 736-0270

Bell-Wash. 1/4" I.D.

$3.99

$

In Stock, Qty 20+

0

25

White Outdoor 748-0312

Wheel Ratchet

$

$

Not available

26

White Outdoor 748-0315

Pawl and Spring Ass'y.

$15.99

$

Usually ships in 3-6 days

0

27

White Outdoor 712-0329

Special Hex Nut 5/16-18 Thd.

$

$

Not available

28

White Outdoor 741-0485

Flange Bearing .63" I.D.
(Superseded to 941-0485)

$

$

Not available

29

White Outdoor 734-1399

Rim Ass'y. Only 16" x 2.1"

$

$

Not available

30

White Outdoor 734-1400

Rimstrip 16" x 7/8"

$

$

Not available

31

White Outdoor 734-1397

Inner Tube 16" x 2.12"

$

$

Not available

32

White Outdoor 734-1396

Chevron Tire 16" x 2.125"

$

$

Not available

33

White Outdoor 736-0104

Intern. L-Wash. 5/16" I.D.
(Superseded to 936-0104)

$4.99

$

Usually ships in 3-6 days

0

34

White Outdoor 710-0376

Hex Bolt 5/16-18 x 1.0" (Gr. 5)

$3.99

$

In Stock, only 4 left!

0

35

White Outdoor 735-0639

Spark Plug Boot

Note: (Optional)

$

$

Not available

36

White Outdoor 753-0484

Blade Adapter Kit

Note: For model with Three-Bolt Blade

$23.99

$

In Stock, only 1 left!

0

White Outdoor 748-0376B

Blade Adapter Kit
(Superseded to 748-0376E)

$20.99

$

In Stock, Qty 5

0

37

White Outdoor 742-0622

22" Blade
(Superseded to 942-0622)

$

$

Not available

38

White Outdoor 736-0452

Bell Wash. .39" I.D.

$4.99

$

In Stock, Qty 7

0

White Outdoor 736-0524A

Bell Support
(Superseded to 736-0524B-1)

Note: For model with Three-Bolt Blade

$5.99

$

In Stock, Qty 20+

0

39

White Outdoor 710-1044

Hex Bolt 3/8-24 x 1.5" Lg.

$3.99

$

In Stock, Qty 9

0

40

White Outdoor 710-1055

Hex Bolt 3/8-24 x 1" Lg.

$4.99

$

Usually ships in 3-6 days

0

41

White Outdoor 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

42

White Outdoor 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

46

White Outdoor 741-0484

Ball Bearing 1/2" I.D.
(Superseded to 941-0484)

$7.49

$

In Stock, only 1 left!

0

47

White Outdoor 736-0105

Bell-Wash. .38" I.D.

$4.49

$

In Stock, Qty 20+

0

48

White Outdoor 738-0507B

Shld. Bolt .5"

$4.49

$

In Stock, only 4 left!

0

49

White Outdoor 14832

Spring Lever Ass'y. w/Knob
(Superseded to 94832)

$10.99

$

In Stock, only 3 left!

0

50

White Outdoor 15262B

Pivot Bar

Variations

White Outdoor 15262B-0637

PIVOT BAR - POWDER BLACK (0637)

$14.99

$

In Stock, only 1 left!

0

$14.99

$

In Stock, only 1 left!

0

51

White Outdoor 15261A

Height Adj. Plate
(Superseded to 787-01290A)

$12.99

$

In Stock, only 2 left!

0

52

White Outdoor 734-1819

Wheel Ass'y. Comp.
(Superseded to 734-1978)

$48.99

$

Usually ships in 3-6 days

0

53

White Outdoor 14578

Height Adj. Ass'y. Comp. - R.H.
(Superseded to 753-06761)

$65.99

$

In Stock, Qty 7

0

White Outdoor 14579

Height Adj. Ass'y. Comp. - L.H.
(Superseded to 753-06761)

Note: (Not shown)

$65.99

$

In Stock, Qty 7

0

54

White Outdoor 736-0356

Bell-Wash. .39" I.D. x 1.38"
(Superseded to 936-0356)

$

$

Not available

55

White Outdoor 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, only 2 left!

0

56

White Outdoor 682-0001A

22" Deck Ass'y.

Variations

White Outdoor 682-0001A-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 682-0001A-0667

No Longer Available - MIDNIGHT BLUE (0667)

$

$

Not available

White Outdoor 682-0001A-0691

No Longer Available - BLACK JACK (0691)

$

$

Not available

$

$

57

White Outdoor 731-1034

Chute Deflector Ass'y.
(Superseded to 931-1034B)

$72.99

$

In Stock, Qty 6

0

58

White Outdoor 747-0710

Hinge Pin
(Superseded to 747-0710A)

$4.49

$

In Stock, Qty 20+

0

?59

White Outdoor 732-0593

Torsion Spring
(Superseded to 932-0593)

$4.99

$

In Stock, only 3 left!

0

60

White Outdoor 17032

Adapter Plate
(Superseded to 17032A)

$10.99

$

In Stock, only 2 left!

0

61

White Outdoor 710-0599

Hex TT-Tap Scr. 1/4-20 x .5"

$4.49

$

In Stock, Qty 20+

0

62

White Outdoor 736-0504

Wave Wash. .51" I.D. x .78"
(Superseded to 936-0504)

$4.49

$

In Stock, Qty 10

0

63

White Outdoor 731-0981A

Hub Cap
(Superseded to 731-0981C)

$10.99

$

Usually ships in 3-6 days

0

64

White Outdoor 710-0654A

Hex TT-Tap Scr. 3/8-16 x 1"

$4.49

$

In Stock, only 3 left!

0

65

White Outdoor 710-0260

Carriage Bolt 5/16-18 x .62" Lg.
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

66

White Outdoor 16136C

Handle Brkt. Ass'y. - R.H.
(Superseded to 16136C-0637)

Variations

White Outdoor 16136C-0637

BRACKET ASSY-RH HN - POWDER BLACK (0637)

$

$

Not available

$

$

67

White Outdoor 750-0624

Shld. Spacer .5" x .10"

$

$

Not available

68

White Outdoor 736-0242

Bell-Wash. 5/16" I.D.

$4.49

$

In Stock, Qty 20+

0

69

White Outdoor 714-0104

Intern. Cotter Pin 5/16" Dia.

$4.49

$

In Stock, Qty 20+

0

70

White Outdoor 16563A

Retaining Strip

$

$

Not available

71

White Outdoor 731-1172

Rear Flap

$

$

Not available

72

White Outdoor 811-00185

Throttle Box Comp.
(Superseded to 811-0185)

Note: (Incl. Ref. 4, 5, 7, 8, 98)

$36.99

$

In Stock, only 1 left!

0

73

White Outdoor 738-0102

Front Axle Bolt

$9.99

$

In Stock, Qty 10

0

74

White Outdoor 720-0223

Grip

$14.99

$

In Stock, Qty 6

0

75

White Outdoor 732-0655

Height Adjustment Lever

$

$

Not available

76

White Outdoor 682-3004

Handle Brkt. Ass'y.- L.H.

Variations

White Outdoor 682-3004-0637

No Longer Available BRACKET-LH - POWDER BLACK (0637)

$

$

Not available

$

$

77

White Outdoor 754-0369

"V" Belt
(Superseded to 954-0369)

$28.99

$

In Stock, only 1 left!

0

78

White Outdoor 717-0417B

Trans. Comp.
(Superseded to 917-0417B)

Note: (See Breakdown)

$234.99

$

Usually ships in 3-6 days

0

79

White Outdoor 710-0352

Hex B-Tap Scr. 1/4 x .38" Lg.

$4.99

$

Usually ships in 3-6 days

0

80

White Outdoor 710-0776A

Hex AB-Tap Scr. 1/4 x .62" Lg.
(Superseded to 710-0896)

$4.49

$

In Stock, Qty 20+

0

81

White Outdoor 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

82

White Outdoor 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

83

White Outdoor 734-1398

Wheel Ass'y. Comp.

$

$

Not available

84

White Outdoor 713-0425

Sprocket and Axle Ass'y.

$

$

Not available

85

White Outdoor 736-0256

Fl-Wash. .635" I.D. x 1.0" O.D.
(Superseded to 936-0256)

$7.49

$

Usually ships in 3-6 days

0

86

White Outdoor 682-7501

Chaincase and Arm Ass'y.

Variations

White Outdoor 682-7501-0480

No Longer Available HOUSING-CHAIN CASE - BRILLIANT GREEN (0480)

$

$

Not available

White Outdoor 682-7501-0638

No Longer Available HOUSING-CHAIN CASE - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 682-7501-0662

No Longer Available HOUSING-CHAIN CASE - OYSTER GRAY (0662)

$

$

Not available

$

$

87

White Outdoor 713-0257

#48 Chain 1/2" Pitch x 52 Links
(Superseded to 713-0135)

$

$

Not available

88

White Outdoor 682-7500

Rear Drive Support Ass'y.

Variations

White Outdoor 682-7500-0498

No Longer Available SUPPORT ASSY-DRIVE - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 682-7500-0629

No Longer Available SUPPORT ASSY-DRIVE - SILVER FLAKE (0629)

$

$

Not available

White Outdoor 682-7500-0637

No Longer Available SUPPORT ASSY-DRIVE - POWDER BLACK (0637)

$

$

Not available

White Outdoor 682-7500-0638

No Longer Available SUPPORT ASSY-DRIVE - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 682-7500-0662

No Longer Available SUPPORT ASSY-DRIVE - OYSTER GRAY (0662)

$

$

Not available

$

$

89

White Outdoor 710-0599

Hex TT-Tap Scr. 1/4-20 x .5"

$4.49

$

In Stock, Qty 20+

0

90

White Outdoor 746-0843

Throttle Cable - 55" Lg.
(Superseded to 946-0671A)

$14.99

$

Usually ships in 3-6 days

0

91

White Outdoor 16500A

Hex Bearing Cup
(Superseded to 16500A-0637)

Variations

White Outdoor 16500A-0637

BEARING-CUP HEX - POWDER BLACK (0637)

$8.99

$

Usually ships in 3-6 days

0

$8.99

$

Usually ships in 3-6 days

0

92

White Outdoor 741-0413

Hex Flange Brg. .631" I.D.

$9.99

$

Usually ships in 3-6 days

0

93

White Outdoor 748-0313

Spacer .63" I.D. x 1.25"

$3.99

$

Usually ships in 3-6 days

0

?94

White Outdoor 736-0300

Fl-Wash. .385" I.D. x .87" O.D.

$4.49

$

In Stock, Qty 20+

0

95

White Outdoor 712-0296

Hex L-Nut 3/8-24 Thd.
(Superseded to 912-0296)

$2.99

$

In Stock, only 1 left!

0

96

White Outdoor 710-0201

Hex Bolt 3/8-16 x .62" Lg.

$

$

Not available

97

White Outdoor 712-0431

Flanged L-Nut 3/8-16 Thd.
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

98

White Outdoor 746-0876

Throttle Lever
(Superseded to 946-0876)

$8.49

$

In Stock, only 2 left!

0

?99

White Outdoor 710-0603

Hex B-Tap Scr. 5/16-18 x .5"

$4.99

$

Usually ships in 3-6 days

0

100

White Outdoor 710-0289

Hex Bolt 1/4-20 x .5" Lg.
(Superseded to 910-0289)

$3.99

$

In Stock, only 3 left!

0

101

White Outdoor 736-0302

Fl-Wash. .632" I.D. x .943"

$

$

Not available

102

White Outdoor 750-0547

Spacer .628" I.D. x .875"

$5.99

$

In Stock, only 2 left!

0

104

White Outdoor 736-0258

Fl-Wash. .38" I.D. x 1" O.D.

$4.49

$

In Stock, only 4 left!

0

105

White Outdoor 710-1237

Wash. Hd. Scr. #10-32 x .62" Lg.

$4.49

$

Usually ships in 3-6 days

0

106

White Outdoor 751B213146

Casing Clamp
(Superseded to BS-690798)

$5.49

$

In Stock, only 1 left!

0

108

784-9014

Deck Bracket

$

$

Not available

113

White Outdoor 731-0924

6-Spd. Shift Lever

$

$

Not available

114

White Outdoor 732-0627

Shift Lever Spring
(Superseded to 732-0627A)

$9.49

$

In Stock, only 4 left!

0

115

White Outdoor 713-0397

3-Tooth Rack Gear Insert
(Superseded to 913-0397)

$5.49

$

In Stock, only 4 left!

0

116

White Outdoor 16864

6-Speed Rack Cable Brkt.

$11.99

$

Usually ships in 3-6 days

0

117

White Outdoor 746-0710A

S.P. Cable
(Superseded to 946-0710A)

$40.99

$

In Stock, only 4 left!

0

118

White Outdoor 746-0706

Spd. Control Cable - 50" Lg.

$

$

Not available

119

White Outdoor 714-0507

Cotter Pin 3/32" Dia.

$4.49

$

In Stock, only 2 left!

0

120

White Outdoor 736-0278

Fl-Wash. .33" I.D. x .687" O.D.

$5.99

$

Usually ships in 3-6 days

0

121

White Outdoor 731-1137

Flanged Bushing
(Superseded to 931-1137)

$

$

Not available

122

White Outdoor 682-7515

Drive Housing Ass'y.

Variations

White Outdoor 682-7515-0637

No Longer Available HOUSING ASSY-DRIVE - POWDER BLACK (0637)

$

$

Not available

$

$

123

White Outdoor 736-0526

Wave Wash. .88" I.D. x 1.38"

$6.99

$

Usually ships in 3-6 days

0

124

White Outdoor 750-0968

Spacer .885" I.D. x 1" O.D.
(Superseded to 950-0968)

$5.99

$

Usually ships in 3-6 days

0

125

White Outdoor 656-0611

Pulley Ass'y.
(Superseded to 956-0611)

$268.99

$

Usually ships in 3-6 days

0

126

White Outdoor 747-0684

Shift Rod

$

$

Not available

127

White Outdoor 710-0167

Carr. Bolt 1/4-20 x .5" Lg.
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

128

White Outdoor 17070

6-Speed Adj. Cable Brkt.
(Superseded to 17070-0637)

Variations

White Outdoor 17070-0637

BRACKET-ADJ CABLE - POWDER BLACK (0637)

$

$

Not available

$

$

129

White Outdoor 736-0270

Bell-Wash. .265" I.D.

$3.99

$

In Stock, Qty 20+

0

130

White Outdoor 712-0291

Hex L-Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 8

0

131

White Outdoor 749-0939

Handle Strut

Variations

White Outdoor 749-0939-0637

HANDLE BAR STRUT BLACK - POWDER BLACK (0637)

$

$

Not available

White Outdoor 749-0939-0638

HANDLE BAR STRUT BLACK - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 749-0939-0662

HANDLE BAR STRUT BLACK - OYSTER GRAY (0662)

$

$

Not available

$

$

132

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

133

White Outdoor 736-0226

Fl-Wash. 7/16" I.D. x 7/8" O.D.
(Superseded to 936-0226)

$3.99

$

In Stock, only 1 left!

0

134

White Outdoor 710-0260

Carriage Bolt 5/16-18 x .62" Lg.
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

135

White Outdoor 736-0451

Saddle Wash. .32" I.D. x .93"

$4.49

$

Usually ships in 3-6 days

0
