HW-656 (12A-569I190) - White Outdoor 21" Walk-Behind Mower (2000) General Assembly Parts Diagram

21" Walk-Behind Mower

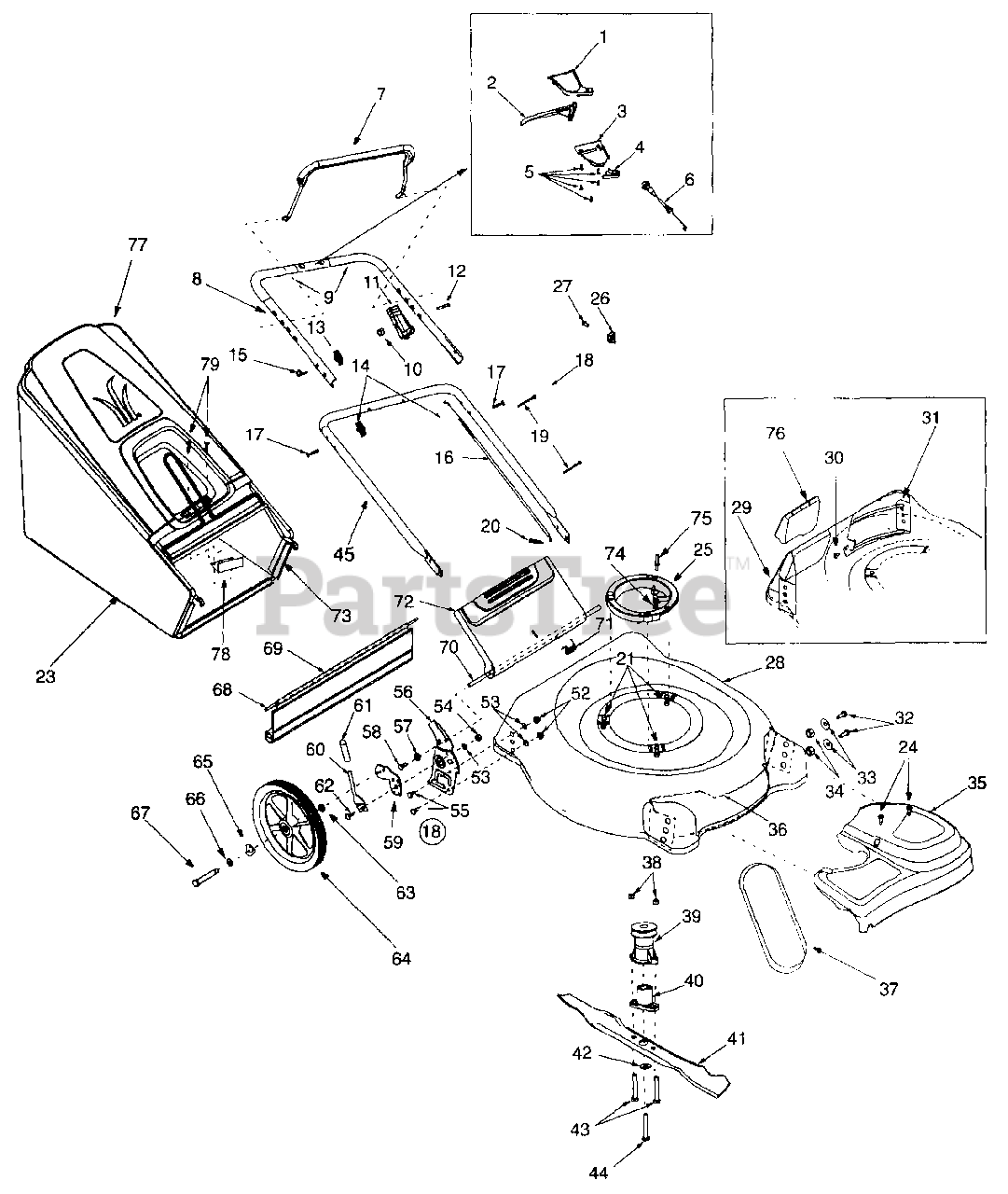

General Assembly Parts Diagram

  • Title

1

White Outdoor 731-1057

Upper Drive Cover
(Superseded to 753-0833)

$50.99

$

In Stock, only 2 left!

0

2

White Outdoor 731-0620

Drive Lever
(Superseded to 731-0620A)

$15.99

$

In Stock, only 1 left!

0

3

White Outdoor 731-1058

Lower Drive Cover
(Superseded to 753-0833)

$50.99

$

In Stock, only 2 left!

0

4

White Outdoor 731-1059

Mounting Cap
(Superseded to 753-0833)

$50.99

$

In Stock, only 2 left!

0

5

White Outdoor 710-0841

Screw # 10-12 x .75

$4.49

$

Usually ships in 3-6 days

0

6

White Outdoor 746-0960

Drive Cable
(Superseded to 946-0960)

$49.99

$

Usually ships in 3-6 days

0

7

White Outdoor 647-0004

Deluxe Control Lever
(Superseded to 747-0824B-0637)

$65.99

$

In Stock, only 1 left!

0

8

White Outdoor 749-0439B

Upper Handle
(Superseded to 749-0439E-0637)

Note: (Incl. Ref. No. 9)

Variations

White Outdoor 749-0439B-0637

Short Upper Handle, Black - POWDER BLACK (0637)

$47.99

$

In Stock, only 1 left!

0

$47.99

$

In Stock, only 1 left!

0

9

White Outdoor 720-0294

Foam Grip, 9"
(Superseded to 720-0294A)

$7.49

$

In Stock, only 3 left!

0

10

712-0234

Hex Lock Nut, 1/4-20

$

$

Not available

11

White Outdoor 746-0883

Throttle Housing

$16.99

$

In Stock, only 3 left!

0

12

White Outdoor 710-1270

Oval C-Sunk Screw 1/4-20 x 1.31

$4.49

$

Usually ships in 3-6 days

0

13

White Outdoor 720-0279

Handle Knob

$4.49

$

In Stock, Qty 20+

0

14

White Outdoor 720-0276

Handle Knob
(Superseded to 920-0276)

$3.99

$

In Stock, Qty 8

0

15

White Outdoor 710-1205

Eye Bolt

$3.99

$

In Stock, Qty 20+

0

16

White Outdoor 746-0550

Control Cable, 39"
(Superseded to 946-0550)

$21.99

$

In Stock, only 3 left!

0

17

White Outdoor 710-1174

Carriage Bolt 5/16-18 x 2.0

$7.49

$

In Stock, Qty 20+

0

18

White Outdoor 682-3058

RH Bracket Ass'y
(Superseded to 753-05922)

Note: (Incl. Ref. 54, 56, 59, 60 & 62)

$114.99

$

Usually ships in 3-6 days

0

White Outdoor 682-3059

LH Bracket Ass'y
(Superseded to 753-05922)

Note: (Not shown)

$114.99

$

Usually ships in 3-6 days

0

19

White Outdoor 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

20

White Outdoor 714-0104

Cotter Pin

$4.49

$

In Stock, Qty 20+

0

21

White Outdoor 710-1007

Self-tapping Screw

$6.49

$

Usually ships in 3-6 days

0

23

White Outdoor 664-0084

Grassbag
(Superseded to 964-0084)

Note: (Ref. 77 Not included)

$193.99

$

Usually ships in 3-6 days

0

24

White Outdoor 7510042824

Screw # 12 x .457
(Superseded to 710-1650)

$4.99

$

In Stock, Qty 20+

0

25

White Outdoor 631-0075

Engine Spacer
(Superseded to 631-0075B)

$

$

Not available

26

White Outdoor 751B213146

Clamp Casing
(Superseded to BS-690798)

$5.49

$

In Stock, only 1 left!

0

27

White Outdoor 710-1237

Hex Screw TT #10-32 x .625

$4.49

$

Usually ships in 3-6 days

0

28

White Outdoor 782-0080

21" Rear Discharge Deck

Variations

White Outdoor 782-0080-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 782-0080-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 782-0080-0691

No Longer Available - BLACK JACK (0691)

$

$

Not available

$

$

29

White Outdoor 782-5004

RH Rear Baffle
(Superseded to 782-5004B)

Variations

White Outdoor 782-5004-0637

MULCHING BAFFLE - POWDER BLACK (0637)

$24.99

$

Usually ships in 3-6 days

0

White Outdoor 782-5004-0638

MULCHING BAFFLE - MTD/TROY-BILT RED (0638)

$24.99

$

Usually ships in 3-6 days

0

$24.99

$

Usually ships in 3-6 days

0

30

White Outdoor 710-1017

Screw AB: 1/4-14: .625

$8.49

$

In Stock, Qty 9

0

31

White Outdoor 782-5003

LH Rear Baffle
(Superseded to 782-5003A)

Variations

White Outdoor 782-5003-0637

Left Rear Baffle - POWDER BLACK (0637)

$30.99

$

Usually ships in 3-6 days

0

$30.99

$

Usually ships in 3-6 days

0

32

White Outdoor 710-0216

Hex Screw 3/8-16 x .75

$4.49

$

In Stock, Qty 14

0

33

White Outdoor 736-0331

Bell Washer .39 x 1.13 x .062

$3.99

$

In Stock, Qty 20+

0

34

White Outdoor 712-0798

Hex Nut 3/8-16

$4.49

$

In Stock, Qty 6

0

35

White Outdoor 731-2101A

Transmission Cover (Gray)

$

$

Not available

36

White Outdoor 782-5002

Front Baffle
(Superseded to 782P5002B)

Variations

White Outdoor 782-5002-0637

Front Baffle - POWDER BLACK (0637)

$

$

Not available

$

$

37

White Outdoor 754-0465

V-Belt, 3/8 x 35.68"
(Superseded to 954-04032B)

$25.99

$

In Stock, Qty 13

0

38

White Outdoor 712-0324

Hex Nut 1/4-20

$3.99

$

In Stock, Qty 16

0

39

White Outdoor 756-1146

Drive Pulley
(Superseded to 756-1146A)

$57.99

$

Usually ships in 3-6 days

0

40

748-0411

Blade Adapter

$

$

Not available

41

White Outdoor 742-0741

21" Mulching Blade
(Superseded to 942-0741A)

$29.99

$

In Stock, Qty 20+

0

42

White Outdoor 736-0452

Flat Washer .516 x 1.5 x .134

$4.99

$

In Stock, Qty 5

0

43

White Outdoor 710-0606

Hex Screw 1/4-20 x 1.50

$5.49

$

In Stock, Qty 10

0

44

White Outdoor 710-1257

Hex Screw 3/8-24 x 2.50

$7.99

$

In Stock, only 1 left!

0

45

White Outdoor 749-0907A

Lower Handle
(Superseded to 749-0907B)

Variations

White Outdoor 749-0907A-0637

LOWER HANDLE - POWDER BLACK (0637)

$50.99

$

In Stock, only 1 left!

0

$50.99

$

In Stock, only 1 left!

0

52

White Outdoor 712-0798

Hex Nut 3/8-16

$4.49

$

In Stock, Qty 6

0

53

White Outdoor 736-0356

Bell Washer.39 I.D. x 1.38 O.D.
(Superseded to 936-0356)

$

$

Not available

54

White Outdoor 712-3005

Hex Flange Lock Nut 3/8-16

$6.99

$

Usually ships in 3-6 days

0

55

White Outdoor 710-0896

Hex Scr. w/Washer 1/4-14 x .625

$4.49

$

In Stock, Qty 20+

0

56

White Outdoor 682-3056A

RH Handle Bracket

Variations

White Outdoor 682-3056A-0606

Handle Bracket Kit - MAJESTIC ORANGE (0606)

$114.99

$

Usually ships in 3-6 days

0

White Outdoor 682-3056A-0637

Handle Bracket Kit - POWDER BLACK (0637)

$114.99

$

Usually ships in 3-6 days

0

White Outdoor 682-3056A-0638

Handle Bracket Kit - MTD/TROY-BILT RED (0638)

$114.99

$

Usually ships in 3-6 days

0

White Outdoor 682-3056A-0650

Handle Bracket Kit - RED METALLIC (0650)

$114.99

$

Usually ships in 3-6 days

0

White Outdoor 682-3056A-0662

Handle Bracket Kit - OYSTER GRAY (0662)

$114.99

$

Usually ships in 3-6 days

0

White Outdoor 682-3056A-0665

Handle Bracket Kit - YARDMAN GREEN (0665)

$114.99

$

Usually ships in 3-6 days

0

White Outdoor 682-3056A-0667

Handle Bracket Kit - MIDNIGHT BLUE (0667)

$114.99

$

Usually ships in 3-6 days

0

White Outdoor 682-3056A-0691

Handle Bracket Kit - BLACK JACK (0691)

$114.99

$

Usually ships in 3-6 days

0

White Outdoor 682-3056A-0698

Handle Bracket Kit - HUNTER GREEN (0698)

$114.99

$

Usually ships in 3-6 days

0

$106.99

$

Usually ships in 3-6 days

0

White Outdoor 682-3057A

LH Handle Bracket
(Superseded to 753-05922)

Note: (Not shown)

Variations

White Outdoor 682-3057A-0606

Handle Bracket Kit - MAJESTIC ORANGE (0606)

$114.99

$

Usually ships in 3-6 days

0

White Outdoor 682-3057A-0637

Handle Bracket Kit - POWDER BLACK (0637)

$114.99

$

Usually ships in 3-6 days

0

White Outdoor 682-3057A-0638

Handle Bracket Kit - MTD/TROY-BILT RED (0638)

$114.99

$

Usually ships in 3-6 days

0

White Outdoor 682-3057A-0650

Handle Bracket Kit - RED METALLIC (0650)

$114.99

$

Usually ships in 3-6 days

0

White Outdoor 682-3057A-0662

Handle Bracket Kit - OYSTER GRAY (0662)

$114.99

$

Usually ships in 3-6 days

0

White Outdoor 682-3057A-0665

Handle Bracket Kit - YARDMAN GREEN (0665)

$114.99

$

Usually ships in 3-6 days

0

White Outdoor 682-3057A-0667

Handle Bracket Kit - MIDNIGHT BLUE (0667)

$114.99

$

Usually ships in 3-6 days

0

White Outdoor 682-3057A-0691

Handle Bracket Kit - BLACK JACK (0691)

$114.99

$

Usually ships in 3-6 days

0

White Outdoor 682-3057A-0698

Handle Bracket Kit - HUNTER GREEN (0698)

$114.99

$

Usually ships in 3-6 days

0

$114.99

$

Usually ships in 3-6 days

0

57

White Outdoor 736-0270

Bell Washer .265 x .75 x .062

$3.99

$

In Stock, Qty 20+

0

58

White Outdoor 710-0599

Hex Screw TT 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

59

White Outdoor 17488A

RH Pivot Bar

$15.99

$

In Stock, only 3 left!

0

White Outdoor 17489A

LH Pivot Bar

Note: (Not shown)

$15.99

$

In Stock, only 1 left!

0

60

White Outdoor 732-0866

Height Adj. Lever

$

$

Not available

61

White Outdoor 720-0312

Foam Grip

$4.99

$

In Stock, Qty 5

0

62

White Outdoor 738-0507B

Shoulder Scr .500 Dia. x .434

$4.49

$

In Stock, Qty 20+

0

63

White Outdoor 736-0105

Washer .401 x .870 x .063

$4.49

$

In Stock, Qty 20+

0

64

White Outdoor 734-1861

Wheel, 14 x 2 Gray (Link Trd.)

$70.99

$

Usually ships in 3-6 days

0

65

White Outdoor 736-0182

Spring Washer.50 I.D. x 1.0 O.D.

$4.49

$

In Stock, Qty 7

0

66

White Outdoor 736-0456

Flat Washer .510 x 1.373 x .04
(Superseded to 936-0456)

$4.99

$

In Stock, Qty 9

0

67

White Outdoor 738-0481

Shoulder Screw
(Superseded to 938-0481A)

$6.99

$

In Stock, Qty 18

0

68

White Outdoor 732-0700

Wire
(Superseded to 732P0700)

$4.49

$

In Stock, only 4 left!

0

69

White Outdoor 731-1236

Rear Trailing Shield
(Superseded to 731-04998)

$31.99

$

In Stock, Qty 7

0

70

White Outdoor 747-0996

Pivot Rod

$32.99

$

Usually ships in 3-6 days

0

71

White Outdoor 732-0809

Torsion Spring
(Superseded to 932-0809)

$18.99

$

Usually ships in 3-6 days

0

72

White Outdoor 782-7599A

Rear Discharge Door
(Superseded to 782-7599B-0637)

Variations

White Outdoor 782-7599A-0637

GRASSBAG DOOR 21" BLACK - POWDER BLACK (0637)

$

$

Not available

$

$

73

White Outdoor 747-0995A

Grasscatcher Frame
(Superseded to 747-0995A-0637)

Variations

White Outdoor 747-0995A-0637

Grass Catcher Bag Frame, Black - POWDER BLACK (0637)

$84.99

$

Usually ships in 3-6 days

0

$84.99

$

Usually ships in 3-6 days

0

74

White Outdoor 712-0271

Hex Nut

$4.49

$

In Stock, Qty 19

0

75

White Outdoor 711-1293

Screw

$4.99

$

Usually ships in 3-6 days

0

76

White Outdoor 782-5007

Plastic Mulching Baffle
(Superseded to 782-5007C)

Variations

White Outdoor 782-5007-0637

Mulching Baffle Plug - POWDER BLACK (0637)

$52.99

$

In Stock, only 1 left!

0

$52.99

$

In Stock, only 1 left!

0

77

White Outdoor 731-0066

Hardtop w/ logo

$

$

Not available

78

White Outdoor 782-9050

Grassbag Mtg. Bracket
(Superseded to 782-9050-0637)

Variations

White Outdoor 782-9050-0637

BRACKET-MOUNTING - POWDER BLACK (0637)

$

$

Not available

$

$

79

White Outdoor 710-1348

Screw, 1/4-20

$6.99

$

In Stock, only 3 left!

0

White Outdoor 751B281451

Engine Shroud

Note: (Not shown)

$

$

Not available
