HW-656 (12A-559B190) - White Outdoor 21" Walk-Behind Mower (1999) Drive Parts Diagram

21" Walk-Behind Mower

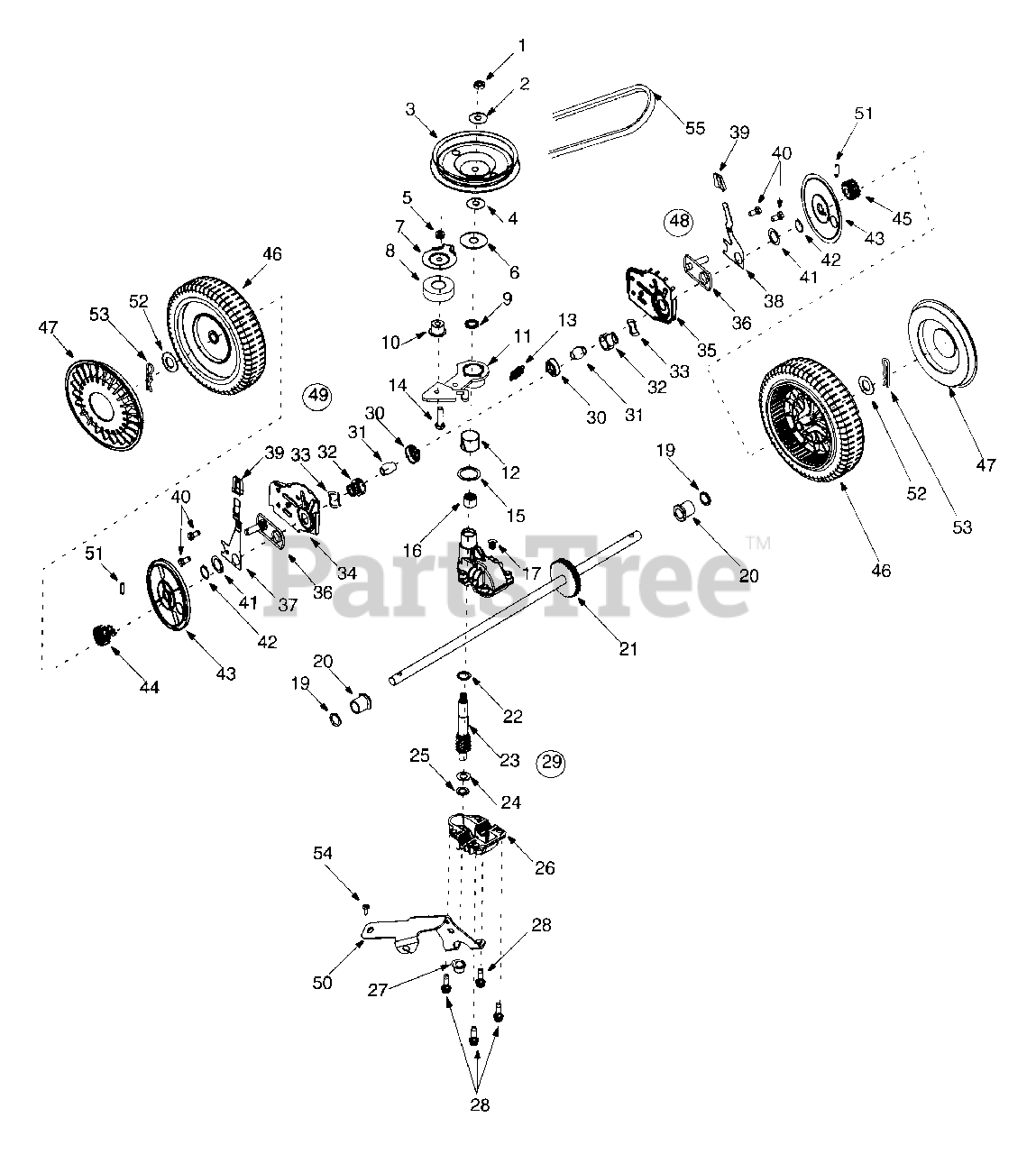

Drive Parts Diagram

  • Title

1

White Outdoor 712-3025

Hex Jam Nut 5/16-24

$7.49

$

Usually ships in 3-6 days

0

2

White Outdoor 736-0425

Bell Washer .325 x .930 x .045

$4.99

$

In Stock, Qty 13

0

3

White Outdoor 756-1042

Pulley, 3.82 x .313 x .68
(Superseded to 656-0047)

$

$

Not available

4

White Outdoor 736-0425

Bell Washer .325 x .930 x .045

$4.99

$

In Stock, Qty 13

0

5

White Outdoor 712-0896

Lock Nut 1/4-28

$4.99

$

In Stock, Qty 6

0

6

White Outdoor 736-0406

Flat Washer .442 x 1.38 x .060
(Superseded to 936-0406)

$6.99

$

In Stock, Qty 11

0

7

White Outdoor 782-7598

Belt Keeper

$15.99

$

In Stock, only 1 left!

0

8

White Outdoor 741-0124

Ball Bearing
(Superseded to 941-0600)

$25.99

$

In Stock, Qty 20+

0

9

White Outdoor 721-0457

Oil Seal

$

$

Not available

10

White Outdoor 750-1050

Flange Spacer

$5.49

$

Usually ships in 3-6 days

0

11

White Outdoor 682-0028

idler Bracket Assembly
(Superseded to 682-0029)

$

$

Not available

12

White Outdoor 741-0682A

Bearing Sleeve

$11.99

$

In Stock, only 1 left!

0

13

White Outdoor 732-0849A

Flat Washer .504 x .700 x.030
(Superseded to 932-0849A)

$4.49

$

In Stock, only 1 left!

0

14

White Outdoor 710-0299

Hex Cap Screw 1/4-28 x 1.00

$4.49

$

Usually ships in 3-6 days

0

15

White Outdoor 736-0570

Flat Washer .865 x 1.145 x .030
(Superseded to 936-0570)

$5.99

$

Usually ships in 3-6 days

0

16

White Outdoor 741-0699

Needle Bearing .438 x .625 x .500

$

$

Not available

17

White Outdoor 721-0325

Plug 1/4 x .437

$4.49

$

In Stock, Qty 20+

0

?18

White Outdoor 618-0300A

Upper Housing

$

$

Not available

19

White Outdoor 721-0329

Oil Seal .500 x .687 x .094
(Superseded to 921-0329)

$10.99

$

Usually ships in 3-6 days

0

20

White Outdoor 741-0673

Flange Bearing
(Superseded to 941-0673)

$6.49

$

In Stock, only 2 left!

0

21

White Outdoor 611-0105

Output Shaft
(Superseded to 611-0105A)

$123.99

$

Usually ships in 3-6 days

0

22

White Outdoor 736-0520

Flat Washer .504 x .700 x .030
(Superseded to 936-0520)

$5.99

$

Usually ships in 3-6 days

0

23

White Outdoor 717-1492

Pinion Shaft 10T

$

$

Not available

24

White Outdoor 736-0314

Thrust Washer .375 x .70 x .030

$6.99

$

Usually ships in 3-6 days

0

25

White Outdoor 736-0569

Thrust Washer .388 x .625 x .062
(Superseded to 936-0569)

$

$

Not available

26

White Outdoor 618-0299A

Lower Housing

$

$

Not available

27

White Outdoor 741-0672

Flange Bearing .378 x .531 x .370

$

$

Not available

28

White Outdoor 710-1276

Hex Screw w/Washer 1/4-20 x .750

$4.49

$

Usually ships in 3-6 days

0

29

White Outdoor 618-0298A

Transmission Assembly
(Superseded to 918-0298A)

Note: (Includes Ref. # 1 to Ref. #30)

$

$

Not available

30

White Outdoor 732-0708

Bearing Retainer

$8.99

$

Usually ships in 3-6 days

0

31

White Outdoor 741-0604

Bearing Sleeve .50 I.D.
(Superseded to 741-0604A)

$12.99

$

In Stock, Qty 12

0

32

White Outdoor 748-0355

Bearing Support

$13.99

$

In Stock, only 2 left!

0

33

White Outdoor 736-0447

Wave Washer 1.5 x 1.0 x .029

$4.49

$

In Stock, Qty 20+

0

34

White Outdoor 782-0512B

RH Height Adj. Plate
(Superseded to 782-0512B-0637)

Variations

White Outdoor 782-0512B-0637

PLATE-HGT ADJ-RH - POWDER BLACK (0637)

$22.99

$

In Stock, only 1 left!

0

$22.99

$

In Stock, only 1 left!

0

35

White Outdoor 782-0511A

LH Height Adj. Plate
(Superseded to 782-0511A-0637)

Variations

White Outdoor 782-0511A-0637

Height Adjust Plate, LH - POWDER BLACK (0637)

$

$

Not available

$

$

36

White Outdoor 682-0509

Pivot Plate Assembly

$

$

Not available

37

White Outdoor 732-0706

RH Front Lever

$15.99

$

In Stock, only 4 left!

0

38

White Outdoor 732-0707

LH Front Lever

$15.99

$

In Stock, only 1 left!

0

39

White Outdoor 720-0190

Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

40

White Outdoor 710-0216

Hex Cap Screw 3/8-16 x .75

$4.49

$

In Stock, Qty 15

0

41

White Outdoor 736-0474

Washer DD 1.5" O.D.

$6.99

$

In Stock, only 3 left!

0

42

White Outdoor 716-0102

Snap Ring 1.0 Dia.

$5.49

$

In Stock, Qty 20+

0

43

White Outdoor 782-7551

Wheel Dust Cap
(Superseded to 782-7551A)

$5.49

$

In Stock, Qty 20+

0

44

White Outdoor 717-1534

Gear 14T RH FWD

$

$

Not available

45

White Outdoor 717-1533

Gear 14T LH FWD

$12.99

$

In Stock, only 3 left!

0

46

White Outdoor 734-1983

Wheel, 8x2 Black (Link Trd.)
(Superseded to 734-04223A)

$55.99

$

In Stock, Qty 20+

0

47

White Outdoor 731-0981A

Hubcap: Gray
(Superseded to 731-0981C)

$10.99

$

In Stock, only 2 left!

0

48

White Outdoor 682-0512A

RH Height Adj.
(Superseded to 987-02194A)

Note: Complete

$66.99

$

Usually ships in 3-6 days

0

49

White Outdoor 682-0511A

LH Height Adj.
(Superseded to 987-02193A)

Note: Complete

$66.99

$

Usually ships in 3-6 days

0

50

White Outdoor 682-0030

Cable Idler Bracket

$

$

Not available

51

White Outdoor 715-0221

Dowel Pin
(Superseded to 915-0221)

$4.49

$

In Stock, Qty 20+

0

52

White Outdoor 736-3013

Flat Washer 1/2 x 1.00 x .063

$4.49

$

In Stock, only 3 left!

0

53

White Outdoor 714-0101

Cotter Pin .08 x 1.42

$4.99

$

In Stock, only 2 left!

0

54

White Outdoor 738-1002

Screw

$4.49

$

In Stock, only 1 left!

0

55

White Outdoor 754-0465

Belt
(Superseded to 954-04032B)

$25.99

$

In Stock, Qty 17

0
