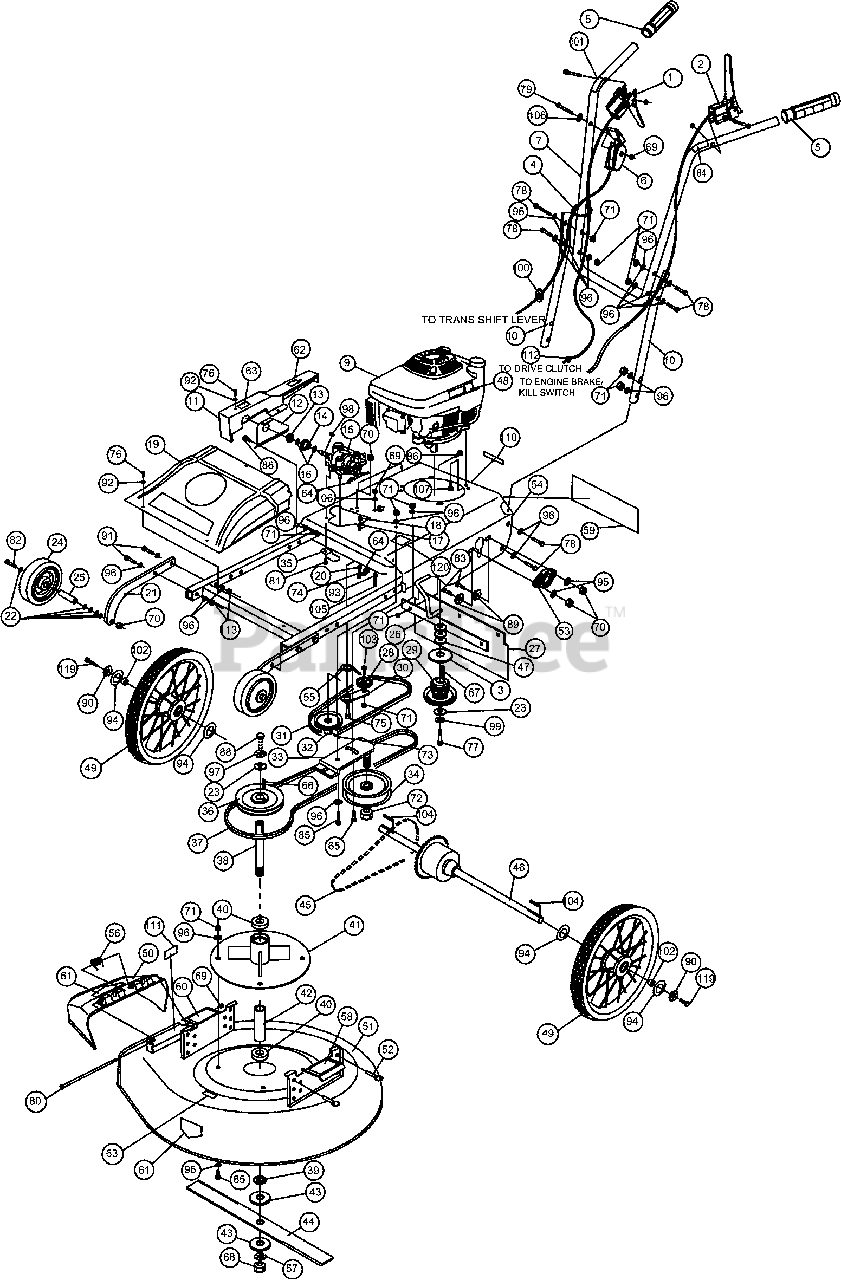

HW 651 HSP - Billy Goat 24" High Wheel Mower Parts Assembly Parts Diagram

24" High Wheel Mower

Parts Assembly Parts Diagram

  • Title

1

Billy Goat 510263

LEVER DRIVE CLUTCH W/CABLE

$64.99

$

In Stock, only 1 left!

0

2

Billy Goat 510262

LEVER ENGINE BRAKE W/CABLE

$45.99

$

Usually ships in 2-11 days

0

3

Billy Goat 830113

SPACER 1" ID X 2" OD

$13.99

$

Usually ships in 2-11 days

0

4

Billy Goat 900407

TY WRAP

$0.99

$

In Stock, only 2 left!

0

5

Billy Goat 510274

GRIP HANDLE 1” ID X 5” BLACK

$6.99

$

Usually ships in 2-11 days

0

6

Billy Goat 510127

CONTROL SHIFT 3 SPEED

$40.99

$

Usually ships in 2-11 days

0

7

Billy Goat 510261

HANDLE UPPER HW

$96.99

$

Usually ships in 2-11 days

0

9

Billy Goat 510279

ENGINE 6.5 HONDA OHV

$

$

Currently unavailable

10

Billy Goat 510265

HANDLE LOWER HW

$28.99

$

Usually ships in 2-11 days

0

11

Billy Goat 510111

CHAIN GUARD HW

$64.99

$

Usually ships in 2-11 days

0

12

Billy Goat 510120

PLATE BEARING RIGHT

$

$

Not available

13

Billy Goat 510125

BEARING 1/2 CLIP

$9.99

$

Usually ships in 2-11 days

0

14

Billy Goat 510126

8 TOOTH SPROCKET

$15.99

$

Usually ships in 2-11 days

0

15

Billy Goat 510108

TRANSMISSION 3 SP

$

$

Not available

16

Billy Goat 350146

C-CLIP 1/2

$0.99

$

In Stock, only 2 left!

0

17

Billy Goat 8172005

WASHER #10 SAE

$0.99

$

In Stock, only 2 left!

0

18

Billy Goat 8155007

LOCK NUT #10

$0.99

$

Usually ships in 2-11 days

0

19

Billy Goat 510110

BELT GUARD HW

$67.99

$

Usually ships in 2-11 days

0

20

Billy Goat 8154007

NUT #10 HEX

$0.99

$

Usually ships in 2-11 days

0

21

Billy Goat 510269

FRONT WHEEL BRACKET

$89.99

$

Usually ships in 2-11 days

0

22

Billy Goat 8172011

WASHER 1/2” ZP

$0.99

$

In Stock, Qty 6

0

23

Billy Goat 440153

WASHER 1/2" - .453 ID

$2.99

$

Usually ships in 2-11 days

0

24

Billy Goat 510268

WHEEL FRONT 6"’

$29.99

$

Usually ships in 2-11 days

0

25

Billy Goat 900819

SPACER WHEEL FRONT

$2.99

$

Usually ships in 2-11 days

0

26

Billy Goat 510144

PLATE DEFLECTOR MOUNT

$

$

Not available

27

Billy Goat 510141

RUBBER DEFLECTOR

$21.99

$

Usually ships in 2-11 days

0

28

Billy Goat 510137

PULLEY IDLER

$17.99

$

Usually ships in 2-11 days

0

29

Billy Goat 510280

PULLEY DOUBLE 2”/4” W/INERTIA-25MM

$172.99

$

Usually ships in 2-11 days

0

30

Billy Goat 510199

ARM IDLER TRANS WA HW

$39.99

$

Usually ships in 2-11 days

0

31

Billy Goat 510138

BELT 3L320

$

$

Not available

32

Billy Goat 510122

PULLEY 3” OD 10MM BORE

$

$

Not available

33

Billy Goat 510191

PLATE ENGINE IDLER WA HW

$

$

Not available

34

Billy Goat 510136

PULLEY IDLER

$115.99

$

Usually ships in 2-11 days

0

35

Billy Goat 510123

BRACKET TRANS LEVER

$8.49

$

Usually ships in 2-11 days

0

36

Billy Goat 510118

PULLEY 5.5” OD X 7/8” BORE

$50.99

$

Usually ships in 2-11 days

0

37

Billy Goat 510139

BELT BLADE 5L560

$90.99

$

In Stock, only 1 left!

0

38

Billy Goat 510114

SHAFT DRIVE BLADE

$152.99

$

Usually ships in 2-11 days

0

39

Billy Goat 500232

SPACER SPINDLE BC2401

$28.99

$

In Stock, only 1 left!

0

40

Billy Goat 500101

BEARING 7/8” SEALED

$25.99

$

Usually ships in 2-11 days

0

41

Billy Goat 510105

SPINDLE BLADE WA HW

$151.99

$

Usually ships in 2-11 days

0

42

Billy Goat 510116

TUBE SPACER SPINDLE

$20.99

$

Usually ships in 2-11 days

0

43

Billy Goat 510117

WASHER SPINDLE 2.5 OD

$29.99

$

Usually ships in 2-11 days

0

44

Billy Goat 510107

BLADE 23 1/2 W 7/8 HOLE

$34.99

$

In Stock, only 1 left!

0

45

Billy Goat 510132

CHAIN #41 75 PITCH

$19.99

$

Usually ships in 2-11 days

0

46

Billy Goat 510104

REAR AXLE ASSY

$322.99

$

Usually ships in 2-11 days

0

47

Billy Goat 510281

SPACER HW HONDA

$

$

Not available

48

Billy Goat 100261

LABEL WARNING FUEL EN/SP

$3.99

$

Usually ships in 2-11 days

0

49

Billy Goat 510266

WHEEL SPOKE 16”
(Superseded to 510266-S)

$242.99

$

Usually ships in 2-11 days

0

50

Billy Goat 510197

GUARD EXHAUST CHUTE

$77.99

$

Usually ships in 2-11 days

0

51

Billy Goat 510160

DECK ASSY W/LABELS
(Superseded to 510160-S)

$

$

Not available

52

Billy Goat 510130

PIN 3/8X 1 1/2

$39.99

$

Usually ships in 2-11 days

0

53

Billy Goat 350209

BEARING 3/4 CAST FLANGE

$40.99

$

Usually ships in 2-11 days

0

54

Billy Goat 510247

BASE ASY W/LABELS

$

$

Not available

55

Billy Goat 510142

SPRING TRANS IDLER

$9.99

$

Usually ships in 2-11 days

0

56

Billy Goat 510205

SPRING EXHAUST CHUTE

$8.49

$

Usually ships in 2-11 days

0

57

Billy Goat 350154

WASHER LOCK 7/8 INT TOOTH

$1.99

$

Usually ships in 2-11 days

0

58

Billy Goat 510147

LABEL CUTTING HEIGHT

$7.99

$

Usually ships in 2-11 days

0

59

Billy Goat 510207

LABEL INSTRUCTION

$5.99

$

Usually ships in 2-11 days

0

60

Billy Goat 510206

LABEL WARNING MOWER

$6.49

$

Usually ships in 2-11 days

0

61

Billy Goat 400424

LABEL OPEI

$3.99

$

In Stock, only 1 left!

0

62

Billy Goat 830502

LABEL OIL CHAIN

$3.99

$

Usually ships in 2-11 days

0

63

Billy Goat 900327

LABEL DANGER GUARDS

$3.99

$

In Stock, only 3 left!

0

64

Billy Goat 400217

SPRING TENSION

$10.99

$

Usually ships in 2-11 days

0

65

Billy Goat 8024040

CARRIAGE BOLT 5/16”-18X1

$0.99

$

In Stock, only 1 left!

0

66

Billy Goat 9201072

KEY SQ 3/16 X 5/8”

$2.99

$

In Stock, only 2 left!

0

67

Billy Goat 9201113

KEY SQ 1/4" X 1"

$2.99

$

Usually ships in 2-11 days

0

68

Billy Goat 350155

NUT JAM 7/8” -14

$4.99

$

In Stock, only 1 left!

0

69

Billy Goat 8160001

NUT LOCK 1/4-20 HEX ZP

$0.99

$

In Stock, Qty 9

0

70

Billy Goat 8160003

NUT LOCK 3/8-16

$0.99

$

In Stock, Qty 5

0

71

Billy Goat 8160002

NUT LOCK 5/16

$0.99

$

In Stock, Qty 5

0

72

Billy Goat 8160007

NUT LOCK 5/8-11

$1.49

$

Usually ships in 2-11 days

0

73

Billy Goat 8195166

ROLL PIN 3/16 X 1.25

$0.99

$

Usually ships in 2-11 days

0

74

Billy Goat 8059136

SCREW MACHINE #10-24X 3/4

$0.99

$

In Stock, Qty 6

0

75

Billy Goat 500114

BOLT SHOULDER 1/2” X 1”

$9.49

$

Usually ships in 2-11 days

0

76

Billy Goat 510208

SCREW SELF TAP 1/4 X 3/4”

$1.49

$

Usually ships in 2-11 days

0

77

Billy Goat 400946

SCREW CAP 3/8-24 X 1 1/4”

$0.99

$

Usually ships in 2-11 days

0

78

Billy Goat 8041031

SCREW CAP 5/16”-18X1 3/4

$0.99

$

In Stock, only 3 left!

0

79

Billy Goat 8041011

SCREW CAP 1/4-20 X 2 1/4”

$0.99

$

Usually ships in 2-11 days

0

80

Billy Goat 8041023

SCREW CAP 1/4-20 X 7” ZP

$4.49

$

Usually ships in 2-11 days

0

81

Billy Goat 510188

SCREW SELF TAP 6 X 16

$

$

Not available

82

Billy Goat 8041058

SCREWCAP 3/8-16 X 3”

$1.49

$

In Stock, only 4 left!

0

83

Billy Goat 8041052

SCREWCAP 3/8-16 X 1 1/2”

$1.49

$

Usually ships in 2-11 days

0

84

Billy Goat 500177

LABEL CLUTCH BLADE

$3.99

$

Usually ships in 2-11 days

0

85

Billy Goat 8041028

SCREWCAP 5/16-18 X 1”

$0.99

$

In Stock, Qty 7

0

86

Billy Goat 8024039

CARRIAGE BOLT 5/16-18X3/4

$0.99

$

In Stock, Qty 9

0

88

Billy Goat 510213

SCREWCAP 7/16-20 X 1 1/4 GR8

$8.99

$

Usually ships in 2-11 days

0

89

Billy Goat 400502

TWISTED WASHER 3/8”

$4.49

$

In Stock, only 1 left!

0

90

Billy Goat 430298

TWISTED WASHER 5/16”

$1.99

$

In Stock, only 2 left!

0

91

Billy Goat 8041054

SCREW CAP 3/8-16 X2

$0.99

$

In Stock, Qty 5

0

92

Billy Goat 510193

WASHER 1/4 SAE BLACK

$0.99

$

Usually ships in 2-11 days

0

93

Billy Goat 8143001

NUT JAM 1/4 - 20

$0.99

$

Usually ships in 2-11 days

0

94

Billy Goat 8172015

WASHER 3/4 SAE

$0.99

$

In Stock, Qty 5

0

95

Billy Goat 8171004

WASHER 3/8 FC

$0.99

$

In Stock, Qty 5

0

96

Billy Goat 8171003

WASHER 5/16 FC

$0.99

$

In Stock, only 2 left!

0

97

Billy Goat 8177013

WASHER LOCK 7/16" S/T MED

$0.99

$

In Stock, Qty 9

0

98

Billy Goat 510180

KEY WOODWRUFF 1/8 X 1/2

$1.49

$

In Stock, Qty 9

0

99

Billy Goat 8177012

WASHER LOCK 3/8 S/T MED

$0.99

$

In Stock, Qty 9

0

100

Billy Goat 520087

RUBBER GROMMET

$4.99

$

Usually ships in 2-11 days

0

101

Billy Goat 500176

LABEL CLUTCH DRIVE

$3.99

$

Usually ships in 2-11 days

0

102

Billy Goat 520045

SPACER NYLON BUSHING

$1.49

$

Usually ships in 2-11 days

0

103

Billy Goat 8041030

SCREWCAP 5/16-18 X 1 1/2

$0.99

$

Usually ships in 2-11 days

0

104

Billy Goat 9201087

KEY SQ. 3/16 X 2 1/8”

$2.99

$

Usually ships in 2-11 days

0

105

Billy Goat 8041007

SCREW CAP 1/4-20 X 1 1/4

$0.99

$

In Stock, only 1 left!

0

106

Billy Goat 8172007

WASHER 1/4 SAE

$0.99

$

In Stock, Qty 11

0

107

Billy Goat 510255

SCREW 3/8 X 1 TAPTITE

$

$

Currently unavailable

110

Billy Goat 100346

LABEL SAFETY PROTECT READ MANUAL

$3.99

$

Usually ships in 2-11 days

0

111

Billy Goat 810736

LABEL FLYING DEBRIS

$3.99

$

In Stock, only 2 left!

0

112

Billy Goat 510169

GROMMET 1” HOLE

$

$

Not available

113

Billy Goat 8161042

NUT LOCK 3/8-16 THIN

$0.99

$

In Stock, Qty 9

0

119

Billy Goat 8041026

SCREWCAP 5/16" - 18 X 3/4" HCS ZP

$0.99

$

In Stock, only 1 left!

0

120

Billy Goat 520116

LABEL MADE IN U.S.A.

$

$

Not available
