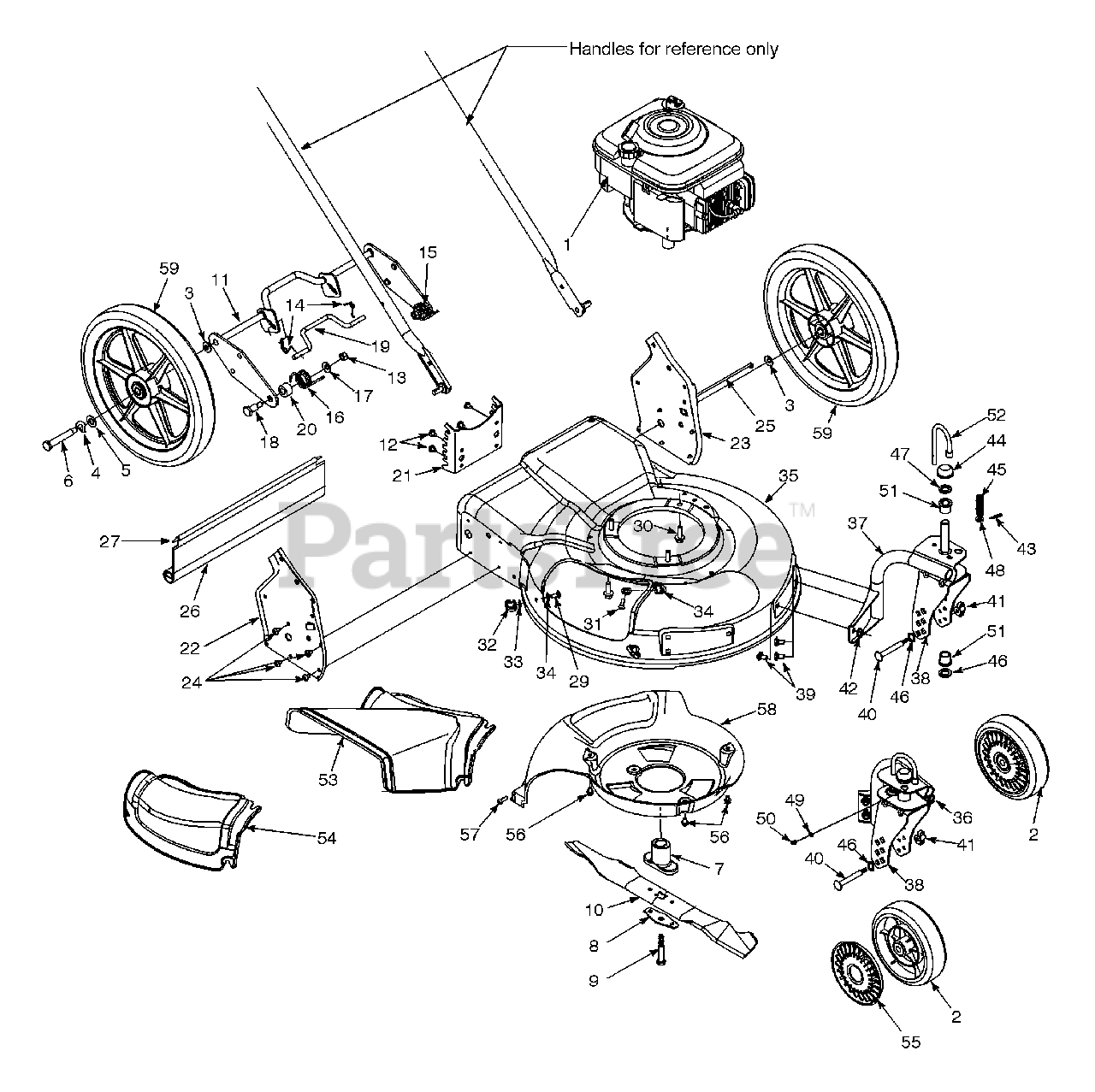

HW-615 (11A-599B190) - White Outdoor Lawn Boss 21" Walk-Behind Mower (1999) General Assembly Parts Diagram

Lawn Boss 21" Walk-Behind Mower

General Assembly Parts Diagram

  • Title

1

Engine

$

$

Not available

White Outdoor 751B281451

Engine Shroud

$

$

Not available

2

White Outdoor 734-1857

Wheel, Front Caster 7 X 2

$46.99

$

In Stock, Qty 7

0

3

White Outdoor 736-0105

Bell Washer .401 X .870 X .063

$4.49

$

In Stock, Qty 20+

0

4

White Outdoor 736-0182

Spring Washer .50 I.D. x 1.0 O.D. x.022

$4.49

$

In Stock, Qty 7

0

5

White Outdoor 736-0272

Flat Washer .510 x 1.0 x .060

$4.99

$

In Stock, Qty 20+

0

6

White Outdoor 738-0481

Shoulder Screw .500 x 2.62: 3/8 - 16
(Superseded to 938-0481A)

$6.99

$

In Stock, Qty 18

0

7

White Outdoor 748-0377C

Blade Adapter
(Superseded to 748-0377E)

$19.99

$

In Stock, only 3 left!

0

8

White Outdoor 736-0524A

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, Qty 17

0

9

White Outdoor 710-1257

Hex Bolt 3/8 - 24 x 2.5 Gr. 8

$7.99

$

In Stock, only 1 left!

0

10

White Outdoor 742-0741

Blade 21", Mulching
(Superseded to 942-0741A)

$29.99

$

In Stock, Qty 20+

0

11

White Outdoor 647-0028

Hi-Wheel Height Adj. Support

$

$

Not available

12

White Outdoor 710-1348

AB Screw 1/4-14 x .50

$6.99

$

In Stock, only 3 left!

0

13

White Outdoor 712-3017

Hex Nut 3/8-16

$4.49

$

In Stock, Qty 20+

0

14

White Outdoor 732-0845

Torsion Spring
(Superseded to 932-0845)

$4.99

$

Usually ships in 3-6 days

0

15

White Outdoor 732-0843

Torsion Spring, RH

$

$

Not available

16

White Outdoor 732-0844

Torsion Spring, LH

$

$

Not available

17

White Outdoor 736-0105

Bell Washer .401 x .870 x .063

$4.49

$

In Stock, Qty 20+

0

18

White Outdoor 738-0145

Shoulder Screw .500 x .840

$6.99

$

Usually ships in 3-6 days

0

19

White Outdoor 747-0971

Handle, Height Adjustment

$

$

Not available

20

White Outdoor 750-1090

Spacer .500 x 1.0 x .600

$

$

Not available

21

White Outdoor 782-0572

Height Adj. Bracket, RH
(Superseded to 782-0572-0637)

Variations

White Outdoor 782-0572-0637

BRACKET-HEIGHT ADJ - POWDER BLACK (0637)

$

$

Not available

$

$

22

White Outdoor 682-3054

Handle Bracket Ass'y, RH

Variations

White Outdoor 682-3054-0637

BRACKET ASS'Y-HANDLE - POWDER BLACK (0637)

$

$

Not available

White Outdoor 682-3054-0650

No Longer Available - RED METALLIC (0650)

$

$

Not available

White Outdoor 682-3054-0662

BRACKET ASS'Y-HANDLE - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 682-3054-0689

No Longer Available BRACKET ASS'Y-HNDL - POLO GREEN (0689)

$

$

Not available

$

$

23

White Outdoor 682-3055

Handle Bracket Ass'y, LH

Variations

White Outdoor 682-3055-0637

BRACKET ASS'Y-HANDLE - POWDER BLACK (0637)

$

$

Not available

White Outdoor 682-3055-0650

No Longer Available BRACKET ASS'Y-HNDL - RED METALLIC (0650)

$

$

Not available

White Outdoor 682-3055-0689

BRACKET ASS'Y-HANDLE - POLO GREEN (0689)

$

$

Not available

$

$

24

White Outdoor 710-1348

AB Screw 1/4-14

$6.99

$

In Stock, only 3 left!

0

25

White Outdoor 725-0157

Cable Tie

$3.99

$

In Stock, only 2 left!

0

26

White Outdoor 731-1901

Trail Shield
(Superseded to 731-1901A)

$40.99

$

In Stock, only 2 left!

0

27

White Outdoor 732-0842

Trail Shield Wire

$6.49

$

In Stock, Qty 6

0

29

White Outdoor 710-0134

Carriage Screw

$4.49

$

In Stock, Qty 20+

0

30

White Outdoor 710-0654A

TT Screw 3/8 -16 x 1.00

$4.49

$

In Stock, only 3 left!

0

31

White Outdoor 710-0703

Carriage Screw 1/4-20 x .75

$4.49

$

In Stock, Qty 15

0

32

White Outdoor 712-0397

Wing Nut
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

33

White Outdoor 726-0233

Push Nut

$4.49

$

In Stock, only 3 left!

0

34

White Outdoor 736-0204

Flat Washer

$4.49

$

In Stock, Qty 7

0

35

White Outdoor 782-0049-0662

Deck 21"

$

$

Not available

36

White Outdoor 682-9020A

Caster Assembly, RH

Note: Code: N notates a new part (not previously existing).

Variations

White Outdoor 682-9020A-4028

CASTER ASSEMBLY-RH - SEARS YELLOW (4028)

$89.99

$

In Stock, only 1 left!

0

White Outdoor 682-9020A-0691

CASTER ASSEMBLY-RH - BLACK JACK (0691)

$97.99

$

Usually ships in 3-6 days

0

White Outdoor 682-9020A-0629

CASTER ASSEMBLY-RH - SILVER FLAKE (0629)

$

$

Not available

White Outdoor 682-9020A-0665

CASTER ASSEMBLY-RH - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 682-9020A-0716

CASTER ASSEMBLY-RH - CUB YELLOW-99 (0716)

$

$

Not available

White Outdoor 682-9020A-4021

CASTER ASSEMBLY-RH - CUB YELLOW 2 (4021)

$

$

Not available

White Outdoor 682-9020A-0606

CASTER ASSEMBLY-RH - MAJESTIC ORANGE (0606)

$

$

Not available

White Outdoor 682-9020A-0638

CASTER ASSEMBLY-RH - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 682-9020A-0650

CASTER ASSEMBLY-RH - RED METALLIC (0650)

$

$

Not available

White Outdoor 682-9020A-0662

CASTER ASSEMBLY-RH - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 682-9020A-0667

CASTER ASSEMBLY-RH - MIDNIGHT BLUE (0667)

$

$

Not available

White Outdoor 682-9020A-0689

CASTER ASSEMBLY-RH - POLO GREEN (0689)

$

$

Not available

White Outdoor 682-9020A-4015

CASTER ASSEMBLY-RH - FIRE RED (4015)

$

$

Not available

$97.99

$

Usually ships in 3-6 days

0

37

White Outdoor 682-9021A

Caster Assembly, LH

Note: Code: N notates a new part (not previously existing).

Variations

White Outdoor 682-9021A-0716

CASTER ASSEMBLY-LH - CUB YELLOW-99 (0716)

$101.99

$

Usually ships in 3-6 days

0

White Outdoor 682-9021A-0691

CASTER ASSEMBLY-LH - BLACK JACK (0691)

$101.99

$

Usually ships in 3-6 days

0

White Outdoor 682-9021A-4021

CASTER ASSEMBLY-LH - CUB YELLOW 2 (4021)

$125.99

$

Usually ships in 3-6 days

0

White Outdoor 682-9021A-4028

CASTER ASSEMBLY-LH - SEARS YELLOW (4028)

$125.99

$

Usually ships in 3-6 days

0

White Outdoor 682-9021A-0606

CASTER ASSEMBLY-LH - MAJESTIC ORANGE (0606)

$

$

Not available

White Outdoor 682-9021A-0638

CASTER ASSEMBLY-LH - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 682-9021A-0662

CASTER ASSEMBLY-LH - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 682-9021A-0665

CASTER ASSEMBLY-LH - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 682-9021A-0667

CASTER ASSEMBLY-LH - MIDNIGHT BLUE (0667)

$

$

Not available

White Outdoor 682-9021A-0629

CASTER ASSEMBLY-LH - SILVER FLAKE (0629)

$

$

Not available

White Outdoor 682-9021A-0650

CASTER ASSEMBLY-LH - RED METALLIC (0650)

$

$

Not available

White Outdoor 682-9021A-0689

CASTER ASSEMBLY-LH - POLO GREEN (0689)

$

$

Not available

White Outdoor 682-9021A-4015

CASTER ASSEMBLY-LH - FIRE RED (4015)

$

$

Not available

$101.99

$

Usually ships in 3-6 days

0

38

White Outdoor 682-9024

Caster Bracket Assembly

Variations

White Outdoor 682-9024-0629

BRACKET CASTER - SILVER FLAKE (0629)

$81.99

$

Usually ships in 3-6 days

0

White Outdoor 682-9024-0638

Caster Bracket, RH - MTD/TROY-BILT RED (0638)

$81.99

$

In Stock, only 2 left!

0

White Outdoor 682-9024-0650

BRACKET CASTER - RED METALLIC (0650)

$81.99

$

Usually ships in 3-6 days

0

White Outdoor 682-9024-0662

BRACKET CASTER - OYSTER GRAY (0662)

$81.99

$

Usually ships in 3-6 days

0

White Outdoor 682-9024-0665

BRACKET CASTER - YARDMAN GREEN (0665)

$66.99

$

Usually ships in 3-6 days

0

White Outdoor 682-9024-0691

BRACKET CASTER-BLACK JACK - BLACK JACK (0691)

$81.99

$

Usually ships in 3-6 days

0

White Outdoor 682-9024-0716

BRACKET CASTER - CUB YELLOW-99 (0716)

$81.99

$

Usually ships in 3-6 days

0

White Outdoor 682-9024-4021

Caster Bracket, RH - CUB YELLOW 2 (4021)

$81.99

$

In Stock, only 1 left!

0

White Outdoor 682-9024-4028

BRACKET CASTER - SEARS YELLOW (4028)

$76.99

$

Usually ships in 3-6 days

0

White Outdoor 682-9024-0606

BRACKET CASTER - MAJESTIC ORANGE (0606)

$81.99

$

Usually ships in 3-6 days

0

White Outdoor 682-9024-0667

BRACKET CASTER - MIDNIGHT BLUE (0667)

$66.99

$

Usually ships in 3-6 days

0

White Outdoor 682-9024-0689

BRACKET CASTER - POLO GREEN (0689)

$66.99

$

Usually ships in 3-6 days

0

White Outdoor 682-9024-4015

BRACKET CASTER - FIRE RED (4015)

$66.99

$

Usually ships in 3-6 days

0

White Outdoor 682-9024-4033

BRACKET CASTER - FLINT MICA (4033)

$76.99

$

Usually ships in 3-6 days

0

$71.99

$

Usually ships in 3-6 days

0

39

White Outdoor 710-0260

Carriage Bolt 5/16-18 x .62
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

40

White Outdoor 711-1146

Caster Axle .374 x 2.59
(Superseded to 911-1146)

$13.99

$

In Stock, Qty 11

0

41

White Outdoor 712-0397

Wing Nut
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

42

White Outdoor 712-3004A

Flange Nut 5/16-18 Gr.5

$3.99

$

In Stock, Qty 20+

0

43

White Outdoor 714-0104

Hairpin Clip

$4.49

$

In Stock, Qty 20+

0

44

White Outdoor 726-0214

Push Cap

$10.99

$

Usually ships in 3-6 days

0

45

White Outdoor 732-0306

Compression Spring
(Superseded to 932-0306A)

$8.49

$

In Stock, only 4 left!

0

46

White Outdoor 736-0232

Wave Washer .530 I.D. x .780 O.D.

$4.99

$

In Stock, Qty 12

0

47

UNKNOWN

$

$

Not available

48

White Outdoor 736-0264

Flat Washer .330 I.D. x .630 x .06

$6.99

$

In Stock, only 1 left!

0

49

White Outdoor 736-0931

Fl. Wash. .203 I.D. x.403 x .040

$4.99

$

In Stock, only 1 left!

0

50

White Outdoor 737-3000

Lube Fitting
(Superseded to 937-3000)

$4.99

$

In Stock, Qty 20+

0

51

White Outdoor 741-0685

Flange Bearing

$4.49

$

Usually ships in 3-6 days

0

52

White Outdoor 747-0924

Lock Pin, Front Wheel

$20.99

$

In Stock, only 1 left!

0

53

White Outdoor 731-1832

Discharge Chute

$

$

Not available

54

White Outdoor 731-1833

Mulching Cover
(Superseded to 931-1833A)

$44.99

$

In Stock, only 1 left!

0

55

White Outdoor 731-1887

Hubcap

$11.99

$

Usually ships in 3-6 days

0

56

White Outdoor 710-0653

Hex Screw, TT 1/4-20 x .375

$4.49

$

In Stock, Qty 13

0

57

White Outdoor 710-0969

HL Screw

$4.49

$

In Stock, only 2 left!

0

58

White Outdoor 731-1828

Rear Baffle
(Superseded to 731-08190A)

$37.99

$

Usually ships in 3-6 days

0

59

White Outdoor 734-1861

Hi-Wheel 14 X 2

$70.99

$

Usually ships in 3-6 days

0
