HW-615 (11A-598N190) - White Outdoor Lawn Boss 21" Walk-Behind Mower (1998) Handle And Throttle Assembly Parts Diagram

Lawn Boss 21" Walk-Behind Mower

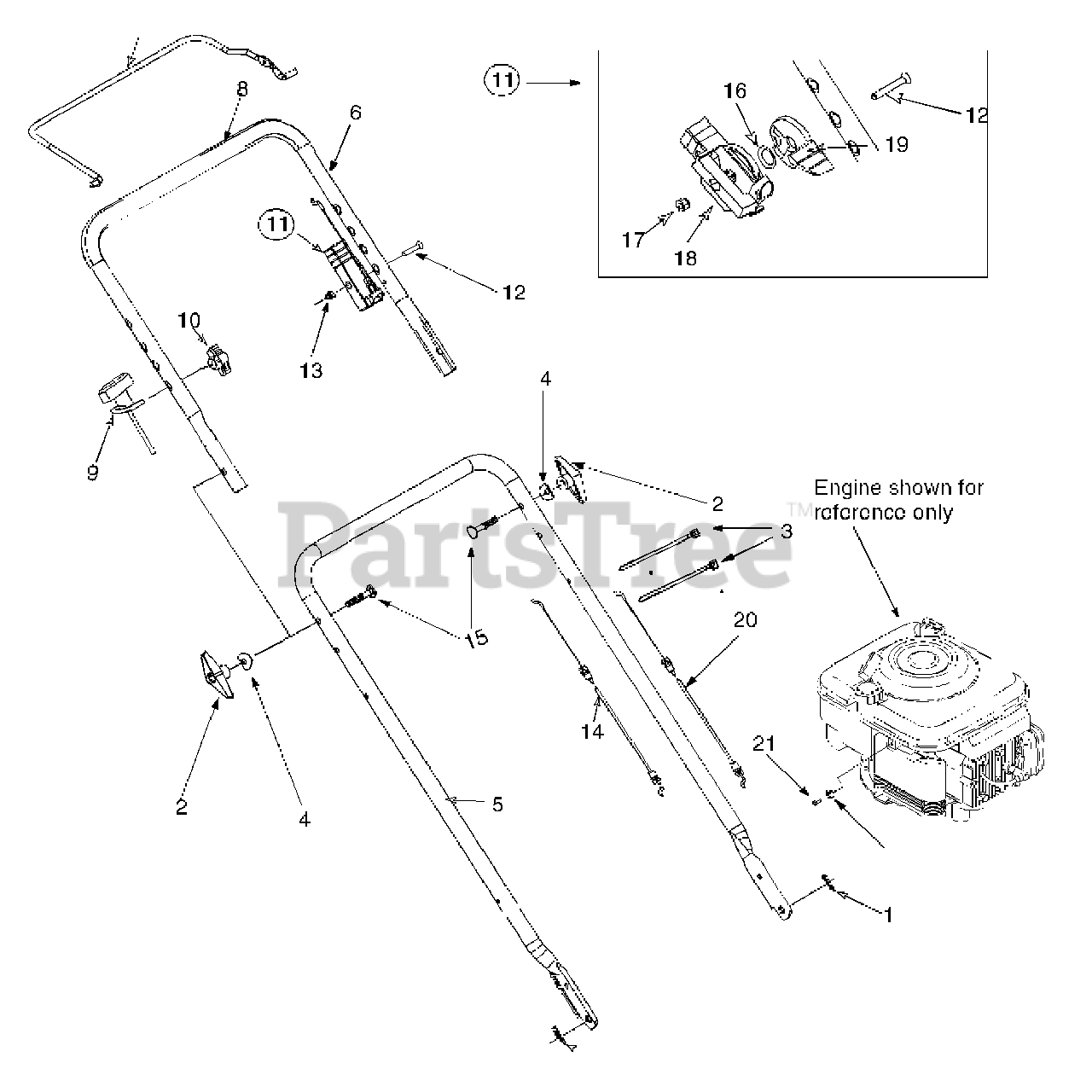

Handle And Throttle Assembly Parts Diagram

  • Title

1

White Outdoor 714-0104

Hairpin Clip

$4.49

$

In Stock, Qty 20+

0

2

White Outdoor 720-0241

Wing Nut
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 20+

0

3

White Outdoor 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, only 2 left!

0

4

White Outdoor 736-0451

Saddle Washer

$4.49

$

Usually ships in 3-6 days

0

5

White Outdoor 749-0907A

Lower Handle
(Superseded to 749-0907B)

Note: Code: N Notates a new part (not previously existing)

Variations

White Outdoor 749-0907A-0637

LOWER HANDLE - POWDER BLACK (0637)

$50.99

$

In Stock, only 1 left!

0

$50.99

$

In Stock, only 1 left!

0

6

White Outdoor 749-0438B

Upper Handle
(Superseded to 749-0438D-0637)

Variations

White Outdoor 749-0438B-0637

Upper Handle - POWDER BLACK (0637)

$

$

Not available

$

$

?7

White Outdoor 647-0004

Control Handle
(Superseded to 747-0824B-0637)

$65.99

$

In Stock, only 1 left!

0

8

White Outdoor 720-0295

Foam Grip

$33.99

$

Usually ships in 3-6 days

0

9

White Outdoor 710-1205

Rope Guide

$3.99

$

In Stock, only 2 left!

0

10

White Outdoor 720-0279

Handle Knob

$4.49

$

Usually ships in 3-6 days

0

11

White Outdoor 811-00303

Throttle Control Assembly
(Superseded to 811-0185)

$36.99

$

In Stock, only 1 left!

0

12

White Outdoor 710-0605

Oval C-Sunk Scr.

$4.49

$

In Stock, only 3 left!

0

13

White Outdoor 712-0324

Hex L-Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 16

0

14

White Outdoor 746-0550

Control Cable
(Superseded to 946-0550)

$21.99

$

In Stock, only 3 left!

0

15

White Outdoor 710-1174

Carriage Bolt

$7.49

$

In Stock, Qty 20+

0

16

White Outdoor 736-0501

Spring Washer
(Superseded to 936-0501)

Note: Code: N Notates a new part (not previously existing)

$6.99

$

Usually ships in 3-6 days

0

17

White Outdoor 712-0324

Hex Lock Nut 1/4-20

Note: Code: N Notates a new part (not previously existing)

$3.99

$

In Stock, Qty 16

0

18

White Outdoor 646-0875

Throttle Housing
(Superseded to 946-0875)

Note: Code: N Notates a new part (not previously existing)

$9.49

$

In Stock, only 4 left!

0

19

White Outdoor 746-0876

Throttle Lever
(Superseded to 946-0876)

Note: Code: N Notates a new part (not previously existing)

$8.49

$

In Stock, only 2 left!

0

20

White Outdoor 746-0843

Throttle Cable
(Superseded to 946-0671A)

Note: Code: N Notates a new part (not previously existing)

$14.99

$

Usually ships in 3-6 days

0

21

White Outdoor 710-1237

Hex Screw

Note: Code: N Notates a new part (not previously existing)

$4.49

$

Usually ships in 3-6 days

0

?22

White Outdoor 751B213146

Cable Clamp
(Superseded to BS-690798)

$5.49

$

In Stock, only 1 left!

0
