HW-50 (11A-508N190) - White Outdoor Lawn Boss 22" Walk-Behind Mower (1997) Handle, Wheel Ass'y, Engine Shroud & Deck Parts Diagram

Lawn Boss 22" Walk-Behind Mower

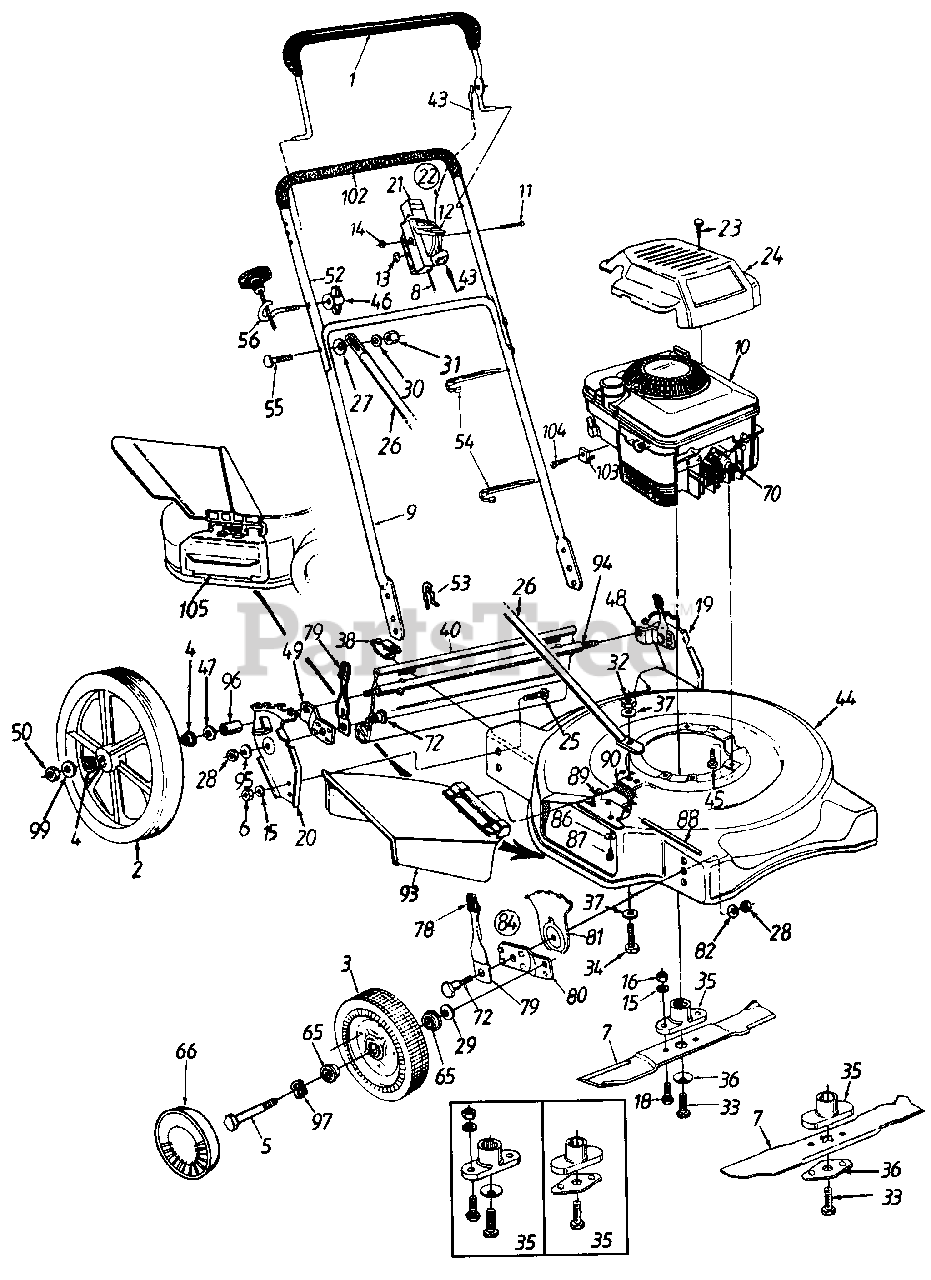

Handle, Wheel Ass'y, Engine Shroud & Deck Parts Diagram

  • Title

1

White Outdoor 647-0004

Control Handle
(Superseded to 747-0824B-0637)

$65.99

$

In Stock, only 1 left!

0

2

White Outdoor 734-1653

16" Wheel Ass'y.

$

$

Not available

3

White Outdoor 734-1819

Front Wheel Ass'y.
(Superseded to 734-1978)

$48.99

$

Usually ships in 3-6 days

0

4

White Outdoor 741-0484

Bearing 1/2" I.D.
(Superseded to 941-0484)

$7.49

$

In Stock, only 1 left!

0

5

White Outdoor 738-0102

Front Axle Bolt

$9.99

$

In Stock, Qty 10

0

6

White Outdoor 712-0328

Hex Nut 3/8-24 Thd. (Gr. 8)
(Superseded to 712-0241)

$4.49

$

In Stock, Qty 13

0

7

White Outdoor 742-0642

22" Blade
(Superseded to 942-0642A)

Note: Blade secured by 1 bolt.

$26.99

$

In Stock, only 1 left!

0

White Outdoor 742-0622

22" Blade
(Superseded to 942-0622)

Note: Blade secured by 3 bolts.

$

$

Not available

White Outdoor 742-0742

22" Mulching Blade
(Superseded to 942-0742A)

Note: (Optional) Blade secured by 1 bolt.

$24.99

$

In Stock, only 1 left!

0

White Outdoor 742-0722

22" Mulching Blade
(Superseded to 942-0722)

Note: (Optional) Blade secured by 3 bolts.

$31.99

$

Usually ships in 3-6 days

0

8

White Outdoor 746-0842

Throttle Control Wire - 51"
(Superseded to 946-0671A)

$14.99

$

Usually ships in 3-6 days

0

9

White Outdoor 749-0928

Lower handle
(Superseded to 749-0928A)

Variations

White Outdoor 749-0928-0637

Lower Handle - POWDER BLACK (0637)

$33.99

$

In Stock, only 3 left!

0

$33.99

$

In Stock, only 3 left!

0

10

Engine

$

$

Not available

11

White Outdoor 710-0605

Oval C-Sunk Mach. Scr.

$4.49

$

In Stock, only 3 left!

0

12

White Outdoor 746-0876

Throttle Lever
(Superseded to 946-0876)

$8.49

$

In Stock, only 2 left!

0

13

White Outdoor 736-0501

Spr. Wash. .66" I.D.
(Superseded to 936-0501)

$6.99

$

Usually ships in 3-6 days

0

14

White Outdoor 712-0324

Hex L-Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 16

0

15

White Outdoor 736-0169

L-Wash. 3/8" I.D.

Note: Blade secured by 1 bolt.

$3.99

$

In Stock, Qty 20+

0

16

White Outdoor 712-0241

Hex Nut 3/8-24 Thd.

Note: Blade secured by 1 bolt.

$4.49

$

In Stock, Qty 13

0

?17

White Outdoor 712-0431

Flange L-Nut 3/8-18 Thd.
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

18

White Outdoor 710-1055

Hex Bolt 3/8-24 x 1.0" Lg.

Note: Blade secured by 1 bolt.

$4.99

$

Usually ships in 3-6 days

0

19

White Outdoor 682-0517-0637

Handle Brkt. Ass'y. - L.H.

$

$

Not available

20

White Outdoor 682-0518-0637

Handle Brkt. Ass'y. - R.H.

$

$

Not available

21

White Outdoor 646-0875

Throttle Body
(Superseded to 946-0875)

$9.49

$

In Stock, only 4 left!

0

22

White Outdoor 811-0185

Throttle Box Comp.

Note: (Incl. Ref. 11, 12, 13, 14, 21)

$36.99

$

In Stock, only 1 left!

0

23

White Outdoor 710-1256

Hi-Lo Scr. #10 x 1.25" Lg.

$5.99

$

In Stock, only 3 left!

0

24

White Outdoor 751B281451

Engine Shroud

$

$

Not available

25

White Outdoor 710-0793

Ribbed Neck Bolt 3/8-24 x .80"

$

$

Not available

26

White Outdoor 749-0939-0637

Strut

$

$

Not available

27

White Outdoor 736-0451

Saddle Wash. .32" I.D.

$4.49

$

Usually ships in 3-6 days

0

28

White Outdoor 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, only 2 left!

0

29

White Outdoor 736-0105

Bell-Wash. .400" I.D. x .88"

$4.49

$

In Stock, Qty 20+

0

30

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

31

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

32

White Outdoor 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

33

White Outdoor 710-1044

Hex Bolt 3/8-24 x 1.5" Lg.

$3.99

$

In Stock, Qty 8

0

34

White Outdoor 710-0258

Hex Bolt 1/4-20 x 5/8" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

35

White Outdoor 753-0588

Blade Adapter Kit
(Superseded to 753-06315)

Note: Blade secured by 1 bolt.

$16.99

$

In Stock, only 1 left!

0

White Outdoor 753-0484

Blade Adapter Kit

Note: Blade secured by 3 bolts.

$23.99

$

In Stock, only 1 left!

0

36

White Outdoor 736-0524A

Blade Bell Support
(Superseded to 736-0524B-1)

Note: Blade secured by 1 bolt.

$5.99

$

In Stock, Qty 18

0

White Outdoor 736-0452

Bell-Wash. .39" I.D.

Note: Blade secured by 3 bolts.

$4.99

$

In Stock, Qty 7

0

37

White Outdoor 736-0270

Bell-Wash. 1/4" I.D.

$3.99

$

In Stock, Qty 20+

0

38

White Outdoor 17098

Hinge Clip
(Superseded to 17098P)

$

$

Not available

40

White Outdoor 731-1026

Rear Flap Ass'y.

$

$

Not available

43

White Outdoor 746-0550

Control Cable - 39"
(Superseded to 946-0550)

$21.99

$

In Stock, only 3 left!

0

44

682-0221-0637

22" Deck Ass'y.

$

$

Not available

45

White Outdoor 710-0654A

Hex Wash. Hd. TT-Tap Scr. 3/8-16 x 1.00" Lg.

$4.49

$

In Stock, only 3 left!

0

46

White Outdoor 720-0279

Handle Knob 1/4-20 Thd.

$4.49

$

Usually ships in 3-6 days

0

47

White Outdoor 736-0504

Wave Wash. .51" I.D.
(Superseded to 936-0504)

$4.49

$

In Stock, Qty 10

0

48

White Outdoor 782-0519

Small Pivot Bar - L.H.
(Superseded to 782-0519A)

$

$

Not available

49

White Outdoor 782-0520

Small Pivot Bar - R.H.
(Superseded to 782-0520A)

$

$

Not available

50

White Outdoor 712-3020

Hex Jam Nut 3/8-16 Thd.
(Superseded to 912-3020)

$6.49

$

In Stock, Qty 10

0

52

White Outdoor 749-0538C

Upper Handle
(Superseded to 749-0538E-0637)

Variations

White Outdoor 749-0538C-0637

UPPER HANDLE BLACK - POWDER BLACK (0637)

$

$

Not available

$

$

53

White Outdoor 714-0104

Intern. Cot. Pin 5/16" Dia.

$4.49

$

In Stock, Qty 20+

0

54

White Outdoor 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, only 2 left!

0

55

White Outdoor 710-1174

Curved Hd. Bolt 5/16-18 x 2" Lg.

$7.49

$

In Stock, Qty 20+

0

56

White Outdoor 710-1205

Rope Guide

$3.99

$

In Stock, only 2 left!

0

65

White Outdoor 741-0484

Bearing
(Superseded to 941-0484)

$7.49

$

In Stock, only 1 left!

0

66

White Outdoor 731-0981A

Hubcap
(Superseded to 731-0981C)

$10.99

$

Usually ships in 3-6 days

0

70

White Outdoor 735-0639

Spark Plug Boot

$

$

Not available

72

White Outdoor 738-0507B

Shoulder Bolt .50" Dia.

$4.49

$

In Stock, only 4 left!

0

78

White Outdoor 720-0190

Hgt. Adj. Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

79

White Outdoor 14832

Spring Lever Ass'y. w/Knob
(Superseded to 94832)

$10.99

$

In Stock, only 3 left!

0

80

White Outdoor 15262B

Pivot Bar

Variations

White Outdoor 15262B-0637

PIVOT BAR - POWDER BLACK (0637)

$14.99

$

In Stock, only 1 left!

0

$14.99

$

In Stock, only 1 left!

0

81

White Outdoor 15261A

Height Adj. Plate
(Superseded to 787-01290A)

$12.99

$

In Stock, only 2 left!

0

82

White Outdoor 736-0356

Bell-Wash. .39" I.D. x 1.38"
(Superseded to 936-0356)

$

$

Not available

84

White Outdoor 14578

Front Height Adj. Ass'y. Comp. - R.H.
(Superseded to 753-06761)

$65.99

$

In Stock, Qty 7

0

White Outdoor 14579

Front Height Adj. Ass'y. Comp. - L.H.
(Superseded to 753-06761)

Note: (Not shown)

$65.99

$

In Stock, Qty 7

0

86

White Outdoor 736-0270

Bell-Wash. .285" I.D. x .75"

$3.99

$

In Stock, Qty 20+

0

87

White Outdoor 710-0599

Hex Wash. Hd. Tap Scr. 1/4-20 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

88

White Outdoor 747-0710

Hinge Pin
(Superseded to 747-0710A)

$4.49

$

In Stock, Qty 20+

0

89

White Outdoor 17032

Adapter Plate
(Superseded to 17032A)

$10.99

$

In Stock, only 2 left!

0

90

White Outdoor 732-0593

Torsion Spring
(Superseded to 932-0593)

$4.99

$

In Stock, only 3 left!

0

93

White Outdoor 731-1034

Chute Deflector Ass'y. Comp.
(Superseded to 931-1034B)

Note: (Incl. Ref. 88, 89, 90)

$72.99

$

In Stock, Qty 6

0

94

White Outdoor 738-0878

Rear Axle

$

$

Not available

95

White Outdoor 736-0331

Bell-Wash. .39" I.D. x 1.13"

$3.99

$

In Stock, Qty 16

0

96

White Outdoor 750-0151

Spacer .55" I.D. x .75"
(Superseded to 950-0151)

$10.99

$

In Stock, Qty 20+

0

97

White Outdoor 736-0504

Wave Washer .51" I.D.
(Superseded to 936-0504)

$4.49

$

In Stock, Qty 10

0

99

White Outdoor 736-3050

Fl-Wash. .406" I.D. x .81"

$4.49

$

In Stock, Qty 16

0

?100

White Outdoor 736-0182

Spr. Wash. .5" I.D. x 1.0"

$4.49

$

In Stock, Qty 7

0

102

White Outdoor 720-0295

Foam Grip

$33.99

$

Usually ships in 3-6 days

0

103

White Outdoor 751B213146

Casing Clamp
(Superseded to BS-690798)

$5.49

$

In Stock, only 1 left!

0

104

White Outdoor 710-1237

Hex Wash. Hd. Tap Scr. #10-32 x .62" Lg.

$4.49

$

Usually ships in 3-6 days

0

105

White Outdoor 731-1386A

Mulching Baffle
(Superseded to 731-1386D)

Note: (Optional)

$

$

Not available

777-4721

Label - WHITE Engine Shroud

$

$

Not available

White Outdoor 777-3801A

Label - Combination Safety
(Superseded to 777S30142)

$13.99

$

Usually ships in 3-6 days

0

White Outdoor 777-0148

Label - Throttle Housing
(Superseded to 777I20287)

$

$

Not available

White Outdoor 777-1584

Label - Deflector Danger
(Superseded to 977S30145)

$10.99

$

In Stock, only 1 left!

0
