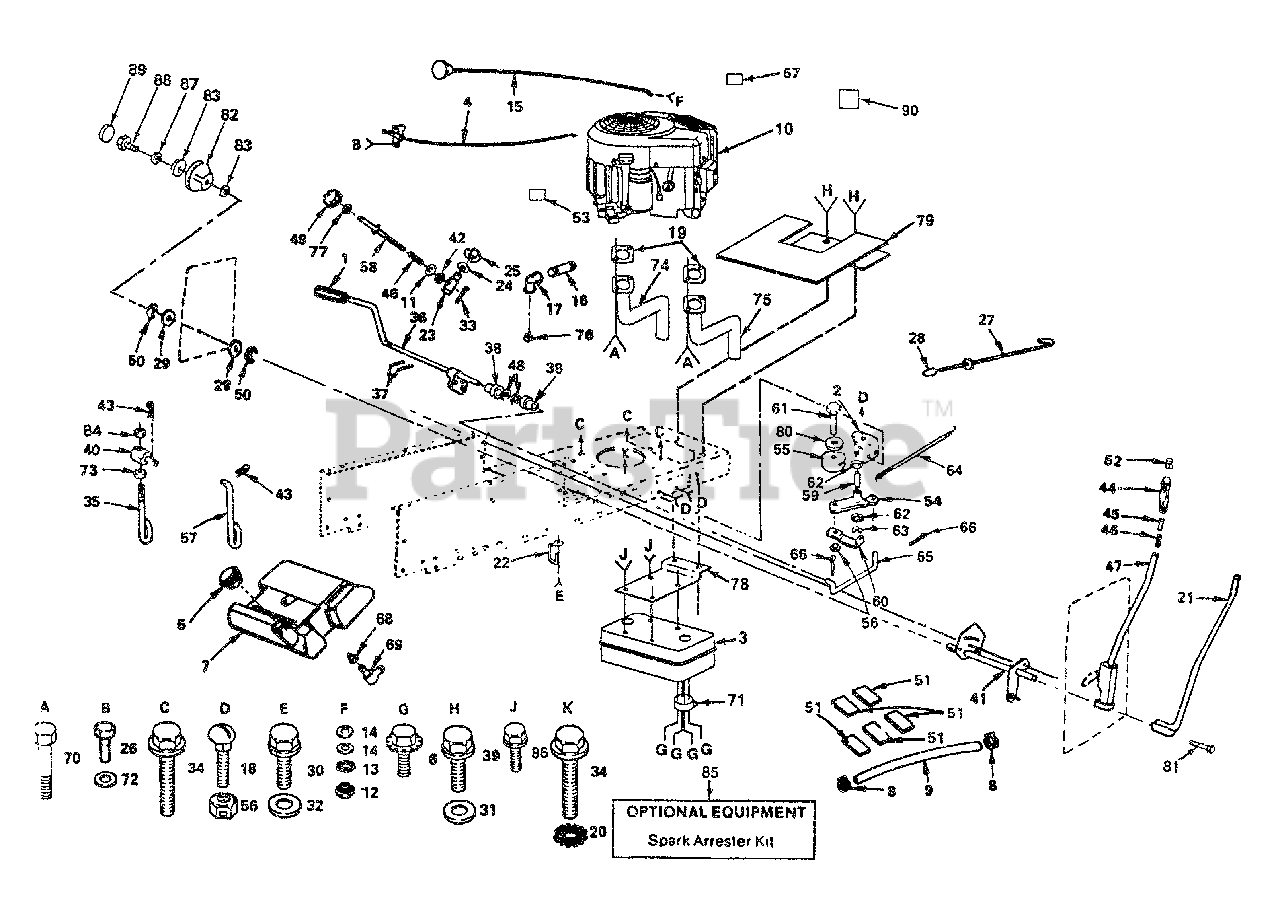

HVGTV 160 AR - Husqvarna Garden Tractor (1990-01) Power And Mechanical Controls Group Parts Diagram

Garden Tractor

Power And Mechanical Controls Group Parts Diagram

  • Title

1

Husqvarna 532124872

Pedal Cover
(Superseded to 532008883)

$6.49

$

In Stock, Qty 14

0

2

Husqvarna 532123102

Bracket Assembly-Clutch

$11.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532122440

Muffler

$

$

Not available

4

Husqvarna 532122927

Control, Throttle
(Superseded to 532132748)

$

$

Not available

5

Husqvarna 532124462

Fuel Ca

$

$

Not available

6

Husqvarna 817450808

Screw-Spider Lock

$2.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532106020

Tank-Fuel

$

$

Not available

8

Husqvarna 532123487

Hose Clamp

$7.49

$

In Stock, Qty 14

0

9

Husqvarna 532008542

Fuel Line

$

$

Not available

10

Husqvarna 532122436

Engine Briggs & Stratton 15 H.P., Model Number 303777 Type No. 0015-02
(Superseded to 532101326)

$

$

Not available

11

Husqvarna 819131016

Washer 13/32 x 5/8 x 16 Ga.

$6.49

$

In Stock, only 4 left!

0

12

Husqvarna 873610600

Nut-Hex 3/8-24
(Superseded to 873800600)

$3.99

$

Usually ships in 3-10 days

0

13

Husqvarna 811050600

Washer, Lock, External Tooth 3/8
(Superseded to 810040600)

Note: STANDARD HARDWARE - PURCHASE LOCALLY

$3.49

$

In Stock, Qty 20+

0

14

Husqvarna 819131316

Washer 13/32 x 13/16 x 16 Ga.
(Superseded to 596565301)

Note: STANDARD HARDWARE - PURCHASE LOCALLY

$3.99

$

In Stock, Qty 20+

0

15

Husqvarna 532122926

Control-Choke
(Superseded to 532132781)

$

$

Not available

16

Husqvarna 813280336

Std. Pipe Nipple

$

$

Not available

17

Husqvarna 813200300

90° Elbow 3/8 NPT
(Superseded to 532428287)

$18.99

$

In Stock, Qty 20+

0

18

Husqvarna 872140606

Bolt-Carr. 3/8-16 x 3/4

$

$

Not available

19

Gasket, Muffler

Note: (See engine pages for replacement number)

$

$

Not available

20

Husqvarna 811050600

Washer, Lock 3/4
(Superseded to 810040600)

$3.49

$

In Stock, Qty 20+

0

21

Husqvarna 532121006

Rod Assembly-Lever

$34.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532123788

Retainer-Belt, Chassis, L.H.

$2.99

$

Usually ships in 3-10 days

0

23

Husqvarna 532110810

Trunnion-Stop, Depth

$

$

Not available

24

Husqvarna 819151216

Washer 15/32 x 3/4 x 16 Ga.

$

$

Not available

25

Husqvarna 812000037

Klip Ring

$6.49

$

Usually ships in 3-10 days

0

26

Husqvarna 817080408

Screw-Hex Washer Hd. Thd. Cutting 1/4-20 x 1/2

$2.99

$

Usually ships in 3-10 days

0

27

Husqvarna 532125637

Rod-Brake, Park
(Superseded to 532133261)

$

$

Not available

28

Husqvarna 532071673

Plunger Cap

$5.99

$

Usually ships in 3-10 days

0

29

Husqvarna 819292016

Washer 29132 x 1-1/4 x 16 Ga.

$7.99

$

Usually ships in 3-10 days

0

30

Husqvarna 817490612

Screw-Hex Washer Thd. Rolling 3/8-16 x 3/4
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

31

Husqvarna 819131614

Washer 13/32 x 1 x 14 Ga.
(Superseded to 819131612)

Note: STANDARD HARDWARE - PURCHASE LOCALLY

$6.49

$

Usually ships in 3-10 days

0

32

Husqvarna 819131316

Washer 13/32 x 1-3/16 x 16 Ga.
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

33

Husqvarna 876020308

Cotter Pin 3/32 x 1/2
(Superseded to 532003145)

$

$

Not available

34

Husqvarna 817490624

Screw-Hex Washer Hd. Thd. Rolling 3/8-16 x 1 1/2 Type TT
(Superseded to 874930624)

$7.99

$

Usually ships in 3-10 days

0

35

Husqvarna 532110448

Lift Link-Adjustable

$7.99

$

Usually ships in 3-10 days

0

36

Husqvarna 532122424

Shaft Pedal Foot

$

$

Not available

37

Husqvarna 532001572

Roll Pin 3/16 x 1

$4.99

$

In Stock, Qty 7

0

38

Husqvarna 532120183

Bearing, Nylon

$6.99

$

In Stock, Qty 20+

0

39

Husqvarna 817490512

Screw 5/16-18 x 3/4
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

40

Husqvarna 532110447

Trunnion, Lift
(Superseded to 532132793)

$

$

Not available

41

Husqvarna 532124516

Shaft Assembly-Lift

$

$

Not available

42

Husqvarna 532110807

Nut-hex Special

Note: STANDARD HARDWARE - PURCHASE LOCALLY

$

$

Not available

43

Husqvarna 532124670

Retainer Spring

$

$

Not available

44

Husqvarna 532109413

Grip-Handle

$4.99

$

Usually ships in 3-10 days

0

45

Husqvarna 532122364

Plunger-Lever Lift
(Superseded to 532125925)

$

$

Not available

46

Husqvarna 532124874

Spring
(Superseded to 532002876)

$7.49

$

Usually ships in 3-10 days

0

47

Husqvarna 532121002

Lever Assembly, Hand Kit
(Superseded to 532123096)

Note: (Incl. Key No. 21)

$

$

Not available

48

Husqvarna 819211616

Washer 21/32 x 1 x 16 Ga.

$6.49

$

Usually ships in 3-10 days

0

49

Husqvarna 532121891

Handle-Adjust, Lift

$

$

Not available

50

Husqvarna 812000022

E-Ring

$4.99

$

In Stock, Qty 10

0

51

Husqvarna 532006431

Pad-Spacer

$

$

Not available

52

Husqvarna 532124526

Button, Plunger
(Superseded to 532125925)

$

$

Not available

53

Husqvarna 532125971

Decal, Air Cleaner

$

$

Not available

54

Husqvarna 532123789

Arm Assembly, Idler

$

$

Not available

55

Husqvarna 532123766

Pulley-Idler
(Superseded to 532139245)

$37.99

$

In Stock, only 2 left!

0

56

Husqvarna 873680600

Locknut 3/8-16

$3.99

$

Usually ships in 3-10 days

0

57

Husqvarna 532110029

Link-Lift

$

$

Not available

58

Husqvarna 532110729

Rod-Adjust, Lift

$

$

Not available

59

Husqvarna 532105706

Bearing

$7.49

$

In Stock, Qty 10

0

60

Husqvarna 532123205

Retainer-Belt

$6.49

$

Usually ships in 3-10 days

0

61

Husqvarna 74760624

Bolt-Hex 3/8-16 x 1-1/2

Note: STANDARD HARDWARE - PURCHASE LOCALLY

$

$

Not available

62

Husqvarna 532110812

Washer-Hardened

$

$

Not available

63

Husqvarna 812000039

Ring Klip

$6.49

$

In Stock, Qty 7

0

64

Husqvarna 532105709

Spring-Return, Clutch

$11.99

$

Usually ships in 3-10 days

0

65

Husqvarna 532105710

Link-Clutch
(Superseded to 532199652)

$13.99

$

Usually ships in 3-10 days

0

66

Husqvarna 876020412

Pin-Cotter 1/8 x 3/4
(Superseded to 539990365)

$6.49

$

In Stock, Qty 20+

0

67

Husqvarna 532123161

Decal, Engine instruction

$

$

Not available

68

Husqvarna 532003645

Bushing

$4.99

$

In Stock, Qty 20+

0

69

Husqvarna 532124951

Stem-Tank, Fuel
(Superseded to 532008710)

$

$

Not available

70

Bolt, Metric

Note: (see engine pages for replacement number)

$

$

Not available

71

Husqvarna 532101326

Deflector, Muffler

$

$

Not available

72

Husqvarna 532110457

Washer 9/32 x 5/8 x 16 Ga.
(Superseded to 819091016)

$4.99

$

Usually ships in 3-10 days

0

73

Husqvarna 873360700

Nut Hex Jam 7/16-20
(Superseded to 873610700)

$7.49

$

In Stock, Qty 20+

0

74

Husqvarna 532122434

Tube Assembly- Exhaust-L.H.

$

$

Not available

75

Husqvarna 532122435

Tube Assembly-Exhaust- R. H.

$75.99

$

Usually ships in 3-10 days

0

76

Husqvarna 532091084

Oil Drain

$

$

Currently unavailable

77

Husqvarna 873350600

Nut-Hex Jam 3/8-16
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

78

Husqvarna 532122439

Muffler, Bracket-Mounting

$

$

Not available

79

Husqvarna 532122981

Heat Shield

$

$

Not available

80

Husqvarna 819131316

Washer 13/32 x 13/16 x 16 Ga.
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

81

Husqvarna 874780624

Bolt, Hex 3/8-16 x 1-1/2
(Superseded to 874930624)

$7.99

$

Usually ships in 3-10 days

0

82

Husqvarna 532123934

Scale, Height Indicator

$

$

Not available

83

Husqvarna 819112410

Washer 11/32 x 1-1/2 x 10 Ga.

$6.49

$

Usually ships in 3-10 days

0

84

Husqvarna 873710700

Nut, Crownlock 7/16-20
(Superseded to 873610700)

$7.49

$

In Stock, Qty 20+

0

85

Husqvarna 532124803

Spark Arrestor Kit
(Superseded to 532674380)

$

$

Not available

86

Husqvarna 817490408

Screw, Hex Washer Hd, Thread Cutting 1/4-20 x 1/2
(Superseded to 874780408)

$3.99

$

Usually ships in 3-10 days

0

87

Husqvarna 810040500

Washer, Lock
(Superseded to 596238801)

$3.99

$

In Stock, Qty 17

0

88

Husqvarna 874780516

Bolt, Hex 5/16-18 x 1

$6.49

$

Usually ships in 3-10 days

0

89

Husqvarna 532123935

Plug, Hole

$5.99

$

Usually ships in 3-10 days

0

90

Husqvarna 532123161

Decal, Engine Instruction

$

$

Not available
