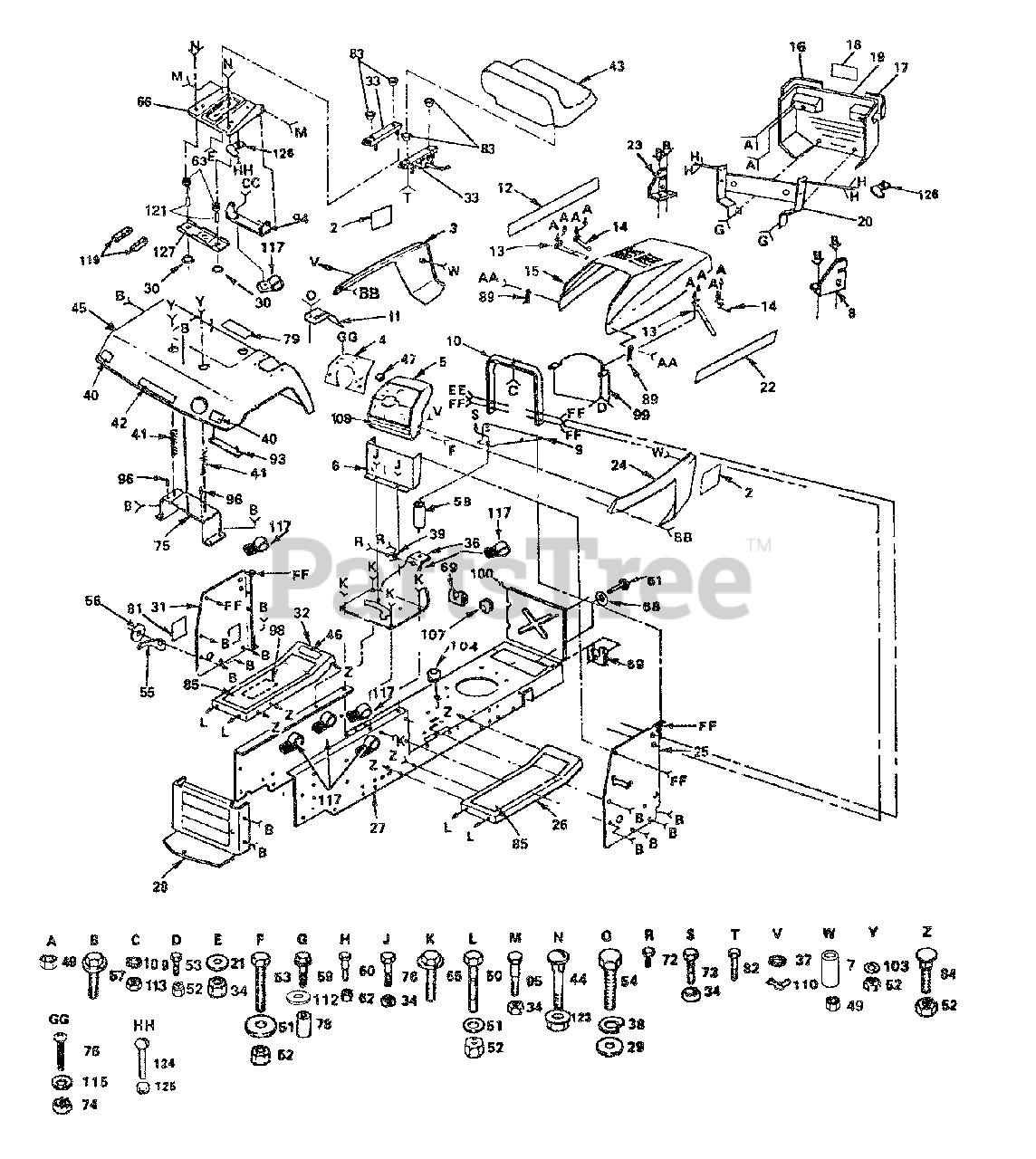

HVGTV 160 AR - Husqvarna Garden Tractor (1990-01) Enclosures Parts Diagram

Garden Tractor

Enclosures Parts Diagram

  • Title

2

Husqvarna 532124487

Decal-Side Panel

$

$

Not available

3

Husqvarna 532125009

Panel-Side, L.H.

$

$

Not available

4

Husqvarna 532124772

Dash, Plate
(Superseded to 532123952)

$

$

Not available

5

Husqvarna 532124182

Dashboard
(Superseded to 532140452)

$

$

Not available

6

Husqvarna 532104805

Dash, Assembly-Lower

$

$

Not available

7

Husqvarna 532001260

Spacer

$

$

Not available

8

Husqvarna 532110853

Bracket, Assembly R.H.

$

$

Not available

9

Husqvarna 532106965

Plate-Support, Battery

$

$

Not available

10

Husqvarna 532124130

Support, Assembly-Dash

$

$

Not available

11

Husqvarna 532123825

Console, Shifter

$

$

Not available

12

Husqvarna 532124480

Decal-Hood, L.H.

$

$

Not available

13

Husqvarna 532106784

Strap, Assembly-Hinge, Rear

$

$

Not available

14

Husqvarna 532104618

Strap, Assembly-Hinge, Front

$

$

Not available

15

Husqvarna 532125007

Hood
(Superseded to 532125454)

$

$

Not available

16

Husqvarna 532124250

Lens, L.H.
(Superseded to 532157068)

$

$

Not available

17

Husqvarna 532124251

Lens, R.H.
(Superseded to 532157069)

$

$

Not available

18

Husqvarna 532124483

Decal, Grill

$

$

Not available

19

Husqvarna 532124573

Grill, Assembly
(Superseded to 532157236)

$

$

Not available

20

Husqvarna 532124574

Support Assembly, Grill

$

$

Not available

21

Husqvarna 819111610

Washer 11/32 x 1 x 10 Ga.

$6.49

$

Usually ships in 3-10 days

0

22

Husqvarna 532124481

Decal-Hood, R.H.

$

$

Not available

23

Husqvarna 532110852

Bracket, Assembly L.H.

$

$

Not available

24

Husqvarna 532125008

Panel-Side, R.H.
(Superseded to 532140677)

$

$

Not available

25

Husqvarna 532110828

Panel-Dash, R.H.

$

$

Not available

26

Husqvarna 532125036

Footrest-R.H.

$

$

Not available

27

Husqvarna 532121277

Chassis

$

$

Not available

28

Husqvarna 532123785

Drawbar
(Superseded to 532145009)

$

$

Not available

29

Husqvarna 819060718

Washer 3/16 x 7/16 x 18 Ga.

$2.99

$

Usually ships in 3-10 days

0

30

Husqvarna 532121248

Bushing, Snap

$6.49

$

Usually ships in 3-10 days

0

31

Husqvarna 532124118

Panel-Dash, L.H.

$

$

Not available

32

Husqvarna 532124722

Footrest-L.H
(Superseded to 532147203)

$

$

Not available

33

Husqvarna 532124428

Slide Set, Seat

$

$

Not available

34

Husqvarna 873680500

Locknut 5/16- 18
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

36

Husqvarna 532124771

Saddle
(Superseded to 532123783)

$

$

Not available

37

Husqvarna 811030400

Washer, Lock 1/4 Int./Ext.
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

38

Husqvarna 810100800

Washer, Lock #8

$3.99

$

Usually ships in 3-10 days

0

39

Husqvarna 532124720

Bushing-Steering
(Superseded to 532155108)

$7.99

$

In Stock, only 1 left!

0

40

Husqvarna 532106202

Reflector-Taillight

$

$

Not available

41

Husqvarna 532124181

Spring-Compression
(Superseded to 587613301)

$6.99

$

In Stock, only 4 left!

0

42

Husqvarna 532124484

Decal-Fender

$

$

Not available

43

Husqvarna 532124187

Seat
(Superseded to 532126826)

$188.99

$

Usually ships in 3-10 days

0

44

Husqvarna 872170410

Bolt, Carr. 1/4-20 x 1-1/4

$4.99

$

Usually ships in 3-10 days

0

45

Husqvarna 532124857

Fender

$

$

Currently unavailable

46

Husqvarna 532101892

Decal-Clutch/Brake

$

$

Not available

47

Husqvarna 532005479

Plug-Dash

$5.99

$

Usually ships in 3-10 days

0

49

Husqvarna 873510400

Nut, Hex 1/4-20
(Superseded to 873680400)

Note: STANDARD HARDWARE - PURCHASE LOCALLY

$4.99

$

In Stock, Qty 16

0

50

Husqvarna 874760612

Bolt-Hex 3/8-16 x 3/4

Note: STANDARD HARDWARE - PURCHASE LOCALLY

$4.99

$

In Stock, only 3 left!

0

51

Husqvarna 819131312

Washer 13/32 x 13/16 x 12 Ga.
(Superseded to 734117201)

$3.49

$

Usually ships in 3-10 days

0

52

Husqvarna 873680600

Nut-Crownlock 3/8-16

$3.99

$

Usually ships in 3-10 days

0

53

Husqvarna 874760616

Bolt-Hex 3/8-16 x 1
(Superseded to 874780616)

Note: STANDARD HARDWARE - PURCHASE LOCALLY

$6.49

$

Usually ships in 3-10 days

0

54

Husqvarna 874640806

Screw #8-3/8

Note: STANDARD HARDWARE - PURCHASE LOCALLY

$4.99

$

Usually ships in 3-10 days

0

55

Husqvarna 532124763

Pointer, Height Indicator
(Superseded to 532123933)

$3.99

$

Usually ships in 3-10 days

0

56

Husqvarna 532120529

Washer, Nylon

$2.99

$

Usually ships in 3-10 days

0

57

Husqvarna 817490612

Screw-Hex Washer Hd. Thd. Rolling.,3/8-16 x 3/4 Type TT
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

58

Husqvarna 532121236

Spacer

$

$

Not available

59

Husqvarna 874760424

Bolt, Hex 1/4-20 x 1-1/2

$

$

Not available

60

Husqvarna 532123481

Bolt-Shoulder 1/4-20
(Superseded to 532007605)

$6.49

$

Usually ships in 3-10 days

0

61

Husqvarna 532123650

Stud 1/4 Turn

$6.49

$

Usually ships in 3-10 days

0

62

Husqvarna 873680400

Nut-Crownlock 1/4-20
(Superseded to 586668901)

$4.99

$

In Stock, Qty 16

0

63

Husqvarna 532123740

Spring, Compression

$6.49

$

Usually ships in 3-10 days

0

65

Husqvarna 817490608

Screw-Hex Washer Hd. Thd.Forming 3/8-16 x 1/2 Type TT

$6.49

$

Usually ships in 3-10 days

0

66

Husqvarna 532124294

Pan-Seat

$

$

Not available

68

Husqvarna 532105838

Retainer 1/4 Turn

$6.49

$

Usually ships in 3-10 days

0

69

Husqvarna 532105839

Receptacle 1/4 Turn

$3.99

$

In Stock, only 1 left!

0

72

Husqvarna 817431008

Screw-Hex Head Self Tapping #10 16 x 1/2 Type B
(Superseded to 817211008)

$4.99

$

Usually ships in 3-10 days

0

73

Husqvarna 874760532

Bolt-Hex 5/16 -18 x 2 Gr 2

Note: STANDARD HARDWARE - PURCHASE LOCALLY

$2.99

$

Usually ships in 3-10 days

0

74

Husqvarna 873510500

Nut-Keps 5/16-18
(Superseded to 873680500)

$3.99

$

Usually ships in 3-10 days

0

75

Husqvarna 532105509

Bracket Assembly-Fender
(Superseded to 532183569)

$14.99

$

Usually ships in 3-10 days

0

76

Husqvarna 874180512

Screw,Mach. 5/1 6-18 x 3/4

$

$

Not available

78

Husqvarna 532121249

Spacer

$6.49

$

In Stock, only 2 left!

0

79

Husqvarna 532120822

Decal-OPEI-Caution

$

$

Not available

81

Husqvarna 532121794

Cover-Access

$

$

Not available

82

Husqvarna 817190516

Screw, Hex 5/16-18 x 1

$

$

Not available

83

Husqvarna 532124427

Spacer

$

$

Not available

84

Husqvarna 872140606

Bolt-Carriage 3/8-16 x 3/4

Note: STANDARD HARDWARE - PURCHASE LOCALLY

$

$

Not available

85

Husqvarna 532108256

Pad-Footrest

$

$

Not available

89

Husqvarna 532109808

Latch-Hood

$6.99

$

In Stock, Qty 14

0

93

Husqvarna 532105511

Strap Assembly Fender
(Superseded to 532140675)

$6.99

$

Usually ships in 3-10 days

0

94

Husqvarna 532126656

Bracket-Pivot, Seat

$

$

Not available

95

Husqvarna 532105529

Bolt-Shoulder 5/16-18
(Superseded to 532139888)

$6.49

$

In Stock, only 1 left!

0

96

Husqvarna 532105531

Nut-Push

$2.99

$

Usually ships in 3-10 days

0

98

Husqvarna 532109199

Decal-V-Belt Drive Schematic Tractor

$

$

Not available

99

Husqvarna 532126493

Baffle-Rear Upper

$

$

Not available

100

Husqvarna 532108105

Baffle-Rear Lower

$

$

Not available

103

Husqvarna 819131614

Washer 13/32 x 1 x 14 Ga.
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

104

Husqvarna 532124934

Grommet

$

$

Not available

107

Husqvarna 532110436

Grommet, Split
(Superseded to 532009151)

$

$

Not available

108

Husqvarna 532109821

Decal, Operating Instructions

$

$

Not available

109

Husqvarna 811050400

Washer, Lock 114 Int. Ext.
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

110

Husqvarna 873490400

Wingnut 1/4-20
(Superseded to 532146525)

$

$

Not available

112

Husqvarna 819091216

Washer 9/32 x 3/4 x 16 Ga

$

$

Not available

113

Husqvarna 873220400

Nut-Hex 1/4-20
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

115

Husqvarna 819111116

Washer 11/32 x 11/16 x 16 Ga.
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0

117

Husqvarna 532124996

Clip, Insulated
(Superseded to 532002751)

$

$

Not available

119

Husqvarna 532121251

Foam Strip

$

$

Not available

121

Husqvarna 532121249

Spacer Split 0.28 x 0.88

$6.49

$

In Stock, only 2 left!

0

123

Husqvarna 532123976

Locknut, Hex, Large Flanged 1/4-20 UNC
(Superseded to 873900400)

$4.99

$

In Stock, Qty 16

0

124

Husqvarna 874641008

Screw, Slotted Pan Head #10-32 x 1/2

$2.99

$

Usually ships in 3-10 days

0

125

Husqvarna 873951000

Nut, Keps #10-32 UNC

$5.99

$

Usually ships in 3-10 days

0

126

Husqvarna 532004171

Clip, insulated
(Superseded to 532124967)

$

$

Not available

127

Husqvarna 532121246

Bracket, Switch Mount
(Superseded to 532174648)

$10.99

$

Usually ships in 3-10 days

0
