HVGTV 160 AR - Husqvarna Garden Tractor (1990-01) Electrical Hardware Parts Diagram

Garden Tractor

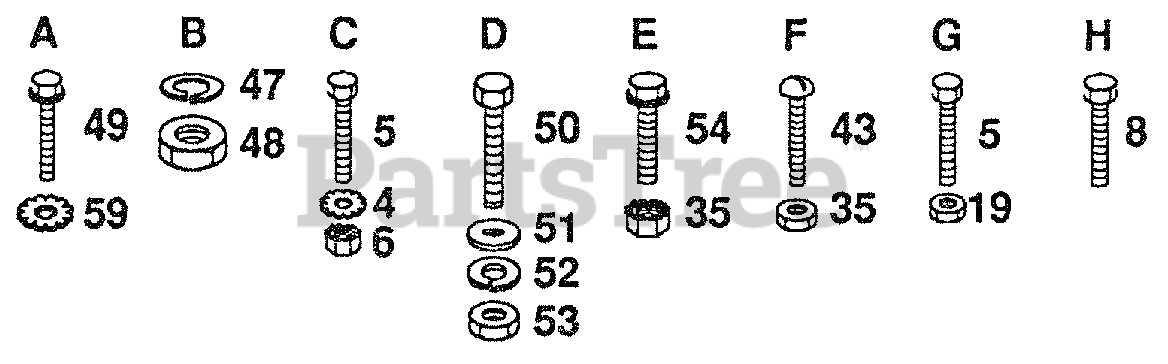

Electrical Hardware Parts Diagram

  • Title
4

Husqvarna 811050400

Washer, Lock Ext. Tooth 1/4
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

5

Husqvarna 874780408

Bolt, Hex 1/4-20 x 1/2
(Superseded to 539990071)

$3.99

$

Usually ships in 3-10 days

0

6

Husqvarna 873510400

Nut, Hex Keps. 1/4-20
(Superseded to 873680400)

$4.99

$

In Stock, Qty 16

0

8

Husqvarna 817011008

Screw #10-24 x 1/2

$

$

Not available

19

Husqvarna 873680400

Nut, Crownlock 1/4-20
(Superseded to 586668901)

$4.99

$

In Stock, Qty 16

0

35

Husqvarna 873951000

Nut Keps No. 10-32

$5.99

$

Usually ships in 3-10 days

0

43

Husqvarna 874641008

Screw-Slot-Pan HD 10-32 x 1/2

$2.99

$

Usually ships in 3-10 days

0

47

Husqvarna 810090400

Lockwasher 1/4
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

48

Husqvarna 873350400

Nut, Hex Jam 1/4 - 20
(Superseded to 873220400)

$6.49

$

In Stock, only 1 left!

0

49

Husqvarna 817190408

Screw- Hex Washer Hd. Cutting 1/4-20 x 1/2
(Superseded to 874780408)

$3.99

$

Usually ships in 3-10 days

0

50

Husqvarna 874760412

Bolt - Hex Hd. 1/4 - 20 x 3/4

Note: STANDARD HARDWARE - PURCHASE LOCALLY

$7.49

$

In Stock, only 1 left!

0

51

Husqvarna 819091016

Washer 9/32 x 5/8 x 16 Ga.

$4.99

$

Usually ships in 3-10 days

0

52

Husqvarna 810040400

Lockwasher 1/4
(Superseded to 596029801)

Note: STANDARD HARDWARE - PURCHASE LOCALLY

$3.99

$

In Stock, only 2 left!

0

53

Husqvarna 873220400

Nut-Hex 1 /4-20
(Superseded to 532050675)

Note: STANDARD HARDWARE - PURCHASE LOCALLY

$6.49

$

In Stock, only 1 left!

0

54

Husqvarna 817021008

Screw- Hex Washer Hd. No. 10-24 x 1 - 1/2

$4.99

$

In Stock, Qty 14

0

59

Husqvarna 811050600

Lockwasher, Ext. Tooth 3/8
(Superseded to 810040600)

$4.99

$

In Stock, Qty 19

0

Husqvarna 532124537

Operators Manual (English

$

$

Not available

Husqvarna 532124538

Owners Manual (French)

$

$

Currently unavailable

Husqvarna 532101539

Sheet-Instruction, Tractor 15° Slope (English)

$

$

Not available

Husqvarna 532101572

Sheet-Instruction, Tractor 15° Slope (French)

$

$

Not available

Husqvarna 532126892

Parts Manual (English)

$

$

Not available
