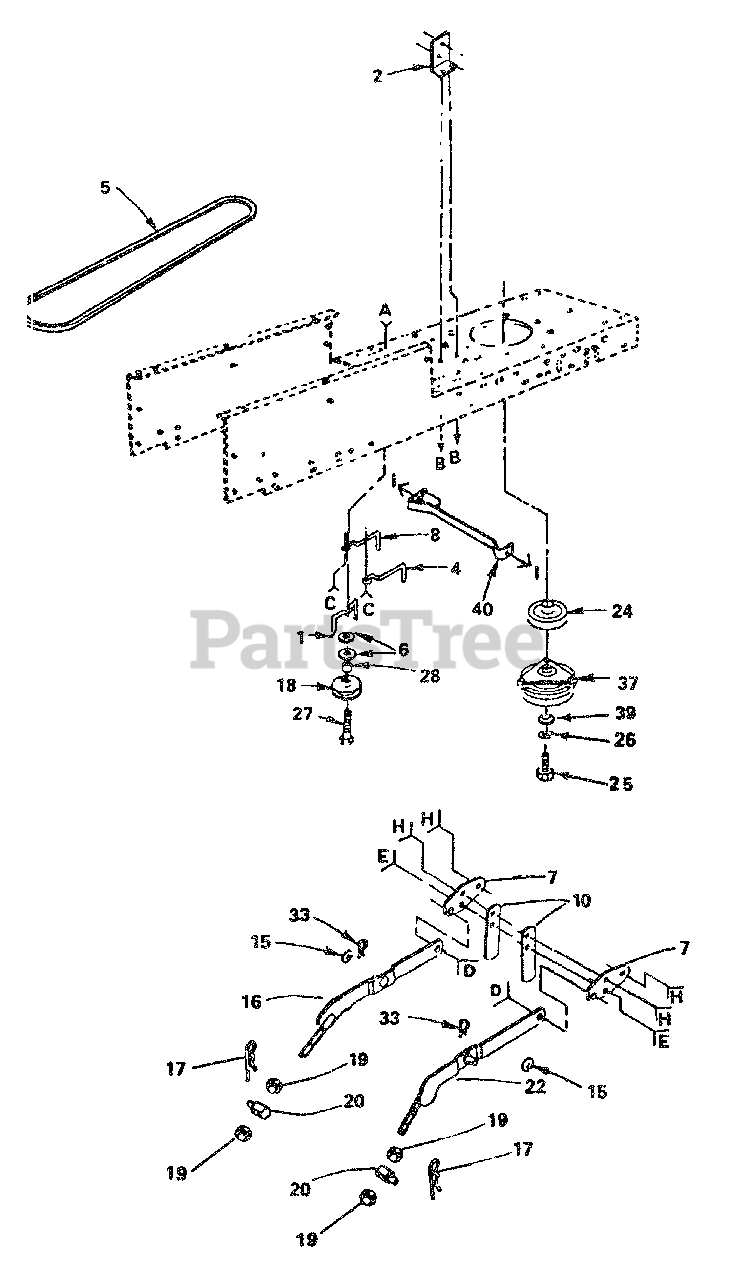

HVGTV 160 AR - Husqvarna Garden Tractor (1990-01) Drive Group Parts Diagram

Garden Tractor

Drive Group Parts Diagram

  • Title

1

Husqvarna 532109070

Retainer Belt

$6.49

$

Usually ships in 3-10 days

0

2

Husqvarna 532108236

Bracket-Switch

$2.99

$

Usually ships in 3-10 days

0

4

Husqvarna 532105730

Keeper-Belt, Engine

$4.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532123796

V-Belt, Drive

$

$

Not available

6

Husqvarna 819131316

Washer 13/32 x 13/16 x 16 Ga.
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

7

Husqvarna 532105864

Bracket-Suspension

$

$

Not available

8

Husqvarna 532121218

Keeper, Belt Engine

$

$

Not available

10

Husqvarna 532121252

Upstop, Mower

$4.99

$

Usually ships in 3-10 days

0

15

Husqvarna 819171516

Washer 17/32 x 15/16 x 16 Ga.
(Superseded to 734117801)

$

$

Not available

16

Husqvarna 532121599

Arm Assembly-Suspension-L.H.

$

$

Not available

17

Husqvarna 532009135

Retainer-Spring

$4.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532123674

Idler-Flat

$31.99

$

In Stock, only 1 left!

0

19

Husqvarna 873220800

Nut-Hex 1/2-13
(Superseded to 873350800)

Note: STANDARD HARDWARE - PURCHASE LOCALLY

$

$

Not available

20

Husqvarna 532106308

Trunnion-Lift Lower
(Superseded to 532175689)

$

$

Not available

22

Husqvarna 532121598

Arm Assembly-Suspension-R.H.

$

$

Not available

24

Husqvarna 532123795

Pulley-Engine
(Superseded to 532136906)

$

$

Not available

25

Husqvarna 874610764

Bolt-Hex 7/16-20 x 4
(Superseded to 871130768)

$

$

Not available

26

Husqvarna 810040700

Washer-Lock 7/18
(Superseded to 539990247)

Note: STANDARD HARDWARE - PURCHASE LOCALLY

$

$

Not available

27

Husqvarna 874760644

Bolt-Hex 3/8-16 x 2-3/4

Note: STANDARD HARDWARE - PURCHASE LOCALLY

$6.49

$

Usually ships in 3-10 days

0

28

Husqvarna 532004470

Spacer
(Superseded to 532124965)

$6.49

$

Usually ships in 3-10 days

0

33

Husqvarna 532004921

Spring-Retainer

$6.49

$

Usually ships in 3-10 days

0

37

Husqvarna 532108218

Clutch-Electric
(Superseded to 532142600)

$

$

Not available

39

Husqvarna 532126197

Washer 1-1/2 x 15/32 x 1/4

$8.99

$

In Stock, only 3 left!

0

40

Husqvarna 532109169

Locater-Clutch
(Superseded to 532109172)

$

$

Not available
