HVGTK 180 AR - Husqvarna Garden Tractor (1990-03) Frame, Fender And Drawbar Parts Diagram

Garden Tractor

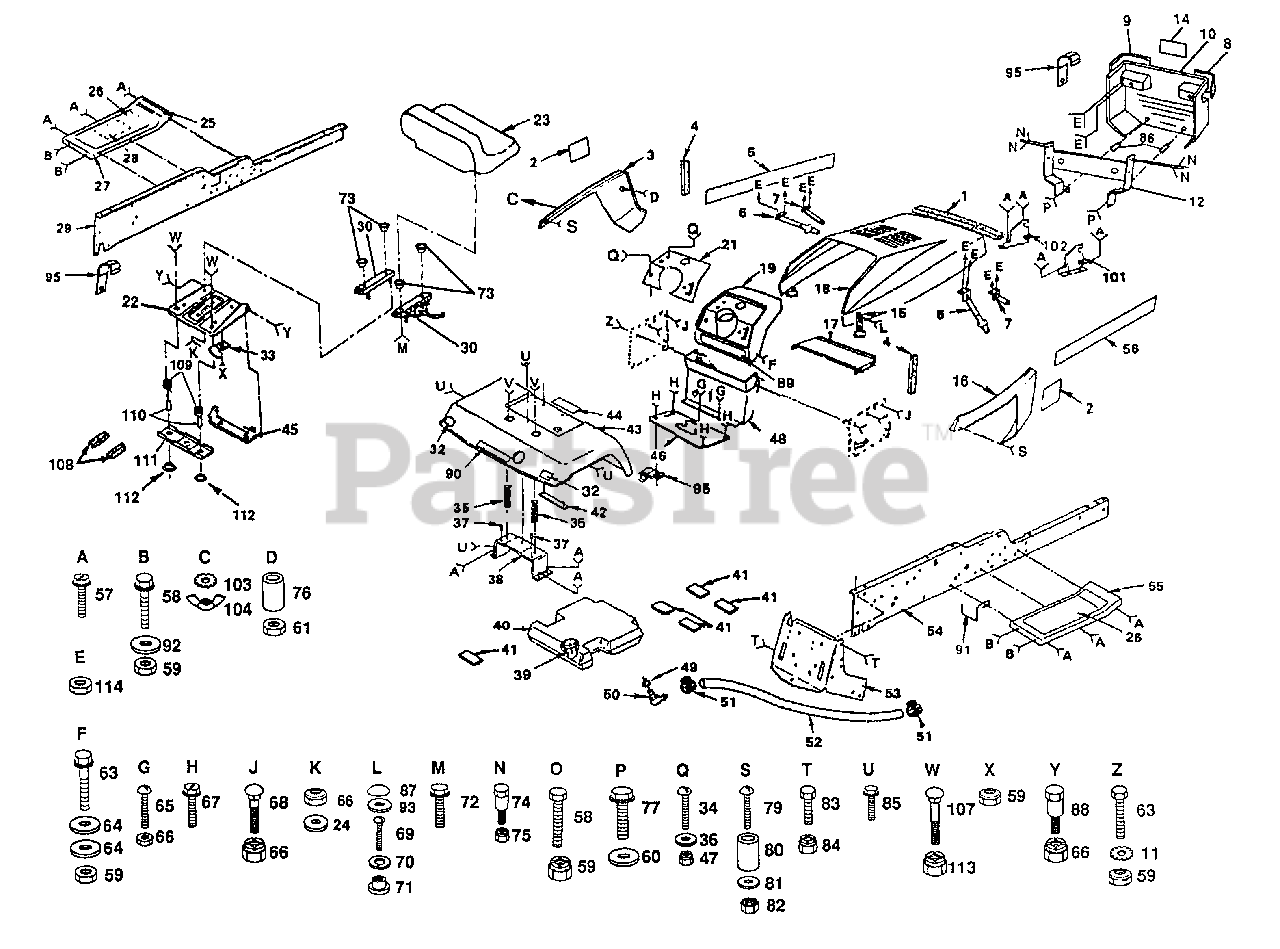

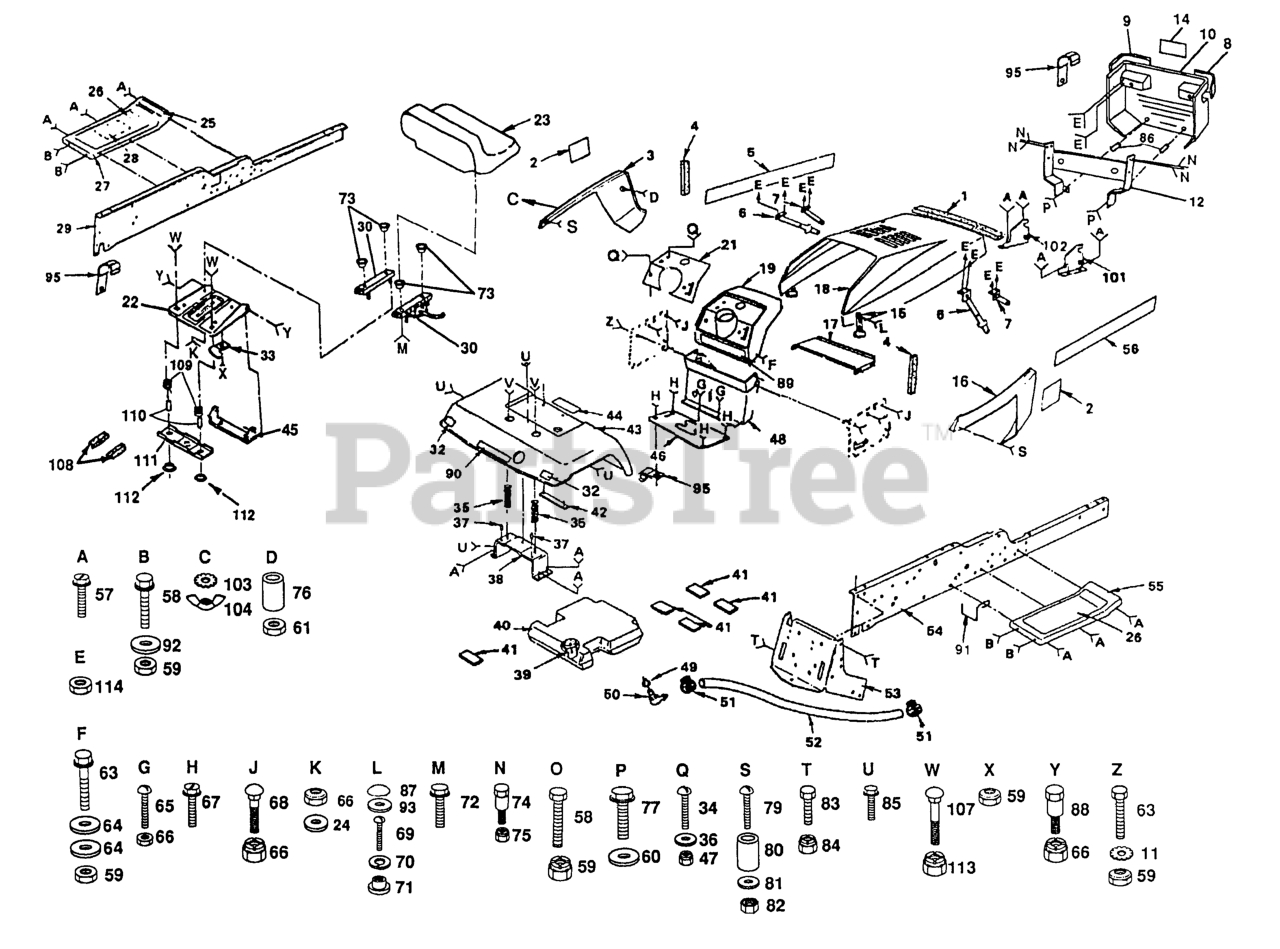

Frame, Fender And Drawbar Parts Diagram

  • Title

1

Husqvarna 532109458

Strip, Foam

$

$

Not available

2

Husqvarna 532124488

Decal-Hood, GTK 18

$

$

Not available

3

Husqvarna 532125009

Panel-Side, L.H.

$

$

Not available

4

Husqvarna 532106088

Strip-Foam

$

$

Not available

5

Husqvarna 532124480

Decal-Hood, L.H.

$

$

Not available

6

Husqvarna 532106784

Strap Assembly-Hinge, Rear

$

$

Not available

7

Husqvarna 532104618

Strap Assembly-Hinge, Front

$

$

Not available

8

Husqvarna 532124251

Lens R.H.
(Superseded to 532157069)

$

$

Not available

9

Husqvarna 532124250

Lens L.H.
(Superseded to 532157068)

$

$

Not available

10

Husqvarna 532124573

Grill Assembly
(Superseded to 532157236)

$

$

Not available

11

Husqvarna 811050600

Washer, Lock Ext. Tooth 3/8
(Superseded to 810040600)

$4.99

$

In Stock, Qty 20+

0

12

Husqvarna 532124574

Support-Grill, R.H.

$

$

Not available

14

Husqvarna 532124483

Decal, Grill, Husqvarna

$

$

Not available

15

Husqvarna 532109808

Latch-Hood

$6.99

$

In Stock, Qty 14

0

16

Husqvarna 532125008

Panel-Side, RH.
(Superseded to 532140677)

$

$

Not available

17

Husqvarna 532007985

Support-Battery

$

$

Not available

18

Husqvarna 532125007

Hood
(Superseded to 532125454)

$

$

Not available

19

Husqvarna 532124182

Dashboard
(Superseded to 532140452)

$

$

Not available

21

Husqvarna 532124772

Dashplate
(Superseded to 532123952)

$

$

Not available

22

Husqvarna 532124294

Pan-Seat

$

$

Not available

23

Husqvarna 532124187

Seat
(Superseded to 532126826)

$188.99

$

Usually ships in 3-10 days

0

24

Husqvarna 819111610

Washer 11/32 x 1 x 10 Ga.

$6.49

$

Usually ships in 3-10 days

0

25

Husqvarna 532101892

Decal-Clutch/Brake

$

$

Not available

26

Husqvarna 532108256

Pad-Footrest

$

$

Not available

27

Husqvarna 532124722

Footrest-L.H.
(Superseded to 532147203)

$

$

Not available

28

Husqvarna 532106868

Decal-Drive Belt Schematic

$

$

Not available

29

Husqvarna 532110893

Rail-Frame-L.H.
(Superseded to 532151630)

$

$

Not available

30

Husqvarna 532124428

Slide, Seat Set

$

$

Not available

32

Husqvarna 532106202

Reflector-Taillight

$

$

Not available

33

Husqvarna 532124996

Clip-Insulated
(Superseded to 532002751)

$

$

Not available

34

Husqvarna 874180512

Screw, Mach. Hd. 5/16 - 18 x 3/4

$

$

Not available

35

Husqvarna 532124181

Spring-Compression
(Superseded to 587613301)

$6.99

$

In Stock, only 4 left!

0

36

Husqvarna 819111116

Washer, 11/32 x 11/16 x 16 Ga
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0

37

Husqvarna 532105531

Nut-Push

$2.99

$

Usually ships in 3-10 days

0

38

Husqvarna 532105509

Bracket-Fender
(Superseded to 532183569)

$14.99

$

Usually ships in 3-10 days

0

39

Husqvarna 532123549

Cap-Fuel
(Superseded to 581075501)

$26.99

$

Usually ships in 3-10 days

0

40

Husqvarna 532106020

Tank-Fuel

$

$

Not available

41

Husqvarna 532106082

Pad-Spacer

$

$

Not available

42

Husqvarna 532105511

Strap-Fender
(Superseded to 532140675)

$6.99

$

Usually ships in 3-10 days

0

43

Husqvarna 532124974

Fender

$

$

Not available

44

Husqvarna 532120822

Decal-Caution

$

$

Not available

45

Husqvarna 532126656

Bracket-Pivot, Seat

$

$

Not available

46

Husqvarna 532124837

Cover, Shift-Gate
(Superseded to 532106042)

$

$

Not available

47

Husqvarna 873510500

Nut, Keps 5/16 - 18
(Superseded to 873680500)

$3.99

$

Usually ships in 3-10 days

0

48

Husqvarna 532104608

Dash Assembly

$

$

Not available

49

Husqvarna 532003645

Bushing

$4.99

$

Usually ships in 3-10 days

0

50

Husqvarna 532008710

Stem-Tank Fuel

$

$

Not available

51

Husqvarna 532123487

Clamp-Hose

$7.49

$

In Stock, only 4 left!

0

52

Husqvarna 532124703

Fuel Line
(Superseded to 532008542)

$

$

Not available

53

Husqvarna 532007982

Drawbar
(Superseded to 532175282)

$

$

Not available

54

Husqvarna 532110892

Rail-Frame-RH
(Superseded to 532150383)

$121.99

$

Usually ships in 3-10 days

0

55

Husqvarna 532125036

Footrest-RH

$

$

Not available

56

Husqvarna 532124481

Decal-Hood RH

$

$

Not available

57

Husqvarna 817490612

Screw-Hex Washer Thread Rolling 3/8-16 x 3/4
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

58

Husqvarna 874760612

Bolt-Hex 3/8-16 x 3/4

$4.99

$

In Stock, only 1 left!

0

59

Husqvarna 873680600

Nut-Lock 3/8-16

$3.99

$

Usually ships in 3-10 days

0

60

Husqvarna 819091216

Washer 9/32 x 3/4 x 16 Ga

$

$

Not available

61

Husqvarna 873220400

Nut-Hex 1/4-20
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

63

Husqvarna 874760616

Bolt-Hex 3/8-16 x 1
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

64

Husqvarna 819131316

Washer 13/32 x 13/16 x 16 Ga.
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

65

Husqvarna 874180512

Screw-Mach, Cr Thrd. 5/16 - 18 x 3/4

$

$

Not available

66

Husqvarna 873680500

Nut-Crownlock 5/16-18
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

67

Husqvarna 817240408

Screw-Hex Washer Thrd Cutting 1/4-20 x 1/2

$7.49

$

Usually ships in 3-10 days

0

68

Husqvarna 872140506

Bolt-Carriage 5/16-18 x 3/4
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

69

Husqvarna 874191008

Screw-Cr. Pan. Mach. No. 10-24 x 1/2
(Superseded to 871191008)

$6.49

$

Usually ships in 3-10 days

0

70

Husqvarna 810071000

Washer, Lock No. 10

$4.99

$

In Stock, Qty 11

0

71

Husqvarna 532125004

Nut-Weld
(Superseded to 596987401)

$3.99

$

In Stock, Qty 20+

0

72

Husqvarna 817190516

Screw-Hex 5/16 - 18 x 1

$

$

Not available

73

Husqvarna 532124427

Spacer

$

$

Not available

74

Husqvarna 532123481

Bolt-Shoulder 1/4-20
(Superseded to 532007605)

$6.49

$

Usually ships in 3-10 days

0

75

Husqvarna 873680400

Nut-Crownlock 1/4-20
(Superseded to 586668901)

$4.99

$

In Stock, Qty 16

0

76

Husqvarna 532001260

Spacer

$

$

Not available

77

Husqvarna 874760424

Bolt, Fin Hex 1/4 - 20 x 1 1/2

$

$

Not available

79

Husqvarna 874981020

Screw-Mach Cr. Pan No. 10-24 x 1-1/4
(Superseded to 874981024)

$9.99

$

In Stock, Qty 9

0

80

Husqvarna 532007206

Spacer-Split No. 10 x 3/4

$7.49

$

In Stock, Qty 6

0

81

Husqvarna 819070818

Washer 7/32 x 1/2 x 18 Ga.

$6.99

$

Usually ships in 3-10 days

0

82

Husqvarna 873731000

Nut-Keps No 10-24
(Superseded to 873271000)

$2.99

$

Usually ships in 3-10 days

0

83

Husqvarna 874760716

Bolt-Hex 7/16-14 x 1
(Superseded to 874780716)

$4.99

$

Usually ships in 3-10 days

0

84

Husqvarna 873680700

Nut-Lock 7/16-14

$2.99

$

Usually ships in 3-10 days

0

85

Husqvarna 817490608

Screw-Hex Washer Thread Rolling 3/8 x 16 x 1/2

$6.49

$

Usually ships in 3-10 days

0

86

Husqvarna 532121249

Spacer

$6.49

$

In Stock, only 2 left!

0

87

Husqvarna 532110356

Cap, Snap

$3.99

$

Usually ships in 3-10 days

0

88

Husqvarna 532105529

Bolt-Shoulder
(Superseded to 532139888)

$6.49

$

In Stock, only 1 left!

0

89

Husqvarna 532108813

Decal-Caution

$

$

Not available

90

Husqvarna 532124484

Decal-Fender

$

$

Not available

91

Husqvarna 532105500

Retainer, Belt, Lower

$

$

Not available

92

Husqvarna 819131312

Washer 13/32 x 13/16 x 17 Ga.
(Superseded to 734117201)

$3.49

$

Usually ships in 3-10 days

0

93

Husqvarna 532110357

Washer, Snap Cap

$

$

Not available

95

Husqvarna 532004171

Clip, Insulated
(Superseded to 532124967)

$

$

Not available

101

Husqvarna 532110853

Bracket Assy Pivot Frame R.H.

$

$

Not available

102

Husqvarna 532110852

Bracket Assy Pivot Frame L.H.

$

$

Not available

103

Husqvarna 811030400

Washer-Lock 1/4-20
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

104

Husqvarna 873490400

Nut Wing 1/4-20
(Superseded to 532146525)

$

$

Not available

106

Husqvarna 819131614

Washer, 13/32 x 1 x 14 Ga.
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

107

Husqvarna 872170410

Bolt-Carr, 1/4-20 x 1-1/4

$4.99

$

Usually ships in 3-10 days

0

108

Husqvarna 532121251

Foam Strip

$

$

Not available

109

Husqvarna 532123740

Spring, Compression

$6.49

$

Usually ships in 3-10 days

0

110

Husqvarna 532121249

Spacer, Slit

$6.49

$

In Stock, only 2 left!

0

111

Husqvarna 532121246

Bracket, Switch Mount
(Superseded to 532174648)

$10.99

$

Usually ships in 3-10 days

0

112

Husqvarna 532121248

Bushing, Snap

$6.49

$

Usually ships in 3-10 days

0

113

Husqvarna 532123976

Nut-Flange Lock 1/4-20
(Superseded to 873900400)

$4.99

$

In Stock, Qty 16

0

114

Husqvarna 873510400

Nut-Hex, 1/4-20
(Superseded to 873680400)

$4.99

$

In Stock, Qty 16

0
