HUV 4421 GXP - Husqvarna 4x4 Utility Vehicle (2009-01) Steering Gear Assembly Parts Diagram

4x4 Utility Vehicle

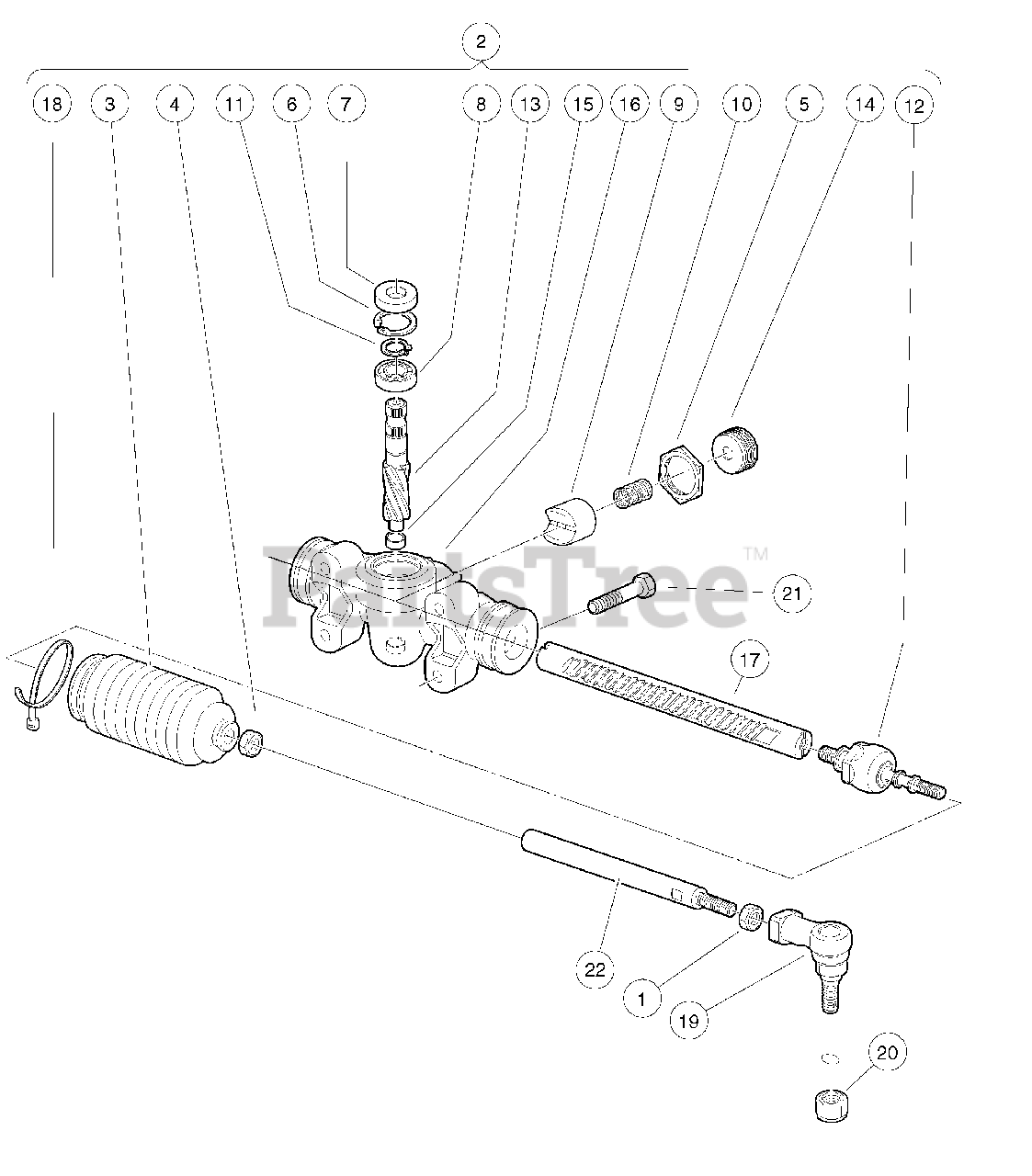

Steering Gear Assembly Parts Diagram

  • Title

1

Husqvarna 1013042

Nut, 12mm Hex

$

$

Currently unavailable

2

Husqvarna 102010102

Steering Rack

Note: (includes items 3 through 18)

$

$

Currently unavailable

3

Husqvarna 1013035

Bellows, Long

$

$

Currently unavailable

4

Husqvarna 1013042

Nut, 12mm Hex

$

$

Currently unavailable

5

Husqvarna 1013044

Rack Screw Locknut

$

$

Currently unavailable

6

Husqvarna 1013051

Snap Ring

$

$

Currently unavailable

7

Husqvarna 1013052

Seal, Steering Pinion Dust

$

$

Currently unavailable

8

Husqvarna 101879401

Bearing, Ball

$

$

Currently unavailable

9

Husqvarna 101879701

Support Yoke

$

$

Currently unavailable

10

Husqvarna 101879801

Rack Guide Pressure Spring

$

$

Currently unavailable

11

Husqvarna 101879901

Ring, Stop, C-Type

$

$

Currently unavailable

12

Husqvarna 101880201

Inner Ball Joint Asm

$

$

Currently unavailable

13

Husqvarna N/A

Pinion, Steering

$

$

Not available

14

Husqvarna N/A

Bearing, Lower Pinion

$

$

Not available

15

Husqvarna N/A

Screw, Rack Guide

$

$

Not available

16

Husqvarna N/A

Housing, Steering Gear

$

$

Not available

17

Husqvarna N/A

Rack, Steering

$

$

Not available

18

Husqvarna 8990

Tie Wrap, 8" Nylon

$

$

Currently unavailable

19

Husqvarna 102022601

End, Tie Rod M12 X 1.25

$

$

Currently unavailable

20

Husqvarna 102022901

Locknut, M12-1.25 Nylon

$

$

Currently unavailable

21

Husqvarna 102687801

Bolt, Flange Head, M10x 1.5 X 40 with Loctite

$

$

Currently unavailable

22

Husqvarna 102816801

Link, Drag, Wt

$

$

Currently unavailable
