HUV 4421 GXP - Husqvarna 4x4 Utility Vehicle (2009-01) Injection Pump Parts Diagram

4x4 Utility Vehicle

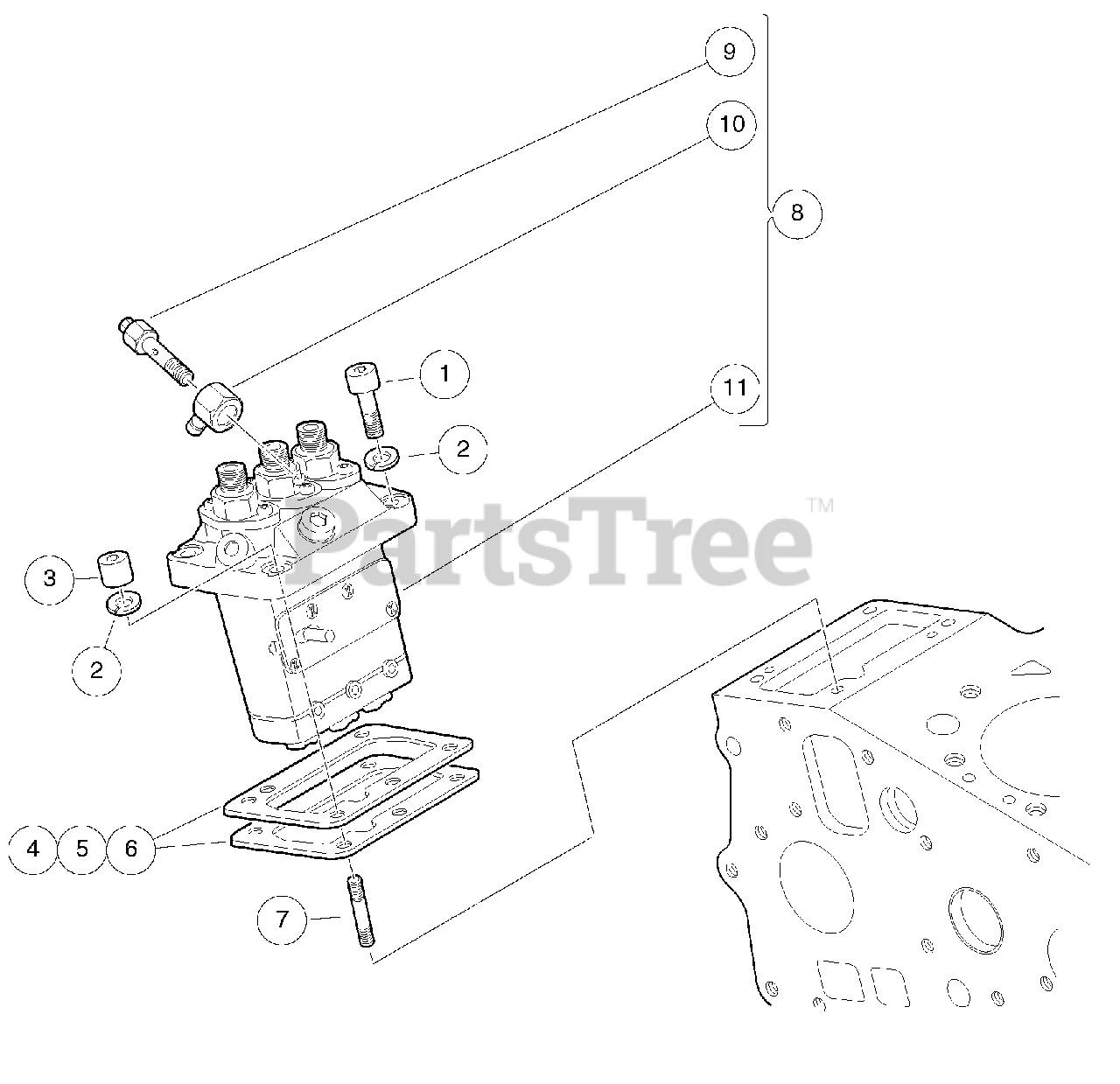

Injection Pump Parts Diagram

  • Title
1

Husqvarna 102640501

Bolt, Hex-Head, M5 X 0.75

$

$

Currently unavailable

2

Husqvarna 102640601

Washer, Spring, M6, D722

$

$

Currently unavailable

3

Husqvarna 102640701

Nut, Special

$

$

Currently unavailable

4

Husqvarna 102640901

Shim, Injection Pump, 0.20 mm

$

$

Currently unavailable

5

Husqvarna 102641001

Shim, Injection Pump, 0.25 mm

$

$

Currently unavailable

6

Husqvarna 102641101

Shim, Injection Pump, 0.30 mm

$

$

Currently unavailable

7

Husqvarna 102641201

Stud, M5 X 25

$

$

Currently unavailable

8

Husqvarna 102800101

Assembly, Fuel Injection Pump

Note: (includes items 9 through 11)

$

$

Currently unavailable

9

Husqvarna N/A

Screw, Hollow, D722, Inj Pump

$

$

Not available

10

Husqvarna 102640401

Joint, Eye

$

$

Currently unavailable

11

Husqvarna N/A

Pump, Injection

$

$

Not available
