HUV 4421 GXP - Husqvarna 4x4 Utility Vehicle (2009-01) Fuel System - Diesel Parts Diagram

4x4 Utility Vehicle

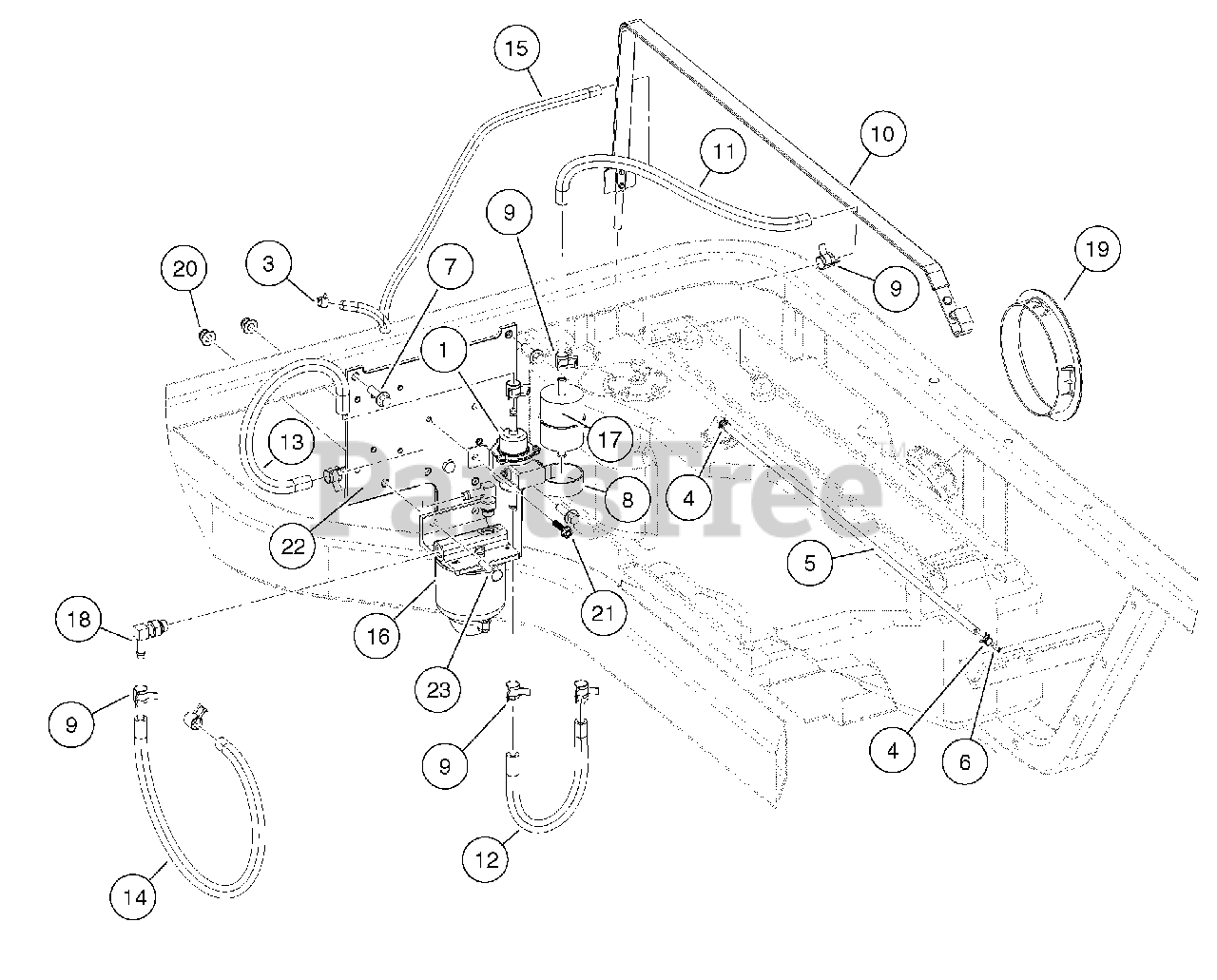

Fuel System - Diesel Parts Diagram

  • Title

1

Husqvarna 102410801

Pump, Diesel Fuel Electric

$

$

Currently unavailable

2

Husqvarna N/A

Asm, Fuel System, Kubota

Note: (includes items 3 through 23)

$

$

Not available

3

Husqvarna 101313402

Clamp, Green Hose

$

$

Currently unavailable

4

Husqvarna 1013746

Clamp, 0.301 ID Hose

$

$

Currently unavailable

5

Husqvarna 101587703

Hose, Fuel, Vent, 22" Long

$

$

Currently unavailable

6

Husqvarna 101824401

Vent Barb

$

$

Currently unavailable

7

Husqvarna 102289001

Screw, M8X1.25X30, Hex

$

$

Currently unavailable

8

Husqvarna 102410602

P-Clamp, Insulated 1.75 In

$

$

Currently unavailable

9

Husqvarna 102411203

Clamp, Hose, Ctb 14mm

$

$

Currently unavailable

10

Husqvarna 102426301

Strap, Tank, Fuel

$

$

Currently unavailable

11

Husqvarna 102430001

Hose, Tank To Prefilter Diesel

$

$

Currently unavailable

12

Husqvarna 102430101

Hose, Fuel Prefilter To Pump

$

$

Currently unavailable

13

Husqvarna 102430201

Hose, Fuel Pump To Filter

$

$

Currently unavailable

14

Husqvarna 102430301

Hose, Fuel Filter To Eng

$

$

Currently unavailable

15

Husqvarna 102430401

Hose, Fuel Return

$

$

Currently unavailable

16

Husqvarna 102434601

Filter Assy, Fuel

$

$

Currently unavailable

17

Husqvarna 102434701

Filter, Fuel

$

$

Currently unavailable

18

Husqvarna 102434801

Adapter, 90, 5/16 Tube

$

$

Currently unavailable

19

Husqvarna 102466201

Bezel, Fuel Fill

$

$

Currently unavailable

20

Husqvarna 102618601

Lock Nut, Flg M8 X 1.25 Nylon

$

$

Currently unavailable

21

Husqvarna 102670801

Screw, M6 X 1 X 25 Thd Form

$

$

Currently unavailable

22

Husqvarna 102710301

Plate, Fuel/Oil System

$

$

Currently unavailable

23

Husqvarna 96705587

Bolt, M8 X 1.25 X 30

$

$

Currently unavailable
