HUV 4421 GXP - Husqvarna 4x4 Utility Vehicle (2009-01) 60-AMP Alternator Parts Diagram

4x4 Utility Vehicle

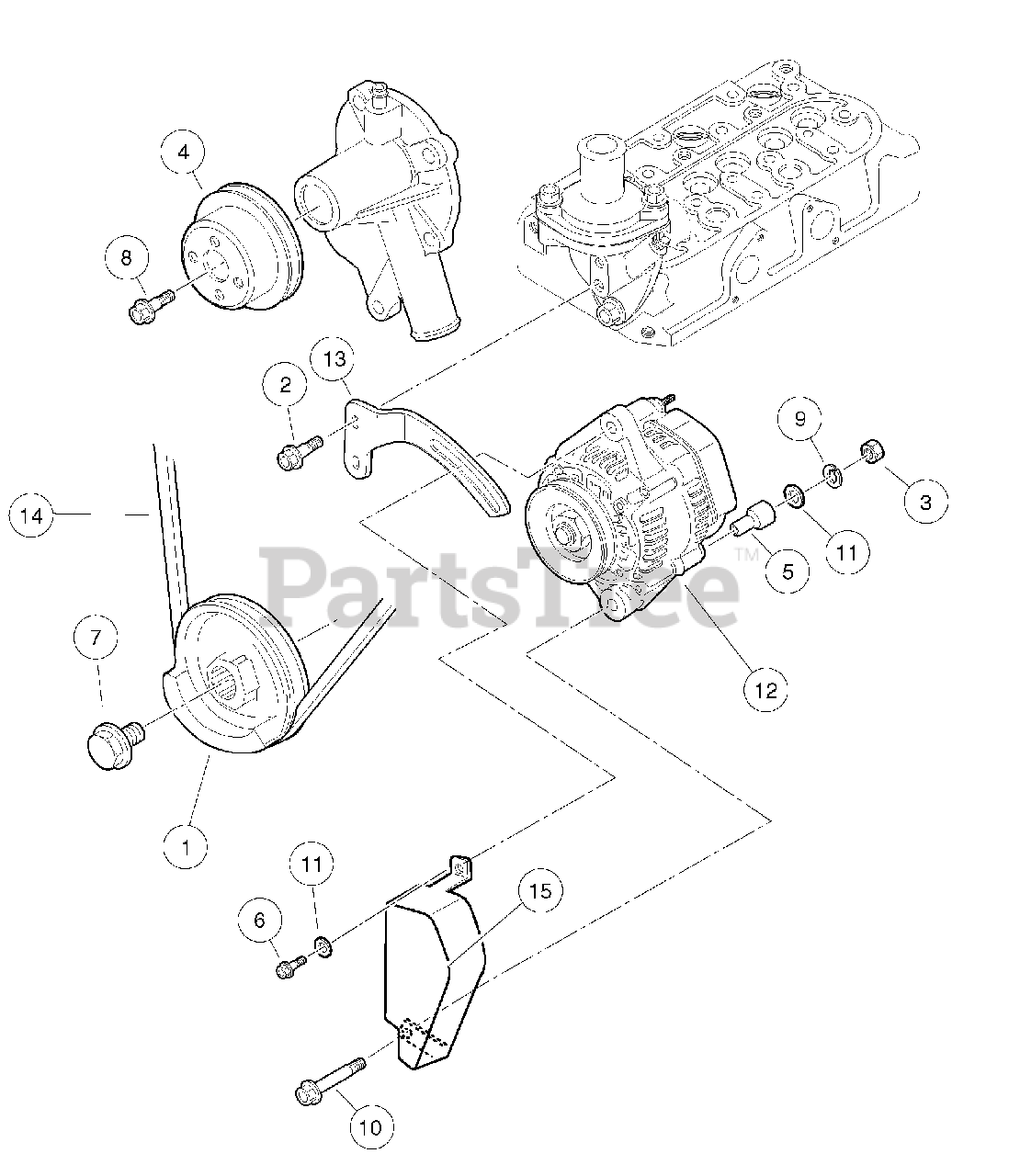

60-AMP Alternator Parts Diagram

  • Title
1

Husqvarna 102630601

Pulley, Fan Drive

$

$

Currently unavailable

2

Husqvarna 102631601

Bolt, M6 X 1 X 20

$

$

Currently unavailable

3

Husqvarna 102647701

Nut, M8, Plate

$

$

Currently unavailable

4

Husqvarna 102701201

Pulley, Water Pump

$

$

Currently unavailable

5

Husqvarna 102730201

Collar, Alternator Assy, D722

$

$

Currently unavailable

6

Husqvarna 102730401

Bolt, Alt, D722, Adjuster

$

$

Currently unavailable

7

Husqvarna 102730601

Bolt, Alt, D722, Drive Pulley

$

$

Currently unavailable

8

Husqvarna 102731301

Bolt, D722, Drive Pulley

$

$

Currently unavailable

9

Husqvarna 102732501

Washer, Spring, D722, Starter

$

$

Currently unavailable

10

Husqvarna 102800701

Bolt, Alternator, Lower

$

$

Currently unavailable

11

Husqvarna 102801001

Washer, Alternator, Upper

$

$

Currently unavailable

12

Husqvarna 102934701

Alternator, 60 Amp

$

$

Currently unavailable

13

Husqvarna 102934801

Brkt, Alt, D722, 60 Amp

$

$

Currently unavailable

14

Husqvarna 102934901

Belt, Acc Drive, D722, 60 Amp

$

$

Currently unavailable

15

Husqvarna 103239901

Guard, Acc Belt

$

$

Currently unavailable
