HUV 4421 GXP - Husqvarna 4x4 Utility Vehicle (2008-01) Seat Belts and Lowers ROPS Parts Diagram

4x4 Utility Vehicle

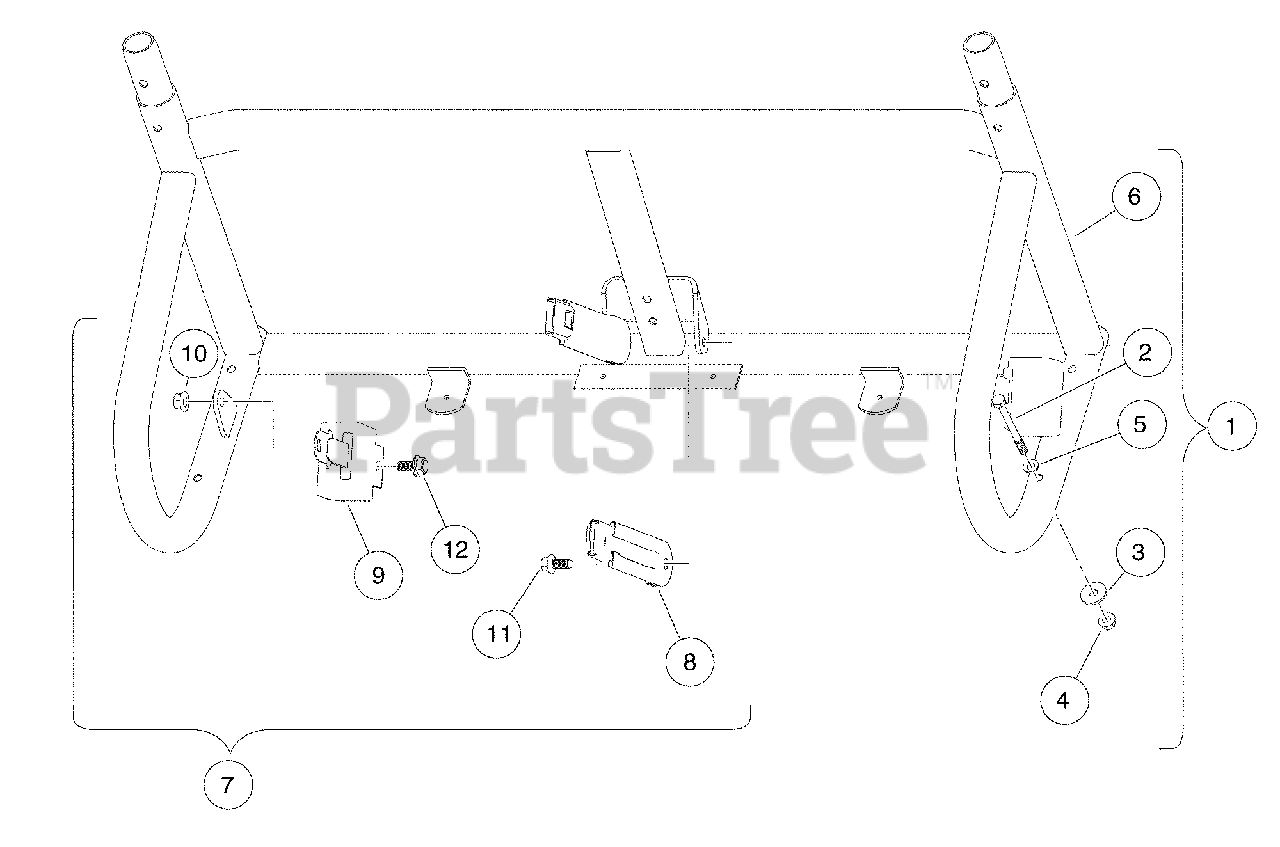

Seat Belts and Lowers ROPS Parts Diagram

  • Title
1

Instl, Rops, Lower

Note: (includes items 2 through 6)

$

$

Not available

2

Husqvarna 603001759

Bolt, M10x1.50x100 (Black)

$

$

Not available

3

Husqvarna 603001174

Washer Hard,m10

$

$

Not available

4

Husqvarna 603001300

Nut Flg M10 X 1.5 Mech Def

$

$

Not available

5

Husqvarna 603001673

Washer, Hard, M10, Zn-Ni/Blk

$

$

Not available

6

Husqvarna 603004409

Weldment,seat Support,hs,rops

$

$

Not available

7

Instl, Seat Belt, Restyle

Note: (includes items 8 through 12)

$

$

Not available

8

Husqvarna 603001065

Buckle, Seat Belt with Sleeve

$

$

Not available

9

Husqvarna 603001066

Retractor, Seat Belt
(Superseded to 603001065)

$

$

Not available

10

Husqvarna 603003472

Ln Flg, M12 X 1.75, Md, Black

$

$

Not available

11

Husqvarna 603001589

Screw,m12x1.75x30 Thd Form Blk

$

$

Not available

12

Husqvarna 531308398

Bolt Flg, M12x1.75 X 25 Black

$

$

Not available
