HUV 4421 GXP - Husqvarna 4x4 Utility Vehicle (2007-01) Forward and Reverse Shifter Assembly Parts Diagram

4x4 Utility Vehicle

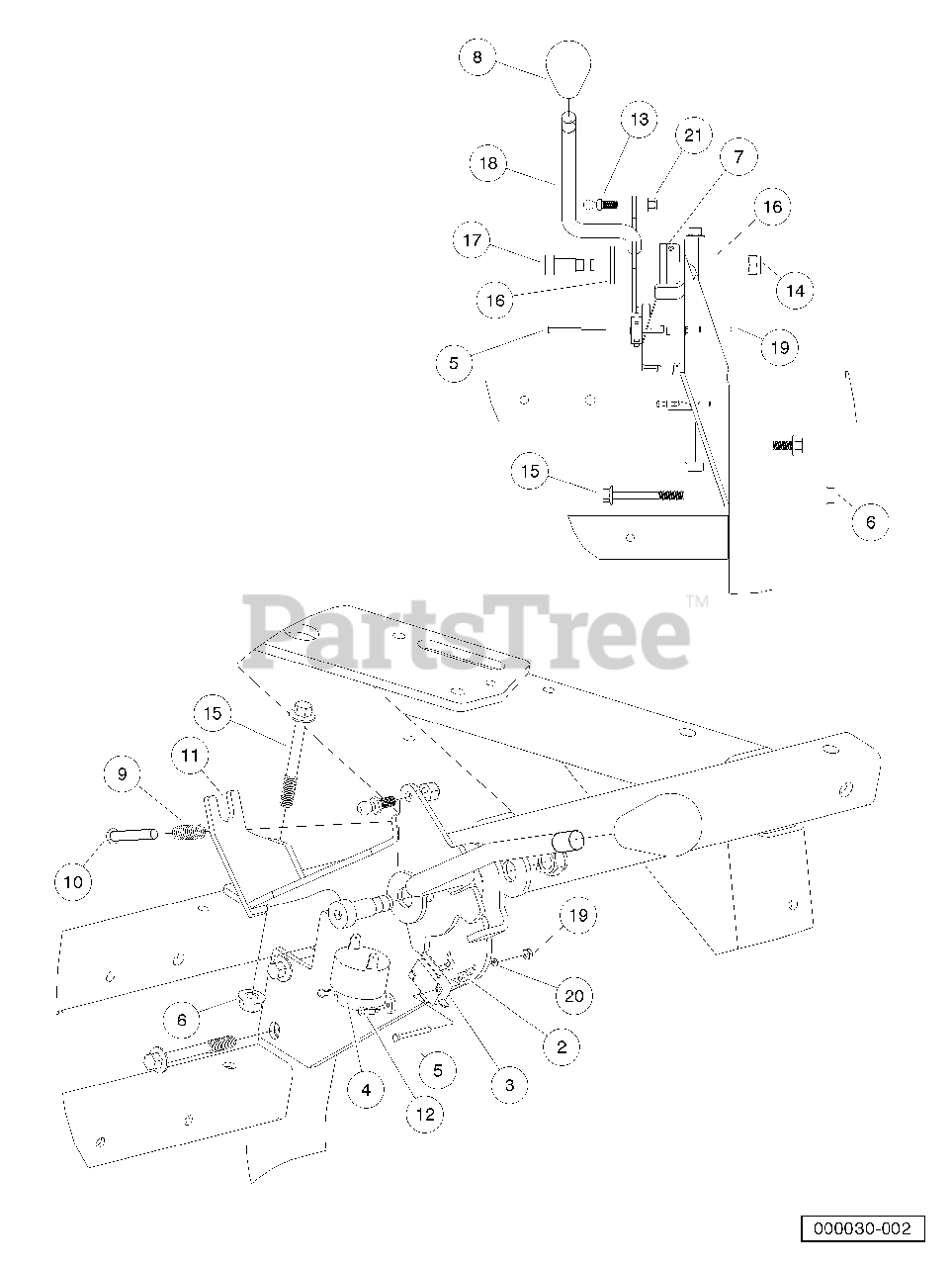

Forward and Reverse Shifter Assembly Parts Diagram

  • Title

1

Husqvarna 603003561

Asm, FNR

Note: (includes items 2 through 21)

$

$

Not available

2

Husqvarna 603000234

Washer, #4 Nylon Flat

$

$

Not available

3

Husqvarna 603000236

Switch, Limit

$

$

Not available

4

Husqvarna 603000371

Buzzer, Reverse

Note: (9-48 VDC)

$

$

Not available

5

Husqvarna 603000376

Screw, #4-40 X 1.125 Hx Hd Mch

$

$

Not available

6

Husqvarna 603001298

Nut,m8,all Metal Lock

$2.49

$

In Stock, Qty 11

0

7

Husqvarna 603000923

Bushing, Fnr

$

$

Not available

8

Husqvarna 603000924

Knob, Fnr

$

$

Not available

9

Spring, Stop, Pedal

$

$

Not available

10

Bolt, Stop, Pedal

$

$

Not available

11

Weldment, FNR Shifter Bracket

$

$

Not available

12

Rivet, Micro Tuflok

$

$

Not available

13

Husqvarna 603001288

Stud, Ball, .346 Dia

$

$

Not available

14

Husqvarna 603001295

Locknut, M10x1.5 Nylon Insert

$

$

Not available

15

Husqvarna 603001306

Bolt Flanged Head, M8 X 1.25 X 65

$

$

Not available

16

Husqvarna 603001599

Washer, M12 Hard Regular

$

$

Not available

17

Husqvarna 603001600

Shoulder Bolt,m12 X 20 M10 Thd

$

$

Not available

18

Husqvarna 603003560

Weldment, FNR Shifter

$

$

Not available

19

Husqvarna 603000086

Nut, #4-40 Hex Machine

$

$

Not available

20

Husqvarna 603000087

Lockwasher, #4 Helical Split

$

$

Not available

21

Husqvarna 603000094

Locknut, 1/4-28 Nylon Insert

$

$

Not available
