HUV 4421 GXP - Husqvarna 4x4 Utility Vehicle (2006-11) Bench Seat Conversion Kit Parts Diagram

4x4 Utility Vehicle

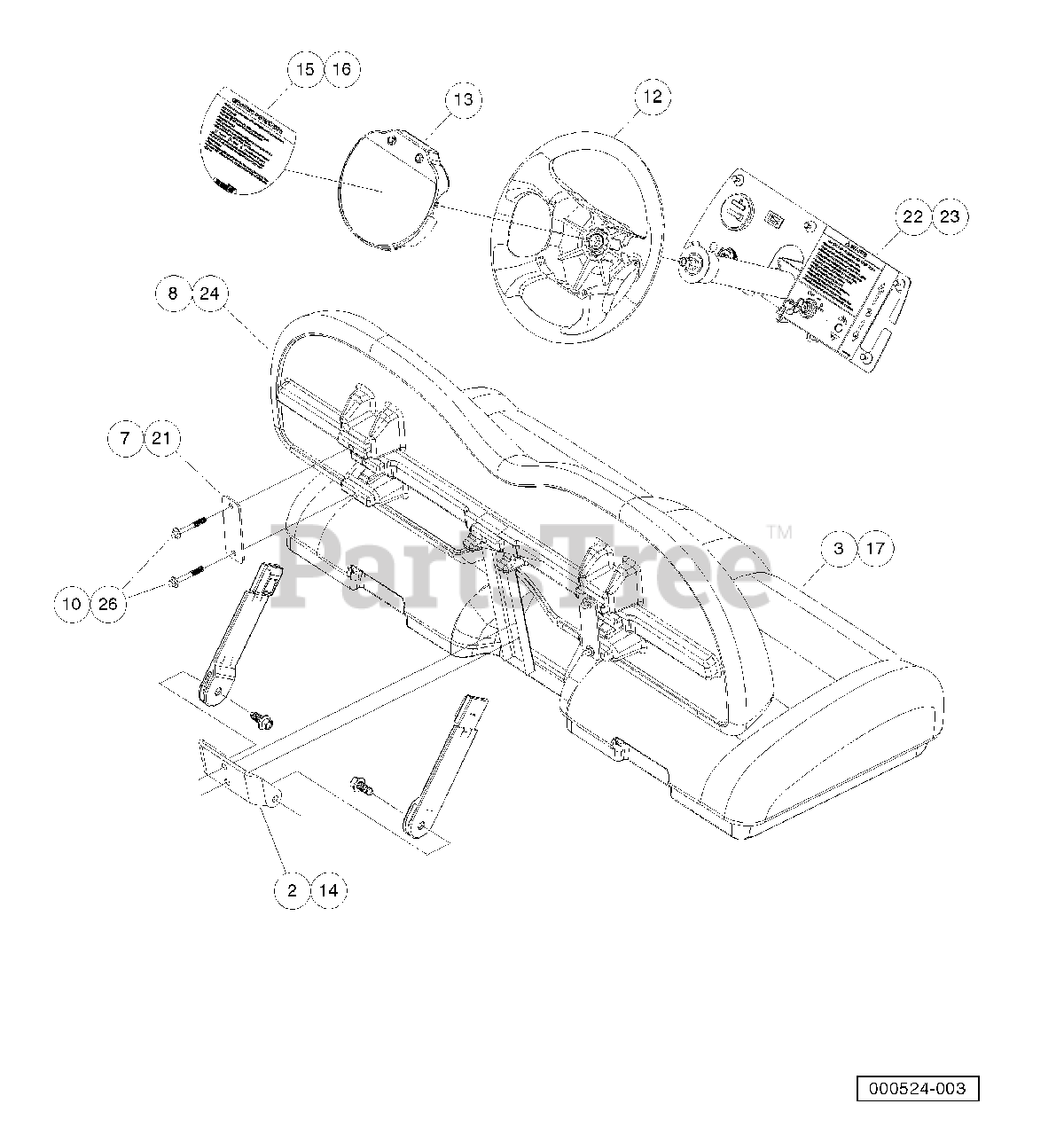

Bench Seat Conversion Kit Parts Diagram

  • Title
1

Husqvarna 531308122

Kit, Bench Seat, Seat Only

Note: (includes items 2 through 10)

$

$

Not available

2

Husqvarna 531308118

Bracket, Seat Belt, Bench

$

$

Not available

3

Husqvarna 531308123

Asm, Seat Bottom, Bench, Gray
(Superseded to 574503301)

Note: (includes items 4 through 6)

$

$

Not available

4

Husqvarna 603000125

Hinge Plate

$

$

Not available

5

Asm, Seat Bottom, Bench

$

$

Not available

6

Husqvarna 603003457

Bolt Flg Blk, M8 X 25, Loctite

$

$

Not available

7

Husqvarna 531308121

Bracket, Seat Back, AWD

$

$

Not available

8

Husqvarna 531308120

Seat Back, Bench, Gray
(Superseded to 574503301)

$

$

Not available

9

Husqvarna 603003471

Instructions, Bench Seat

$

$

Currently unavailable

10

Husqvarna 531307417

Bolt Flg Blk, M8 X 55, Loctite

$

$

Not available

11

Husqvarna 531308124

Kit, Bench Seat, Complete

Note: (includes items 12 through 26)

$

$

Not available

12

Steering Wheel, Comfort Grip, Hex

$

$

Not available

13

Husqvarna 603003469

Center, Plate, Steering Wheel

$

$

Not available

14

Husqvarna 531308118

Bracket, Seat Belt, Bench

$

$

Not available

15

Husqvarna 531307136

Decal, Oper Instr, Awd Se Dsl

$

$

Not available

16

Husqvarna 603003470

Decal, Oper Instr, Awd Se Gas

$

$

Not available

17

Husqvarna 531308123

Asm, Seat Bottom, Bench, Gray
(Superseded to 574503301)

Note: (includes items 18 through 20)

$

$

Not available

18

Husqvarna 603000125

Hinge Plate

$

$

Not available

19

Asm, Seat Bottom, Bench

$

$

Not available

20

Husqvarna 603003457

Bolt Flg Blk, M8 X 25, Loctite

$

$

Not available

21

Husqvarna 531308121

Bracket, Seat Back, AWD

$

$

Not available

22

Husqvarna 531307125

Decal, Warning, Iinstrument Panel, AWD Gas

$

$

Not available

23

Husqvarna 531307146

Decal, Warning, Iinstrument Panel, AWD Diesel

$

$

Not available

24

Husqvarna 531308120

Seat Back, Bench, Gray
(Superseded to 574503301)

$

$

Not available

25

Husqvarna 603003471

Instructions, Bench Seat

$

$

Currently unavailable

26

Husqvarna 531307417

Bolt Flg Blk, M8 X 55, Loctite

$

$

Not available
