HUV 4421 GXL - Husqvarna 4x4 Utility Vehicle (2009-01) Valves And Rocker Arms Parts Diagram

4x4 Utility Vehicle

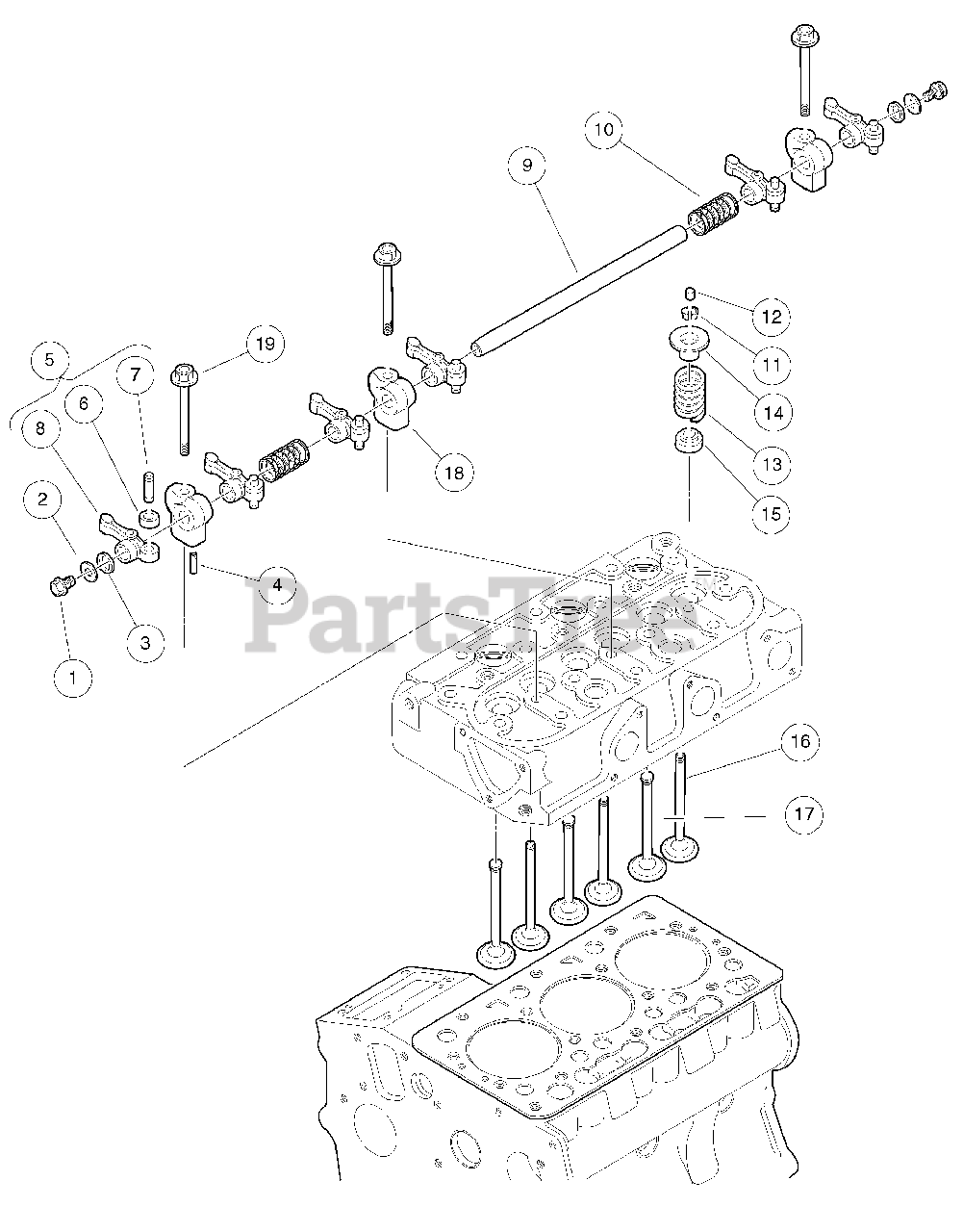

Valves And Rocker Arms Parts Diagram

  • Title
1

Husqvarna 102646401

Bolt, M6 X 1 X 8

$

$

Currently unavailable

2

Husqvarna 102651301

Washer, D722, Plain, Rocker

$

$

Currently unavailable

3

Husqvarna 102651601

Washer, Rocker Arm

$

$

Currently unavailable

4

Husqvarna 102651801

Pin, Spring, D722, Rocker

$

$

Currently unavailable

5

Husqvarna 102652001

Assy Rocker Arm

Note: (includes items 6 through 8)

$

$

Currently unavailable

$

$

Currently unavailable

7

Husqvarna 102651701

Screw-Adjusting

$

$

Currently unavailable

8

Husqvarna N/A

Arm, Rocker

$

$

Not available

9

Husqvarna 102652601

Shaft, Rocker Arm

$

$

Currently unavailable

10

Husqvarna 102652701

Spring, Rocker Arm

$

$

Currently unavailable

11

Husqvarna 102652901

Collet, Valve Spring, Set

$

$

Currently unavailable

12

Husqvarna 102653001

Cap, Valve, D722

$

$

Currently unavailable

13

Husqvarna 102653101

Spring, Valve

$

$

Currently unavailable

14

Husqvarna 102653201

Retainer, Spring

$

$

Currently unavailable

15

Husqvarna 102653301

Seal, Valve Stem

$

$

Currently unavailable

16

Husqvarna 102653601

Valve, Exhaust

$

$

Currently unavailable

17

Husqvarna 102653701

Valve, Inlet

$

$

Currently unavailable

18

Husqvarna 102801101

Bracket, Rocker Arm, D722 Closed-Breather

$

$

Currently unavailable

19

Husqvarna 102801201

Bolt, Rocker Arm

$

$

Currently unavailable
