HUV 4421 GXL - Husqvarna 4x4 Utility Vehicle (2009-01) Transmission-Diesel Vehicles Parts Diagram

4x4 Utility Vehicle

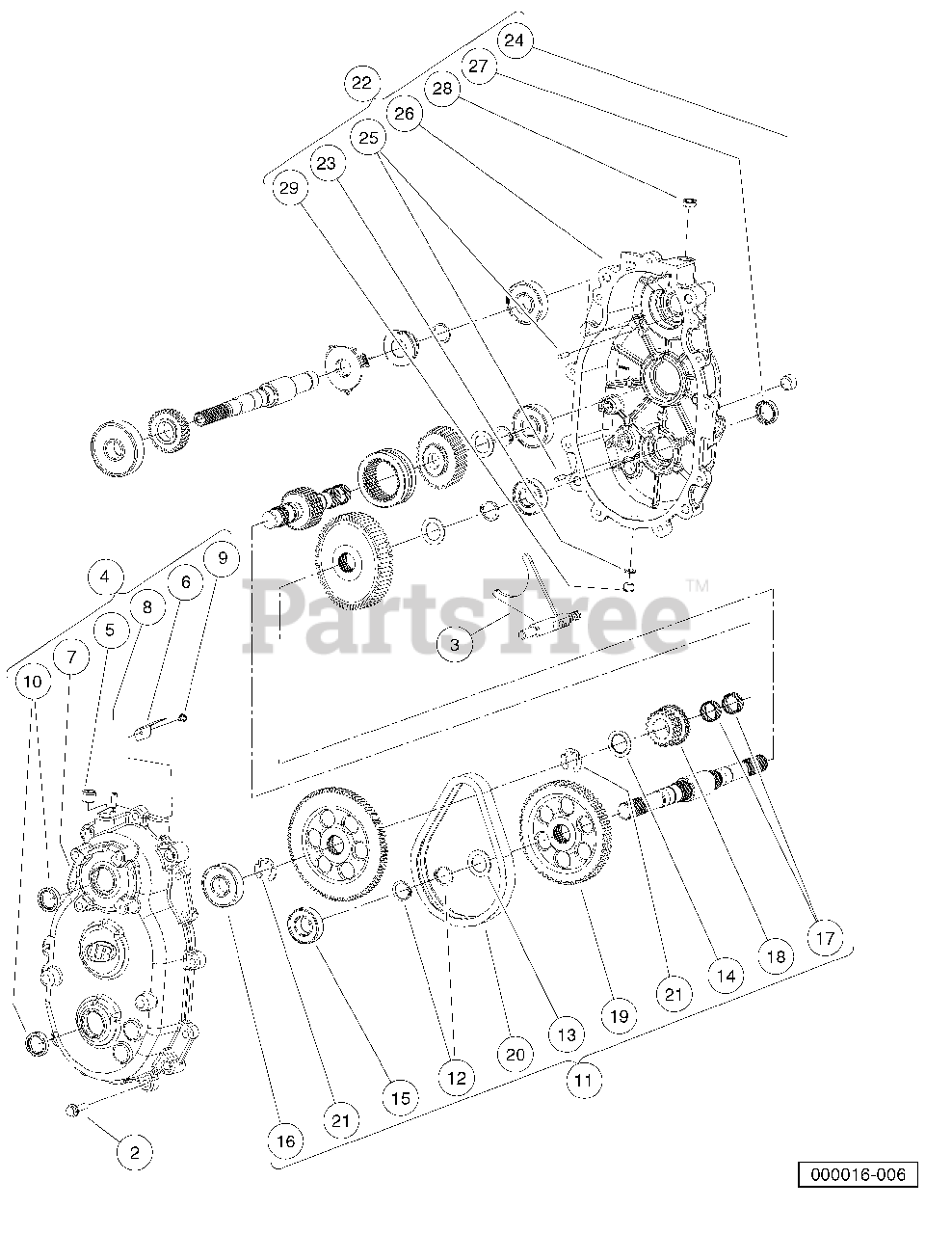

Transmission-Diesel Vehicles Parts Diagram

  • Title
1

Husqvarna 102943201

Transmission, Diesel, Parallel Shaft

Note: (includes items 2 through 22)

$

$

Currently unavailable

2

Husqvarna 102693301

Screw,hex Flange, M8 X 35

$

$

Currently unavailable

3

Husqvarna 102697801

Fork, Transmission

$

$

Currently unavailable

4

Husqvarna 102764201

Asm, Gear Case, Rear

Note: (includes items 5 through 10)

$

$

Currently unavailable

5

Husqvarna 102694201

Plug, Square Skt, 1/12-14, Ptf

$

$

Currently unavailable

6

Husqvarna 102696301

Oil, Deflector

$

$

Currently unavailable

7

Husqvarna N/A

Gearcase, Rear

$

$

Not available

8

Husqvarna 102698301

Vent, Trans

$

$

Currently unavailable

9

Husqvarna 102698901

Screw, Tapping # 10-24 X .375

$

$

Currently unavailable

10

Husqvarna 102699401

Seal, Triple, 25 X 35 X 7.8

$

$

Currently unavailable

11

Husqvarna 102765201

Kit, Reverse Gear Repair

Note: (includes items 12 through 21)

$

$

Currently unavailable

12

Husqvarna 102696201

Ring, Retaining, Basic External

$

$

Currently unavailable

13

Husqvarna 102696501

Washer, Thrust, 1.007 X .062

$

$

Currently unavailable

14

Husqvarna 102696701

Washer, 26.231 X 39.167 X 1.57

$

$

Currently unavailable

15

Husqvarna 102696801

Bearing, Ball

$

$

Currently unavailable

16

Husqvarna 102696901

Bearing, Ball

$

$

Currently unavailable

17

Husqvarna 102697101

Bearing, Needle

$

$

Currently unavailable

18

Husqvarna N/A

Sprocket, 19-Tooth

$

$

Not available

19

Husqvarna N/A

Sprocket, 51-Tooth

$

$

Not available

20

Husqvarna N/A

Chain, .375p, .75 Wide, 60ptch

$

$

Not available

21

Husqvarna 102699701

Ring, Retaining, E-Ring

$

$

Currently unavailable

22

Husqvarna 103250301

Asm, Case, Gear, Front

Note: (includes items 23 through 29)

$

$

Currently unavailable

23

Husqvarna 102693501

Washer, .625 X .382 X .60

$

$

Currently unavailable

24

Husqvarna 102694201

Plug, Square Skt, 1/12-14, Ptf

$

$

Currently unavailable

25

Husqvarna 102696101

Pin, Dowel, 6 X 20

$

$

Currently unavailable

26

Husqvarna N/A

Gearcase, Front

$

$

Not available

27

Husqvarna 102699401

Seal, Triple, 25 X 35 X 7.8

$

$

Currently unavailable

28

Husqvarna 102721501

Seal, Dual-Lip

$

$

Currently unavailable

29

Husqvarna 103250401

Plug, 3/4-16

$

$

Currently unavailable
