HUV 4421 GXL - Husqvarna 4x4 Utility Vehicle (2009-01) Transmission Parts Diagram

4x4 Utility Vehicle

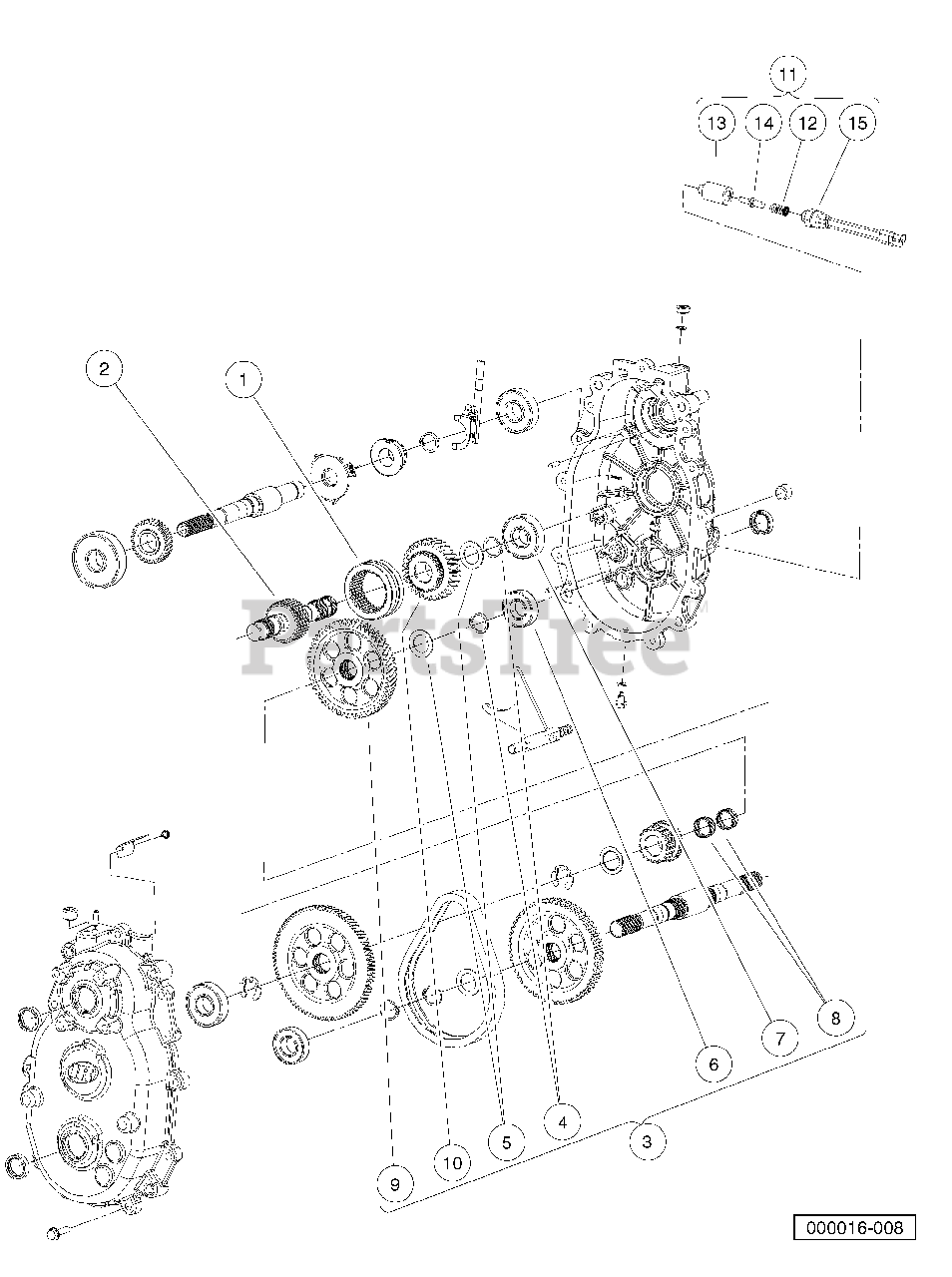

Transmission Parts Diagram

  • Title
1

Husqvarna 102697501

Dog, Engagement

$

$

Currently unavailable

2

Husqvarna 102698701

Shaft, Intermediate

$

$

Currently unavailable

3

Husqvarna 102764901

Kit, Forward Gear Repair

Note: (includes items 4 through 10)

$

$

Currently unavailable

4

Husqvarna 102696201

Ring, Retaining, Basic External

$

$

Currently unavailable

5

Husqvarna 102696501

Washer, Thrust, 1.007 X .062

$

$

Currently unavailable

6

Husqvarna 102696801

Bearing, Ball

$

$

Currently unavailable

7

Husqvarna 102696901

Bearing, Ball

$

$

Currently unavailable

8

Husqvarna 102697101

Bearing, Needle

$

$

Currently unavailable

9

Husqvarna N/A

Gear, Helical 58-Tooth

$

$

Not available

10

Husqvarna N/A

Gear, Helical 34-Tooth

$

$

Not available

11

Husqvarna 102765101

Kit, Neutral Switch Repair

Note: (includes items 12 through 15)

$

$

Currently unavailable

12

Husqvarna N/A

Spring, .484 X .340 X 1.076

$

$

Not available

13

Husqvarna N/A

Guide, Detent Bullet

$

$

Not available

14

Husqvarna N/A

Bullet, Detent

$

$

Not available

15

Husqvarna N/A

Switch, Indicator, Pollak

$

$

Not available
