HUV 4421 GXL - Husqvarna 4x4 Utility Vehicle (2009-01) Shock Absorbers-High Capacity Parts Diagram

4x4 Utility Vehicle

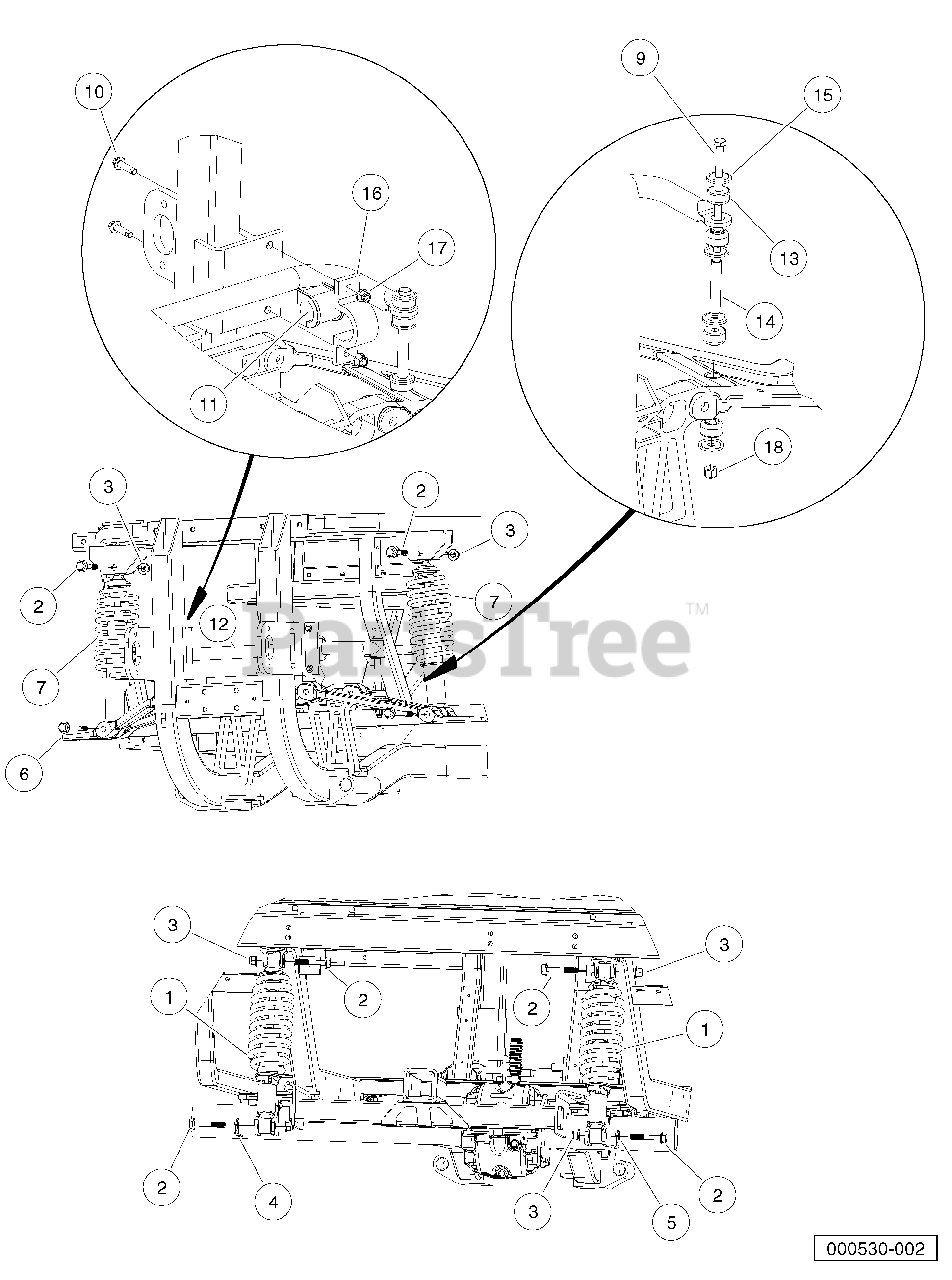

Shock Absorbers-High Capacity Parts Diagram

  • Title

1

Husqvarna 102365602

Shock, Coil Over, Rear HD

$

$

Currently unavailable

2

Husqvarna 102616301

Bolt, Flange Head, M12 X 1.75 X 70

$

$

Currently unavailable

3

Husqvarna 102620501

Nut Flg, M12x1.75, Nylon Gr 10

$

$

Currently unavailable

4

Husqvarna 102689101

Brkt, Line, Hyd, Shk Mnt, Drv

$

$

Currently unavailable

5

Husqvarna 102689102

Brkt, Line, Hyd, Shk Mnt, Pass

$

$

Currently unavailable

6

Husqvarna 102788701

Bolt Flg, M12x1.75x100, Patch

$

$

Currently unavailable

7

Husqvarna 102792101

Asm, Coil & Shock, Frt

$

$

Currently unavailable

8

Husqvarna N/A

Instl, Bar, Antisway, Wide Frt

Note: (includes items 9 through 18)

$

$

Not available

9

Husqvarna 1016183

Screw, 3/8-16 X 7.00 Hex Cap

$

$

Currently unavailable

10

Husqvarna 102298130

Bolt, Flange Head, M8 X 30.0

$

$

Currently unavailable

11

Husqvarna 102446601

Bushing, Anti-Sway Bar, 1-1/8

$

$

Currently unavailable

12

Husqvarna 102464601

Bar, Sway, Formed

$

$

Currently unavailable

13

Husqvarna 102470101

Bushing, Link

$

$

Currently unavailable

14

Husqvarna 102470501

Sleeve, Link

$

$

Currently unavailable

15

Husqvarna 102470601

Washer, Cup, Bushing

$

$

Currently unavailable

16

Husqvarna 102495001

Bracket, Anti-Sway Bar

$

$

Currently unavailable

17

Husqvarna 102618601

Lock Nut, Flg M8 X 1.25 Nylon

$

$

Currently unavailable

18

Husqvarna 8754

Locknut, 3/8-16 Hex

$

$

Currently unavailable
