HUV 4421 GXL - Husqvarna 4x4 Utility Vehicle (2009-01) Rear Brake Assembly Parts Diagram

4x4 Utility Vehicle

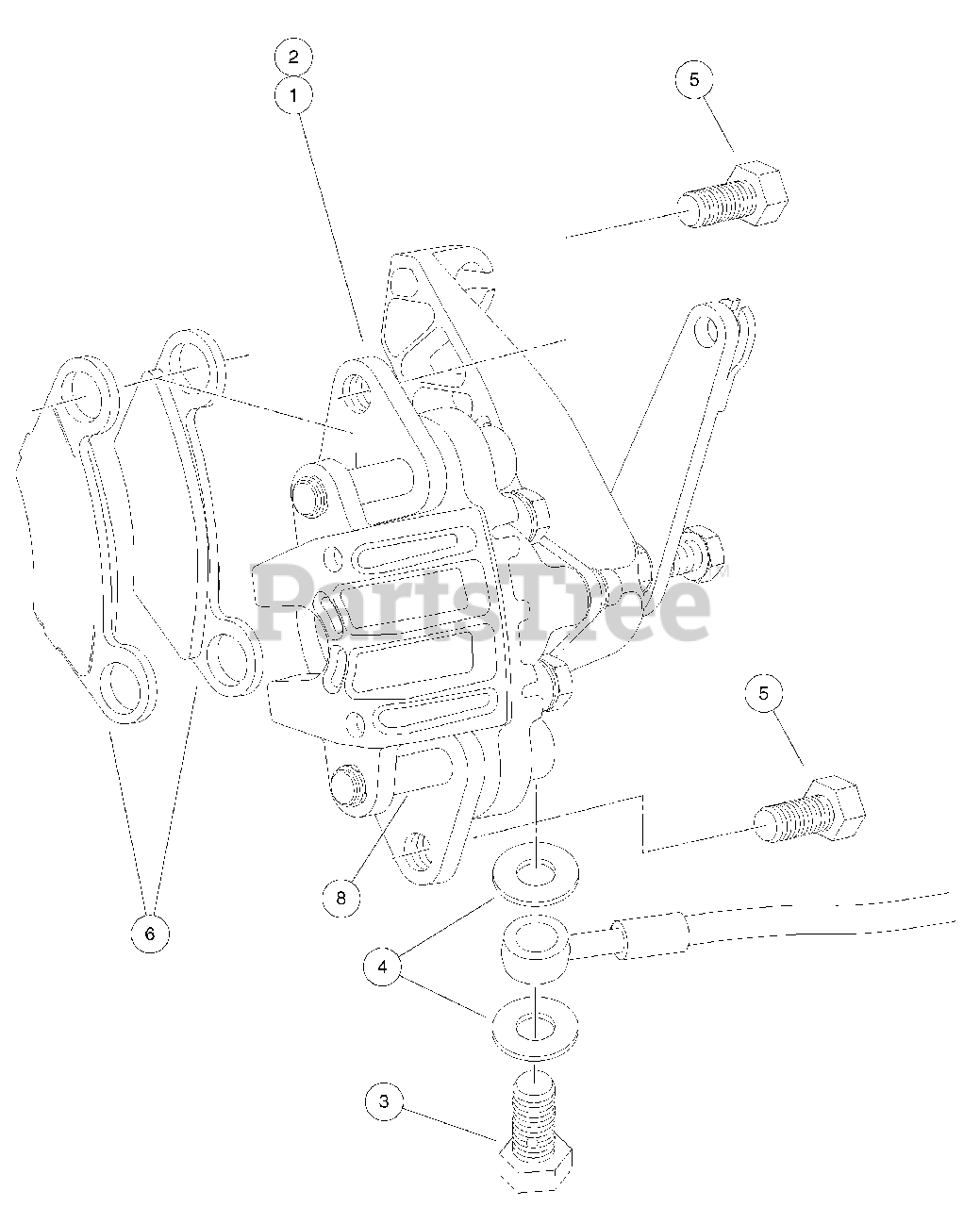

Rear Brake Assembly Parts Diagram

  • Title
1

Husqvarna 102399201

Caliper, Brake, Hydro-Mechanical, LH

$

$

Currently unavailable

2

Husqvarna 102399202

Caliper, Brake, Hydro-Mechanical, RH

$

$

Currently unavailable

3

Husqvarna 102488001

Bolt, Banjo, M10x1x19

$

$

Currently unavailable

4

Husqvarna 102491601

Washer, Copper, M10 Crush

$

$

Currently unavailable

5

Husqvarna 102493301

Bolt Flange Head, 3/8-24x.750 with Loctite

$

$

Currently unavailable

6

Husqvarna 102714001

Service Kit, Brake Pad (4 Pads)

$

$

Currently unavailable

7

Husqvarna 103418701

Spring, Brake Caliper Return

$

$

Currently unavailable

8

Husqvarna 103418801

Pin, Slide, 7/16

$

$

Currently unavailable
