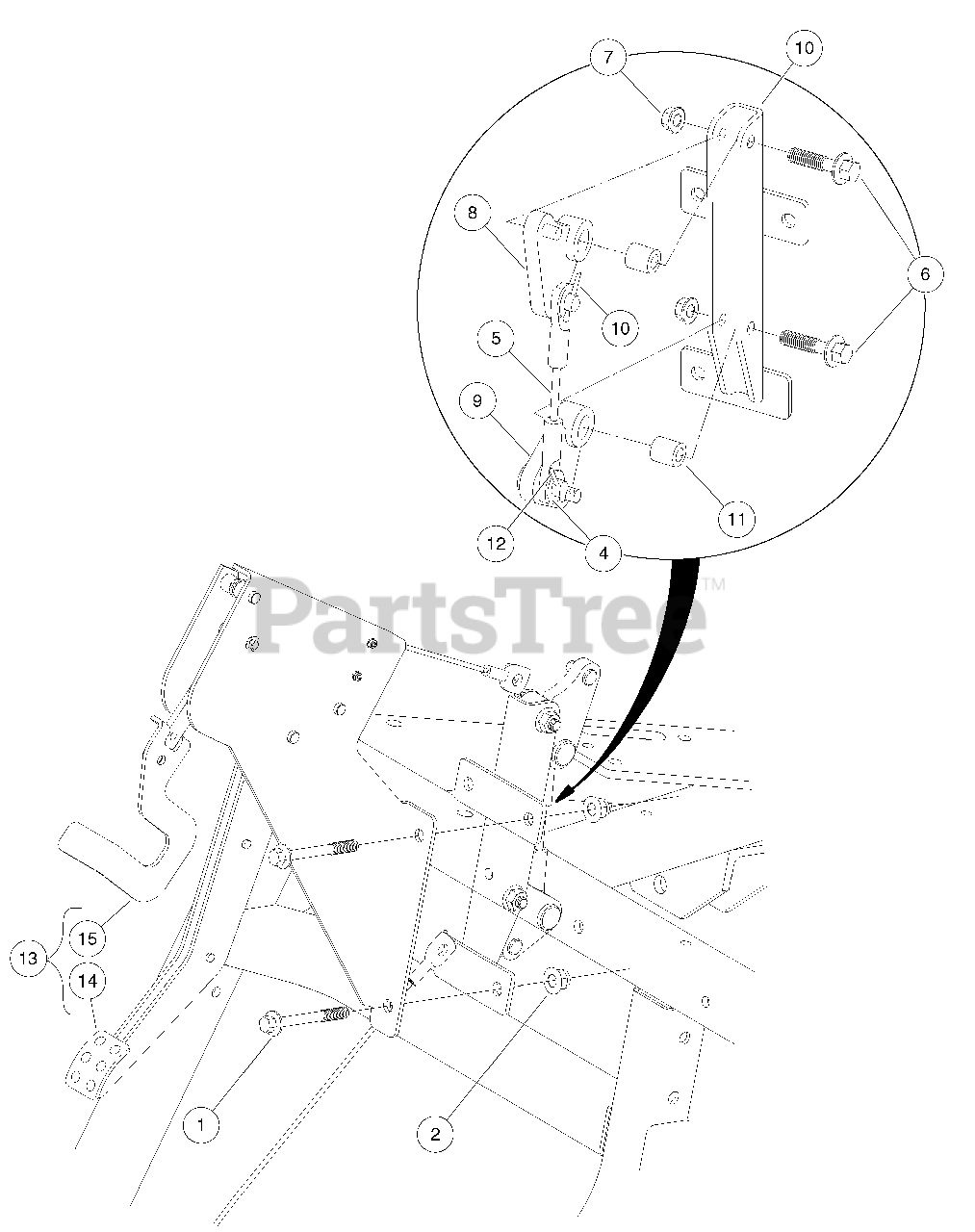

HUV 4421 GXL - Husqvarna 4x4 Utility Vehicle (2009-01) Park Brake Pedal Assembly Parts Diagram

4x4 Utility Vehicle

Park Brake Pedal Assembly Parts Diagram

  • Title

1

Husqvarna 102618301

Bolt Flanged Head, M8 X 1.25 X 65

$

$

Currently unavailable

2

Husqvarna 102618601

Lock Nut, Flg M8 X 1.25 Nylon

$

$

Currently unavailable

3

Husqvarna 102751501

Asm, Sub, Bracket, Park Brake

Note: (includes items 4 through 12)

$

$

Currently unavailable

4

Husqvarna 102323501

Washer, Flat, 3/8, Blk Fin

$

$

Currently unavailable

5

Husqvarna 102716001

Cable, Crank, Bell

$

$

Currently unavailable

6

Husqvarna 102741501

Bolt Flg, M8x1.25 X 35, Gr10.9

$

$

Currently unavailable

7

Husqvarna 102741601

Nut Flg M8 X 1.25 Gr 10

$

$

Currently unavailable

8

Husqvarna 102751301

Asm, Bellcrank, Upper

$

$

Currently unavailable

9

Husqvarna 102751401

Asm, Bellcrank, Lower

$

$

Currently unavailable

10

Husqvarna 103305001

Brkt, Bellcrank, Prk Brk, Awd

$

$

Currently unavailable

11

Husqvarna 103305101

Spacer, Pivot, Park Brk, Awd

$

$

Currently unavailable

12

Husqvarna 1035

Cotter Pin, 3/32 x 1

$

$

Currently unavailable

13

Husqvarna 102892401

Asm, Pedal, Brake, Hard

Note: (includes items 14 and 15)

$

$

Currently unavailable

14

Husqvarna N/A

Pedal, Brake, Park

$

$

Not available

15

Husqvarna 102896601

Handle, Release, Park Brake

$

$

Currently unavailable
