HUV 4421 GXL - Husqvarna 4x4 Utility Vehicle (2009-01) Master Cylinder with Remote Reservior Parts Diagram

4x4 Utility Vehicle

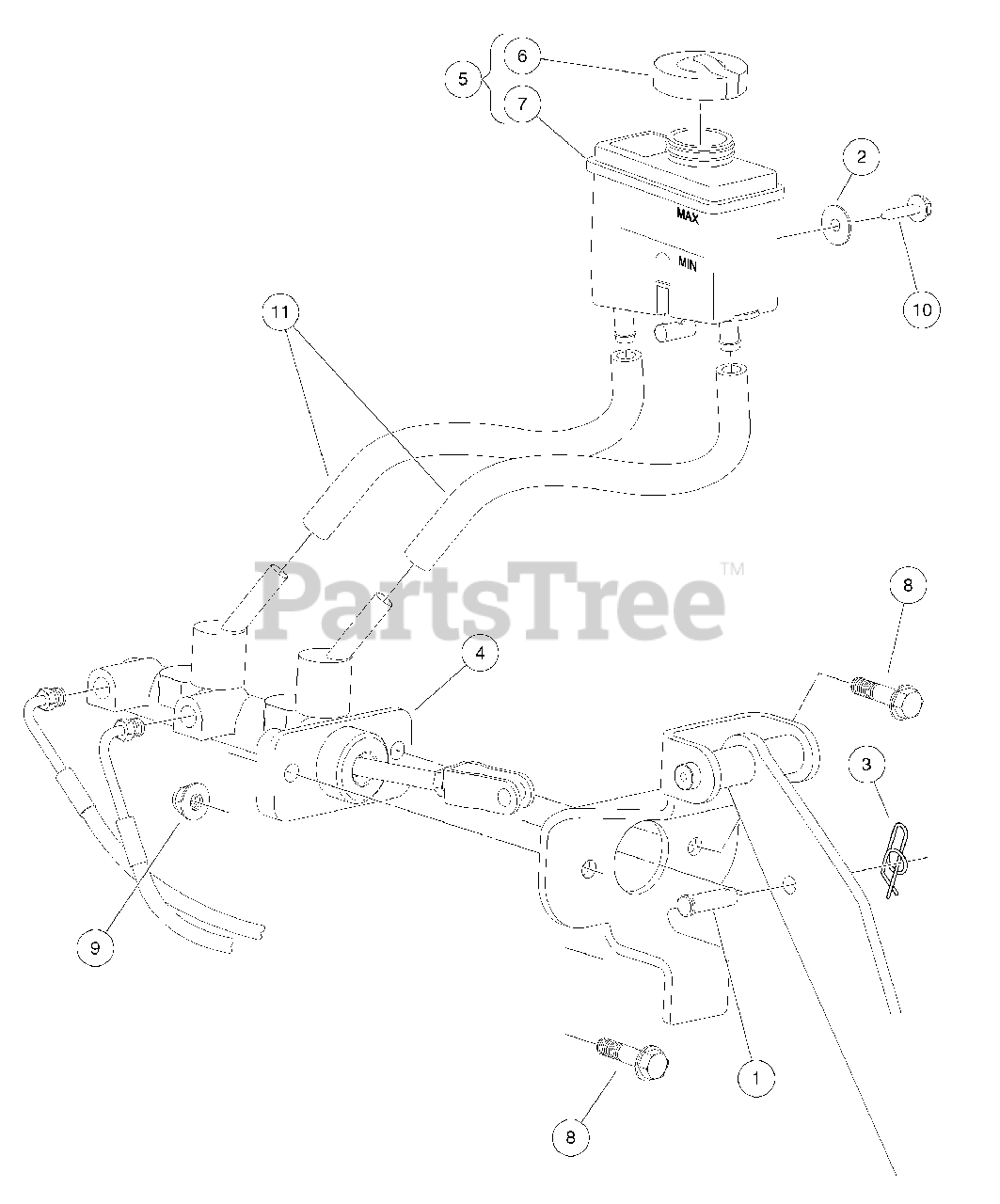

Master Cylinder with Remote Reservior Parts Diagram

  • Title
1

Husqvarna 101082903

Clevis Pin, 5/16 X 1

$

$

Currently unavailable

2

Husqvarna 1014306

Washer, 1/4" Type B Flat

$

$

Currently unavailable

3

$

$

Currently unavailable

4

Husqvarna 102402801

Cylinder, Master, Tandem

$

$

Currently unavailable

5

Husqvarna 102402901

Assembly, Reservoir, Remote

Note: (includes items 6 and 7)

$

$

Currently unavailable

6

Husqvarna 102051401

Filler Cap Asm

$

$

Currently unavailable

7

Husqvarna N/A

Reservoir, Brake Fluid, Without Cap

$

$

Not available

8

Husqvarna 102618401

Bolt Flanged Head, M8 X 1.25 X 35

$

$

Currently unavailable

9

Husqvarna 102618601

Lock Nut, Flg M8 X 1.25 Nylon

$

$

Currently unavailable

10

Husqvarna 103218213

Screw, #10x3.50 Ab Thd, Hex Hd

$

$

Currently unavailable

11

Husqvarna 103293201

Hose, Reservoir, Brake Fluid

$

$

Currently unavailable
