HUV 4421 GXL - Husqvarna 4x4 Utility Vehicle (2009-01) Maintenance And Service Tools - Gas Parts Diagram

4x4 Utility Vehicle

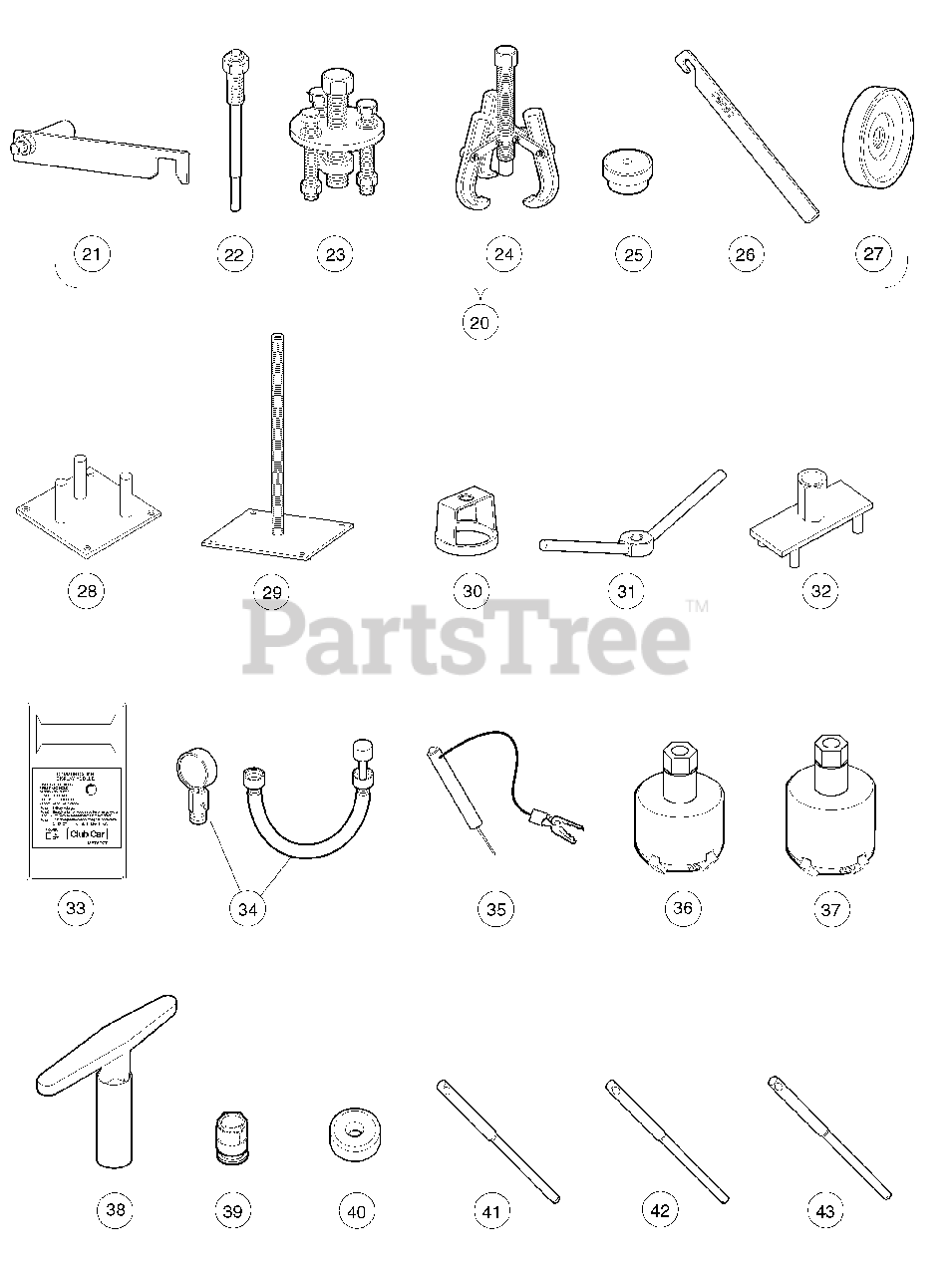

Maintenance And Service Tools - Gas Parts Diagram

  • Title

20

Husqvarna 1014510

Clutch Tool Kit

Note: (includes items 21 - 27)

$

$

Currently unavailable

21

Husqvarna 1014498

Clutch Alignment Tool

Note: (for pre-unitized transaxle vehicles built prior to 1997 model year)

$

$

Currently unavailable

22

Husqvarna 1014496

Drive Clutch Puller

Note: (for Kawasaki engines only)

$

$

Currently unavailable

23

Husqvarna 1014497

Drive Clutch Hub Puller

Note: (for Kawasaki engines only)

$

$

Currently unavailable

24

Husqvarna 1014508

Driven Clutch Cam Puller

Note: (for Kawasaki engines only)

$

$

Currently unavailable

25

Husqvarna 1014507

Driven Clutch Puller Plug

Note: (for Kawasaki engines only)

$

$

Currently unavailable

26

Husqvarna 1015524

Drive Clutch Holder Tool Assembly

Note: (for Kawasaki engines only)

$

$

Currently unavailable

27

Husqvarna 101809101

Press Weldment

Note: (for Kawasaki engines only)

$

$

Currently unavailable

28

Husqvarna 102601501

Drive ClutchFixed Sheave Tool (for 4x4 vehicles)

$

$

Currently unavailable

29

Husqvarna 102603501

Driven Clutch Spring Compression Base (for use with items 30 and 31) (for 4x4 vehicles)

$

$

Currently unavailable

30

Husqvarna 102605201

Driven Clutch Spring Compression Collar (for use with items 29 and 31) (for 4x4 vehicles)

$

$

Currently unavailable

31

Husqvarna 102606101

Driven Clutch Spring Compression Nut (for use with items 29 and 30) (for 4x4 vehicles)

$

$

Currently unavailable

32

Husqvarna 102607501

Drive Clutch Spider Removal Tool (for 4x4 vehicles)

$

$

Currently unavailable

33

Husqvarna 101831801

Communication Display Module

$

$

Currently unavailable

34

Husqvarna 101641002

Compression Gauge and Adapter

$

$

Currently unavailable

35

Husqvarna 1011273

Continuity Tester

$

$

Currently unavailable

36

Husqvarna 102773801

Cutter, Valve Seat, #122

$

$

Currently unavailable

37

Husqvarna 102773901

Cutter, Valve Seat #115

$

$

Currently unavailable

38

Husqvarna 102774101

Wrench, T, #505

$

$

Currently unavailable

39

Husqvarna 102774101

Adapter, T-Wrench

$

$

Currently unavailable

40

Husqvarna 102675401

Cutter, Valve Seat, 60 Degree (requires item 51) (for Honda GX620 Gasoline Engines)

$

$

Currently unavailable

41

Husqvarna 102774201

Pilot, 6.6 MM

$

$

Currently unavailable

42

Husqvarna 102774301

Pilot, 6.62 MM

$

$

Currently unavailable

43

Husqvarna 102774401

Pilot, 6.65 MM

$

$

Currently unavailable
