HUV 4421 GXL - Husqvarna 4x4 Utility Vehicle (2009-01) Kubota D722 Diesel Engine Mounting Parts Diagram

4x4 Utility Vehicle

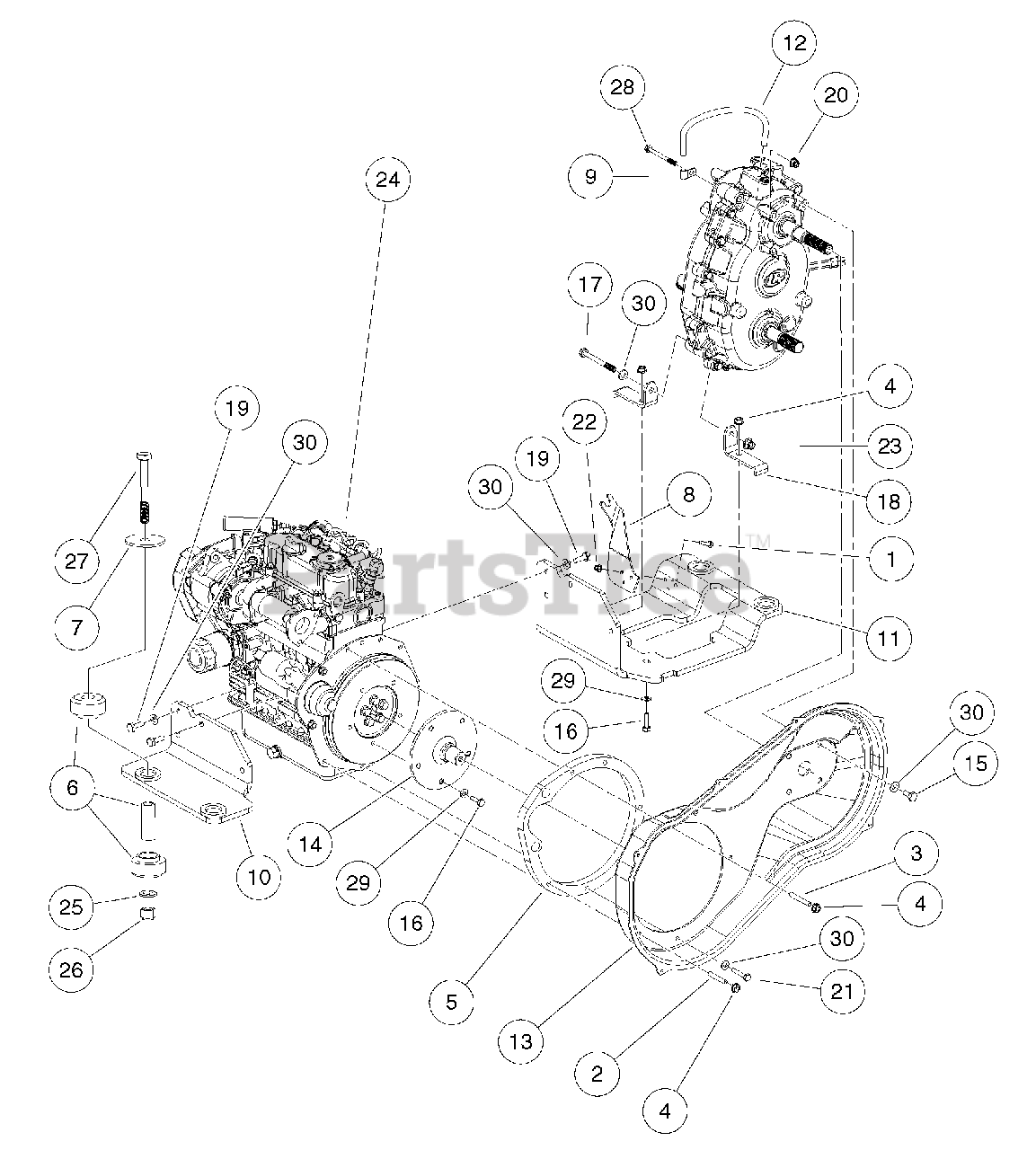

Kubota D722 Diesel Engine Mounting Parts Diagram

  • Title

1

Husqvarna 1012769

Screw, M6-1.00 X 25mm Hex Cap

$

$

Currently unavailable

2

Husqvarna 101833101

Stud, M8-1.25 X 50 mm Two-Ended

$

$

Currently unavailable

3

Husqvarna 101833201

Stud, M8-1.25 X 60mm Two-Ended

$

$

Currently unavailable

4

Husqvarna 102298401

Nut,m8,all Metal Lock

$

$

Currently unavailable

5

Husqvarna 102370101

Spacer, Engine, Diesel

$

$

Currently unavailable

6

Husqvarna 102370501

Isolator Ring and Bushing

$

$

Currently unavailable

7

Husqvarna 102370601

Washer, Snubbing, Ring N Bush

$

$

Currently unavailable

8

Husqvarna 102382401

Bracket, FNR Trans Cable

$

$

Currently unavailable

9

Husqvarna 102410603

P-Clamp, Insulated .312 In

$

$

Currently unavailable

10

Husqvarna 102414701

Plate, Engine Mounting, Weld, Left-Hand

$

$

Currently unavailable

11

Husqvarna 102414801

Plate, Engine Mounting, Weld, Right-Hand

$

$

Currently unavailable

12

Husqvarna 102462301

Hose, Vent, Transmission

$

$

Currently unavailable

13

Husqvarna 102462501

Cover, CVT Inner, Diesel

$

$

Currently unavailable

14

Husqvarna 102465901

Shaft, CVT Adapter

$

$

Currently unavailable

15

Husqvarna 102490101

Bolt, M10 X 1.5 X 20 Loctite

$

$

Currently unavailable

16

Husqvarna 102490201

Bolt, M8 X 1.25 X 25 Loctite

$

$

Currently unavailable

17

Husqvarna 102490501

Bolt, M10 X 1.5 X 100 Loctite

$

$

Currently unavailable

18

Husqvarna 102494401

Bracket, Transmission Mounting

$

$

Currently unavailable

19

Husqvarna 102498201

Bolt, M10 X 1.25 X 25 Loctite

$

$

Currently unavailable

20

Husqvarna 102618601

Lock Nut, Flg M8 X 1.25 Nylon

$

$

Currently unavailable

21

Husqvarna 102621301

Bolt, M8 X 1.25 X 40 with Loctite

$

$

Currently unavailable

22

Husqvarna 102621501

Nut Flg, M6 X 1.0 Nylon

$

$

Currently unavailable

23

Husqvarna 102670701

Nut Flg M10 X 1.5 Nylon

$

$

Currently unavailable

24

Husqvarna 102934601

Engine, Kubota, D722, with Closed Breather, 60a

$

$

Currently unavailable

25

Husqvarna 96701412

Washer, M12 Hard

$

$

Currently unavailable

26

Husqvarna N/A

Locknut, M12x1.75 Nylon Insert

$

$

Not available

27

Husqvarna 96704721

Bolt, M12 X 1.75 X 90

$

$

Currently unavailable

28

Husqvarna 96718978

Bolt, M8 X 1.25 X 80

$

$

Currently unavailable

29

Husqvarna 96741038

Washer, M8 Hard

$

$

Currently unavailable

30

Husqvarna 96741046

Washer, M10 Hard

$

$

Currently unavailable
